FSV-35 and FSV-85 Sonars
FSV-35 and FSV-85 Sonars

Furuno Full-Circle Color Scanning Sonar

The FSV Series of Furuno Scanning Sonar provides reliable and consistent detection of fish and seabed conditions by using enhanced signal processing technology.

To make operations even easier while underway, it is possible to assign frequently used features to the FSV-35/85’s dedicated Function keys. Preset modes are also provided for instant setup of the equipment.

Features :

  • Dual Monitors.
    The FSV-35/85 has an ability to use a dual monitor setup to extend the sonar display across two screens.
  • Horizontal Display Combinations (H2 mode).
    The horizontal display mode provides a 360-degree picture around the vessel.
  • Slant Mode Scan (For FSV-85 only).
    The slant mode provides a half-circle (180 degree) picture with the ship at the centre.
  • Horizontal And Vertical Display Combinations.
    A horizontal and two vertical scans can be displayed simultaneously. By utilising both scans, the skipper can locate a school of fish and its distribution in horizontal and vertical perspectives at the same time.

Models :

  • FSV-35 Low Frequency 24 kHz
  • FSV-85 Middle Frequency 80 kHz

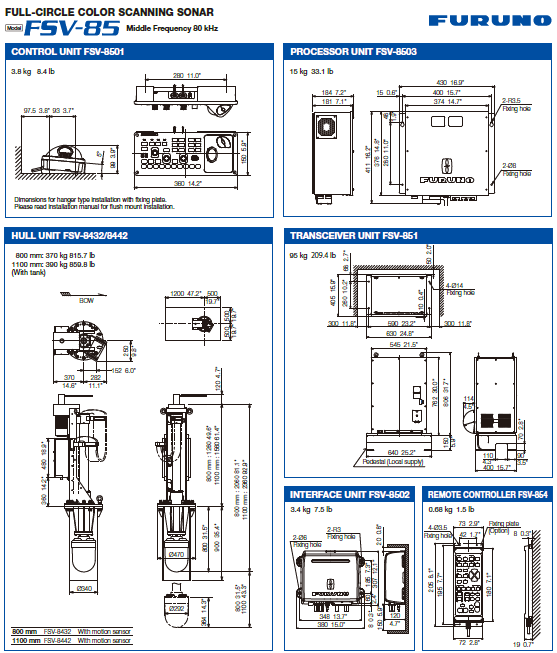

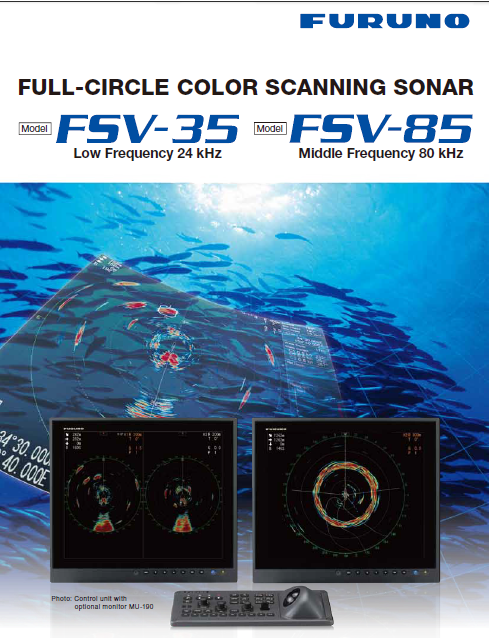

FULL-CIRCLE COLOR SCANNING SONAR FURUNO
FULL-CIRCLE COLOR SCANNING SONAR FURUNO
FULL-CIRCLE COLOR SCANNING SONAR FURUNO
FULL-CIRCLE COLOR SCANNING SONAR FURUNO

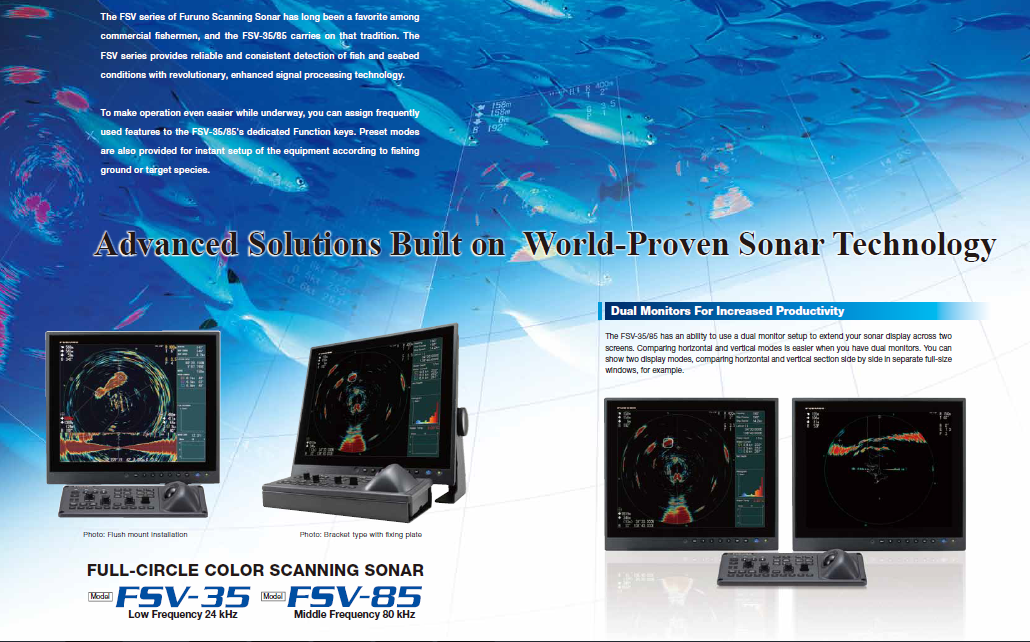

Advanced Solutions Built on World-Proven Sonar Technology
Advanced Solutions Built on World-Proven Sonar Technology

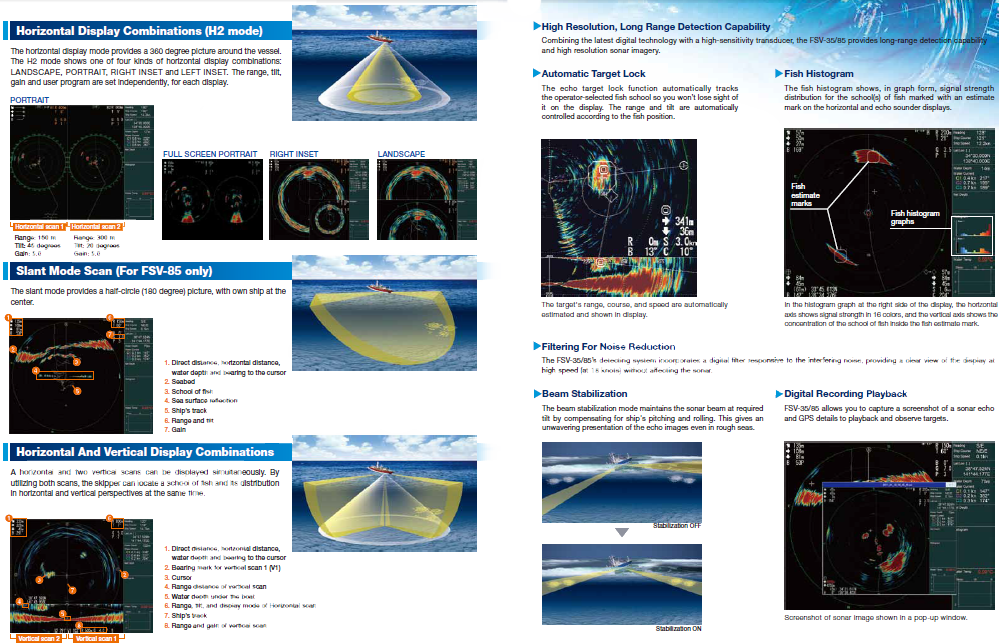

Horizontal Display Combination, Slant Mode Scan, Horizontal And Vertical Display Combinations
Horizontal Display Combination, Slant Mode Scan, Horizontal And Vertical Display Combinations

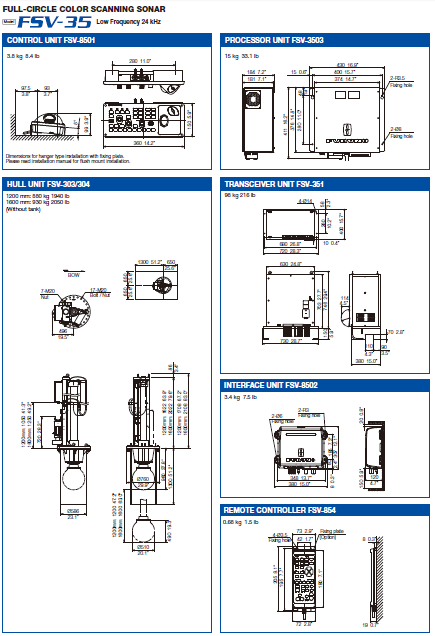

FULL-CIRCLE COLOR SCANNING SONAR FURUNO LOW FREQUENCY 24 KHz
FULL-CIRCLE COLOR SCANNING SONAR FURUNO LOW FREQUENCY 24 KHz

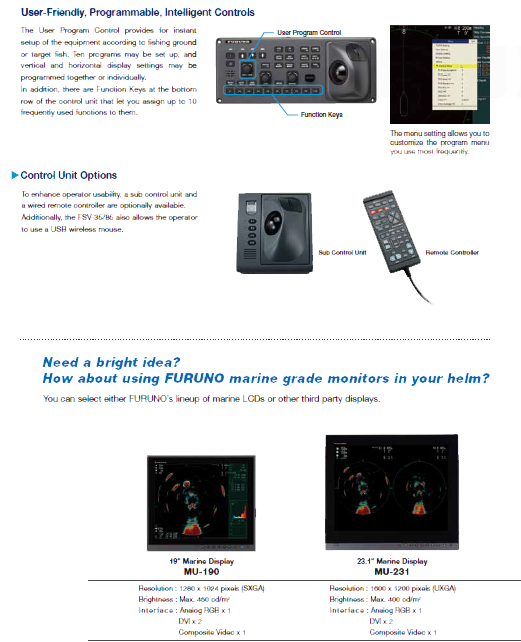

FURUNO marine grade monitors
FURUNO marine grade monitors

FULL-CIRCLE COLOR SCANNING SONAR MODEL FSV-35 LOW FREQUENCY 24 KHz

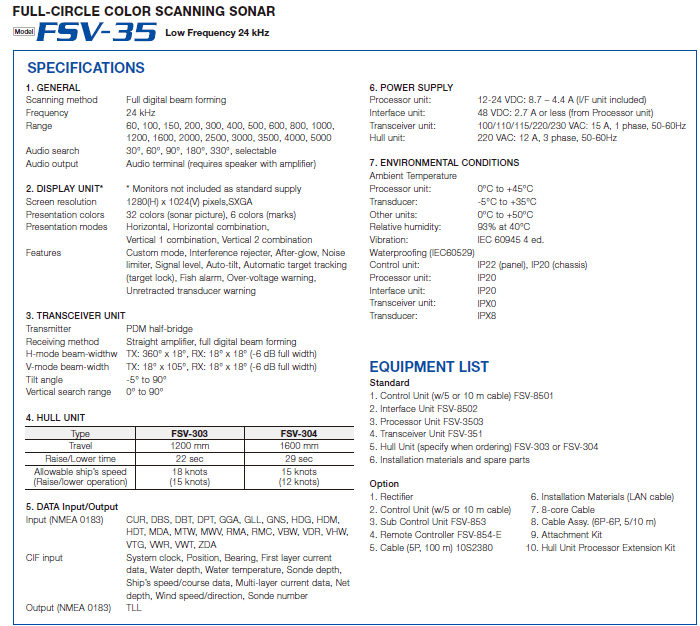

FULL-CIRCLE COLOR SCANNING SONAR FSV-35 LOW FREQUENCY 24 KHz SPECIFICATION AND EQUIPMENT LIST
FULL-CIRCLE COLOR SCANNING SONAR FSV-35 LOW FREQUENCY 24 KHz SPECIFICATION AND EQUIPMENT LIST

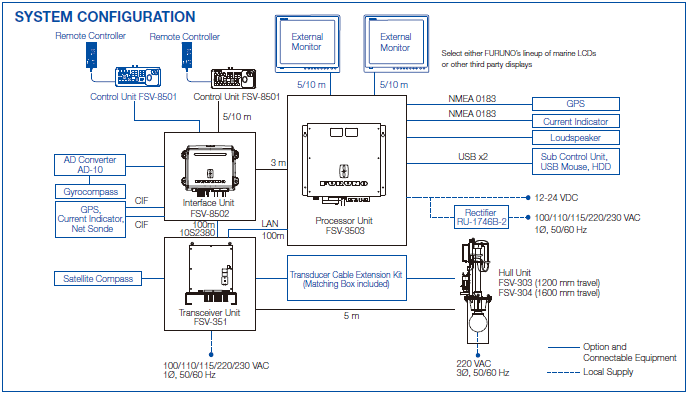

FULL-CIRCLE COLOR SCANNING SONAR FSV-35 LOW FREQUENCY 24 KHz SYSTEM CONFIGURATION
FULL-CIRCLE COLOR SCANNING SONAR FSV-35 LOW FREQUENCY 24 KHz SYSTEM CONFIGURATION

FULL-CIRCLE COLOR SCANNING SONAR MODEL FSV-85 MIDDLE FREQUENCY 80 KHz

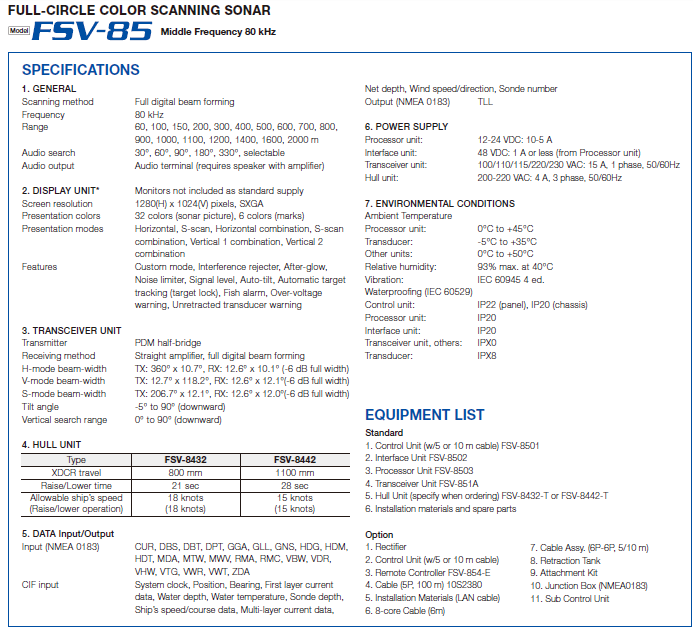

FULL-CIRCLE COLOR SCANNING SONAR FSV-85 MIDDLE FREQUENCY 80 KHz SPECIFICATION AND EQUIPMENT LIST
FULL-CIRCLE COLOR SCANNING SONAR FSV-85 MIDDLE FREQUENCY 80 KHz SPECIFICATION AND EQUIPMENT LIST

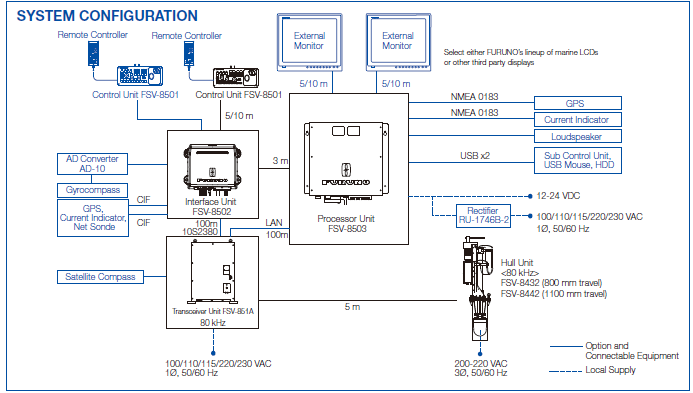

FULL-CIRCLE COLOR SCANNING SONAR FSV-85 MIDDLE FREQUENCY 80 KHz SYSTEM CONFIGURATION
FULL-CIRCLE COLOR SCANNING SONAR FSV-85 MIDDLE FREQUENCY 80 KHz SYSTEM CONFIGURATION



Read more : Furuno FCV-1150, a high-performance digital fish finder;  Furuno CSH-5L MARK-2FE-800 Navigational Echo Sounder
