FE-800 Navigational Echo Sounder
FE-800 Navigational Echo Sounder

The FE-800 displays the clearance below the ship in dual frequency operation when interfaced with two transducers.

Highlights :

  • Dual frequency display (50/200 kHz) (When interfaced with two transducers)
    The depth at FORE and AFT positions can be displayed simultaneously.
  • A variety of display modes available: NAV, OS DATA and HISTORY
  • High contrast 8.4″ LCD.
  • When interfaced with FURUNO remote display RD-20/50, depth information can be observed at a remote location.
  • Optional printer interface available for printing out echogram.
  • Connecting a PC with the optional data recording software allows operator to store, compile and print out the past data of the echogram via a PC.
  • Bridge Alert Management (BAM) ready.
  • Depth data for the past 24 hours is storable.
  • Visual and audible alerts.
    The FE-800 generates alerts when the water depth below transducer is shallower than a preset depth. When the seabed is lost due to the lowered power supply or out of range scale, an alert is generated.

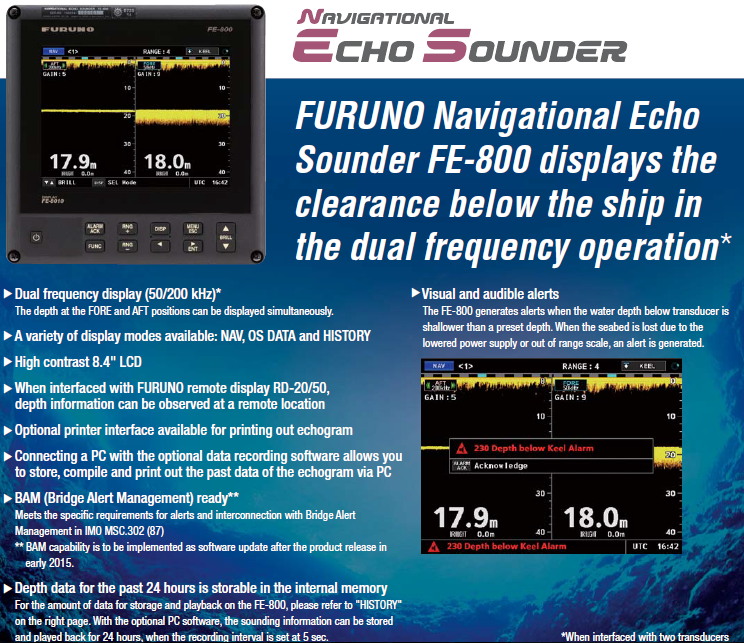

    Navigational Echo Sounder
    Navigational Echo Sounder

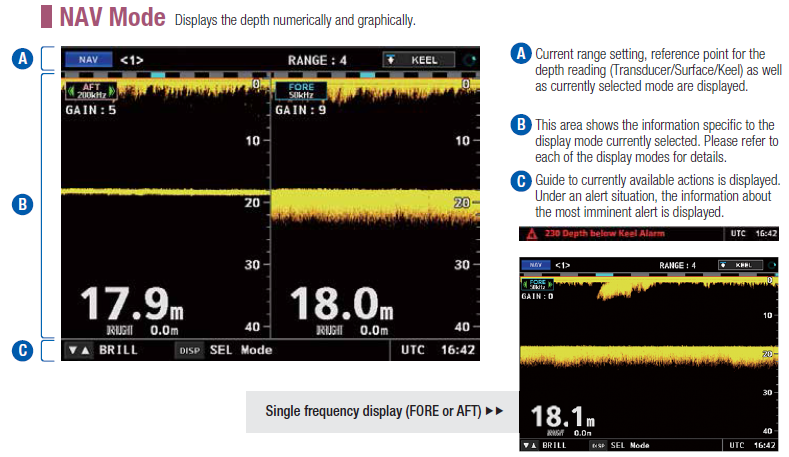

    NAV Mode Displays the depth numerically and graphically
    NAV Mode Displays the depth numerically and graphically

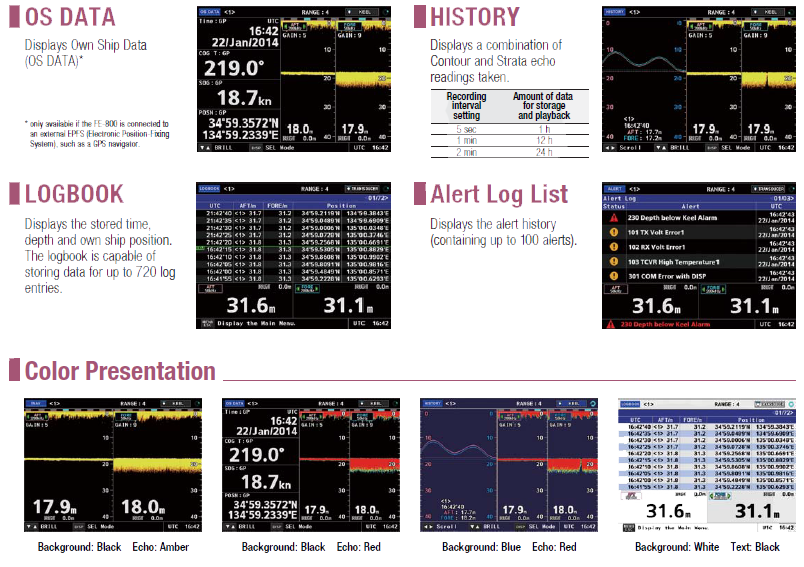

    IOS Data, History, Logbook, Alert Log List, Color Presentation
    IOS Data, History, Logbook, Alert Log List, Color Presentation

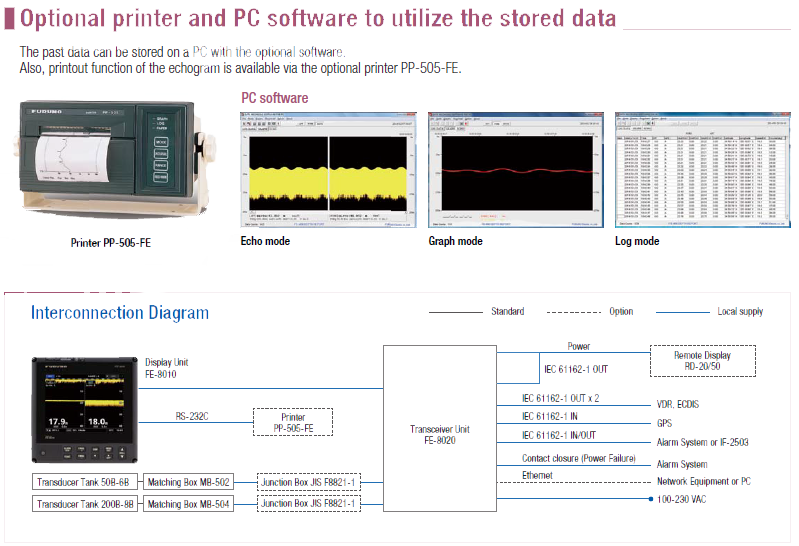

    Optional printer and PC software to utilize the stored data
    Optional printer and PC software to utilize the stored data

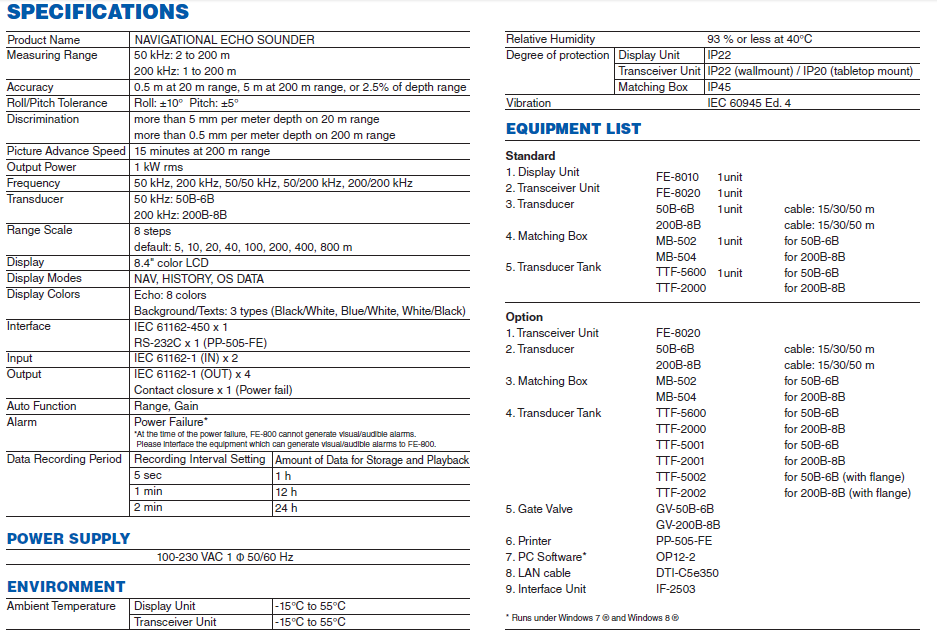

    FE-800 Navigational Echo Sounder Specification
    FE-800 Navigational Echo Sounder Specification

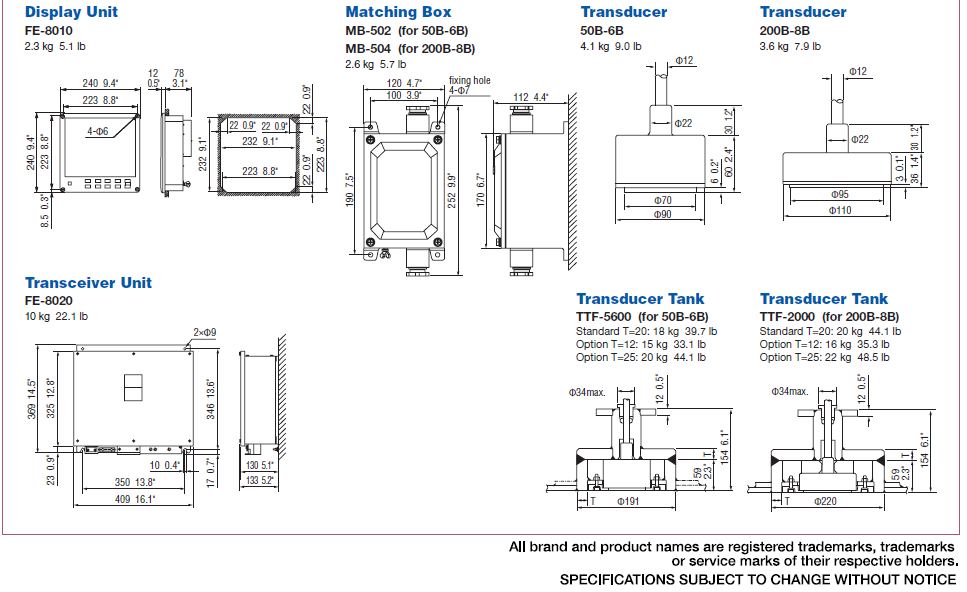

    Display Unit, Matching Box, Transducer, Transceiver Unit, Transducer Tank
    Display Unit, Matching Box, Transducer, Transceiver Unit, Transducer Tank
