BaroSCOUT Seametrics

The Seametrics BaroSCOUT Smart Sensor is designed to measure barometric pressure, along with temperature. It is an ideal companion to our absolute pressure/level sensors and can be used to adjust their readings for atmospheric pressure.

This industry standard digital RS485 interface device records up to 50,000 records of pressure, temperature, and time data, operates with low power, and features easy-to-use Aqua4Plus 2.0 software with powerful features. Constructed with 316 stainless steel, acetal, and Viton®, this sensor provides high-accuracy readings in rugged and corrosive field conditions.

The BaroSCOUT utilizes an extremely rugged and stable piezo-electric media-isolated pressure element combined with a 16-bit analog-to-digital converter. This provides extremely accurate and stable pressure input into the microprocessor on the circuit board that measures the pressure and stores the data in non-volatile memory.

A replaceable 1/2 AA 3.6v lithium battery powers the BaroSCOUT. The unit is programmed using our easy-to-use control software. Once programmed the unit will measure and collect data at the time interval programmed.

While most will use the BaroSCOUT with Seametrics’ Aqua4Plus 2.0 software, it is by no means limited to that software. You can use your own Modbus® RTU software or logging equipment to read measurements via RS485, tying into your existing telemetry and control systems.

Note : The BaroSCOUT is intended for use in atmosphere—not to be submerged.

Low-cost Barometric Datalogging
  • Records barometric pressure and temperature.
  • Low power—4.0 year battery life.
  • Integrated datalogger collects up to 50,000 records.
  • Small diameter—0.875″ (2.22 cm).
  • Easily connects with other sensors via RS485 network.
  • Includes new Aqua4Plus control software.

Description

Use the BaroSCOUT with absolute pressure sensors—no desiccant tubes, bellows, or vent tubes needed!

A barometric and temperature sensor with integrated datalogging, this sensor is constructed with 316 stainless steel, fluoropolymer, and acetal—providing highly accurate readings in rugged and corrosive field conditions.

Features

Pressure And Level Sensors Type BaroSCOUT Seametrics
Pressure And Level Sensors Type BaroSCOUT Seametrics

Sensor

  • Measures barometric pressure, temperature, and time.
  • Low power—4.0 year battery life.
  • ± 0.008 psi.
  • Modbus® RTU protocol—for great flexibility.
  • Small diameter—0.875″ (2.22 cm).
  • 316 stainless steel, fluoropolymer, and acetal construction.
  • Wireless connectivity.

Datalogger

  • 50,000 record non-volatile memory—your data will not be lost in the event of a power failure.
  • Pause logging feature—temporarily pause the logging while repositioning or transporting sensor.
  • Delayed start feature—state a specific future start time, making it easy to set several sensors to start at the same time.

Software

  • Comes with free Aqua4Plus control software to get you up and running immediately.
  • View your data in real-time.
  • Easy export to spreadsheets and databases.
  • Barometric compensation utility.
  • Update sensor via firmware while in the field—great for future updates.

Applications

  • Barometrically compensate absolute pressure sensors for level measurement.

Supplement aquifer test data in leaky or confined conditions.

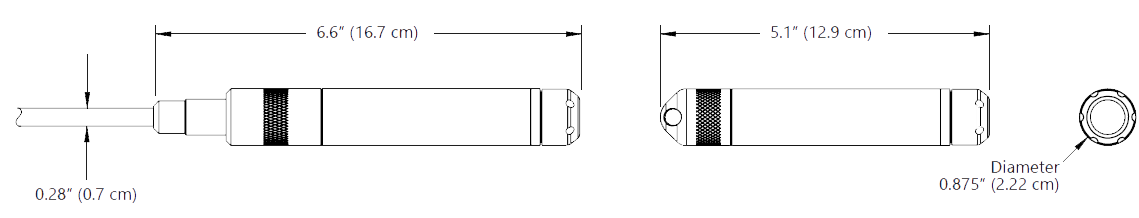

Pressure And Level Sensors Type BaroSCOUT Seametrics Dimension
Pressure And Level Sensors Type BaroSCOUT Seametrics Dimension
GENERAL
Length (cabled version)6.6” (16.7 cm)
Length (cableless version)5.1” (12.9 cm)
Diameter0.875” (2.22 cm)
Body Material316 stainless steel
Wetted Materials316 stainless steel, acetal, fluoropolymer
CommunicationRS485 Modbus® RTU
Direct Modbus Read Output32-bit IEEE floating point
Internal Math32-bit floating point
Operating Temp. Range-20° C to 60° C
Storage Temp. Range-40° C to 80° C
RegulatoryCE
LOGGING
Memory50,000 records
Logging Rate1x per second
SoftwareComplimentary Aqua4Plus 2.0
File Formats.csv / .a4d
POWER
Internal BatteryOne replaceable 1/2 AA 3.6V
lithium battery
Expected Battery Life4 years (depending on use)
TEMPERATURE
Element TypeThermistor
Accuracy± 0.1° C
(from -20° C to 60° C)
Resolution0.01° C
UnitsCelsius, Fahrenheit, Kelvin
PRESSURE
Transducer TypeSilicon strain gauge
Transducer Material316 stainless steel
UnitsPSI, FtH2O, inH2O, cmH2O,
mmH2O, mH2O, inHg, cmHg,
mmHg, Bars, mBars, kPa
Accuracy± 0.008 PSI ( 0.55 mbar)
(@ 20° C)
± 0.02 PSI (1.34 mbar)
(@ -20° C to 60° C)
Resolution0.01% FS (typical)

NOTE: Intended for use in atmosphere—not to be submerged.
