Turbo Turbidity Sensor With Data Logging

0-3,000 NTU Sensor with Datalogging
  • Includes Aqua4Plus software.
  • Can measure up to 3,000 NTUs.
  • Available for Modbus® and SDI-12 systems.
  • Built-in datalogger.

Description

Seametrics’ Turbo Sensor measures a wide range of NTUs, making it a versatile device capable of deployment at many different sites.

This device also comes with a built-in datalogger and Aqua4Plus software. With both features standard, the Turbidity Sensor is perfect for the environmental professional who’s frequently on the move.

Features

Turbidity Sensors Type Turbo Seametrics
Turbidity Sensors Type Turbo Seametrics
  • Modbus® and SDI-12 interfaces for greater flexibility.
  • Built-in datalogger holds records in non-volatile memory.
  • RS485 network.
  • Wireless connectivity.
  • Flexible, Windows®-based programming.
  • Real-time viewing of data.
  • Easy export to spreadsheets and databases.
  • Direct read option for use with panel meters or RTU/PLC applications.
  • Available with a variety of cable options—including polyethylene, polyurethane, and FEP.
  • Range: 0-3,000 NTU.
  • Resolution : ±3 NTU.
  • Accuracy : 2% at 25° C.

Applications

  • Surface water monitoring.
  • Groundwater monitoring.
  • Agricultural runoff studies.
  • Discharge monitoring.
  • Aquaculture.
  • Leachate monitoring.
  • Remediation performance.
  • Wastewater treatment.

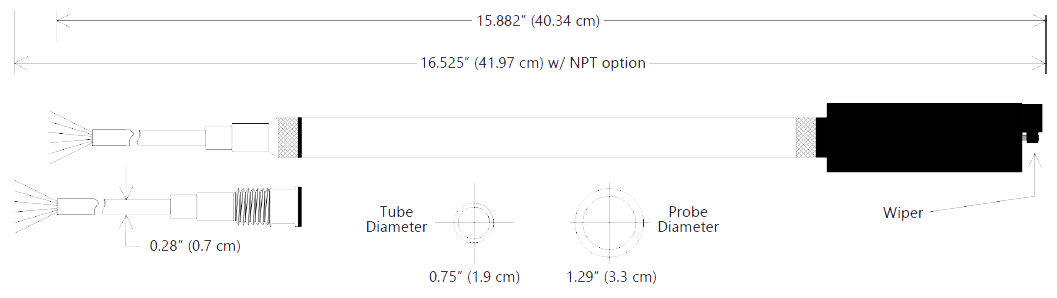

Turbo Turbidity Sensor Dimensions
Turbo Turbidity Sensor Dimensions

SPECIFICATION

GENERAL
Length15.882” (40.34 cm) w/ cable
harness
16.525” (41.97 cm) w/ NPT adapter
Probe Diameter1.29” (3.3 cm)
Tube MaterialAcetal & 316 stainless steel
Probe MaterialComposite
Wire Seal MaterialFluoropolymer and PTFE
Submersible CablePolyurethane, polyethylene,
or ETFE available
Terminating ConnectorAvailable
CommunicationRS485 Modbus® RTU
SDI-12 (ver 1.3)
Direct Modbus Read Output32-bit IEEE floating point
Internal Math32-bit floating point
Operating Temp. Range0° C to 40° C
Storage Temp. Range-20° C to 50° C
LOGGING
Memory260,000+ records
Log TypesVariable, user-defined,
logarithmic, profiled
Programmable Baud Rate9600, 19200, 38400
Logging Rate2x/sec maximum
SoftwareComplimentary Aqua4Plus
Networking32 available addresses per junction
w/ batching capabilities (up to 255)
File Formats.csv / .a4d
SENSOR
Measuring Ranges0–400 NTU
0–3000 NTU
Measuring Method90 degree ISO 7027
Accuracy± 2% or ± 2 NTU @ 25° C (whichever
is greater)
Repeatability± 2% @ 25° C
Temperature Range0° C to 40° C
Maximum Depth164 ft (50 m)
POWER
External Power Pack Required

Seametrics Power Packs available.

Contact Seametrics for details.

12 Vdc nominal (9–15 Vdc)
