DO2 Dissolved Oxygen

SENSOR WITH DATA LOGGING

Dissolved Oxygen Sensor with Integrated Datalogging
  • Measures dissolved oxygen and temperature.
  • Integrated datalogger collects over 170,000 records.
  • Utilizes fluorescence sensor technology.
  • No membranes, fill solutions, replacement caps, or cartridges required.
  • Includes new Aqua4Plus control software.

Description

Seametrics’ DO2 Smart Sensor is the next generation in trouble-free oxygen sensing design.

Utilizing fluorescence of a stable, immobilized ruthenium-based film matrix, the sensor provides precision optical transmission and detection to measure oxygen concentration in the fluid outside of the sensor.

Equipped with integrated datalogger and Aqua4Plus software, this sensor provides convenient, high-quality data to the user.

Features

DO2 Dissolved Oxygen Sensors Seametrics
DO2 Dissolved Oxygen Sensors Seametrics
  • Sensor does not require water movement, flow, or frequent cleaning.
  • Does not require frequent calibration.
  • 1.66″ diameter—fits easily in 2-inch wells.
  • RS485 Modbus® interface.
  • Measures dissolved oxygen and temperature.
  • Over 260,000 records in non-volatile memory.
  • Fluorescence sensor technology.
  • No membranes, fill solutions, replacement caps, or cartridges required.
  • Includes new Aqua4Plus control software for setting up flexible recording sequences, retrieving data, monitoring real-time data, and viewing collected data.

Applications

  • Dam discharge monitoring aquaculture.
  • Leachate monitoring (Landfill).
  • Long-term surface water monitoring.
  • Monitoring remediation performance.
  • Municipal and industrial water treatment facilities.

SPECIFICATION

GENERAL
Probe Diameter 1.66” (4.22 cm)
Tube Material Acetal & 316 stainless steel or
titanium
Probe Material Epoxy, polyurethane, and PVC
Wire Seal Material Fluoropolymer and PTFE
Submersible Cable Polyurethane, polyethylene,
or ETFE available
Terminating Connector Available
Communication RS485 Modbus® RTU
Direct Modbus Read Output 32-bit IEEE floating point
Internal Math 32-bit floating point
Operating Temp. Range 0° C to 55° C
Storage Temp. Range -40° C to 80° C
LOGGING
Memory 260,000+ records
Log Types Variable, user-defined,
logarithmic, profiled
Programmable Baud Rate 9600, 19200, 38400
Logging Rate 8x/sec maximum
Software Complimentary Aqua4Plus and
Aqua4Plus Lite
Networking 332 available addresses per junction
w/ batching capabilities (up to 255)
File Formats .csv / .a4d
SENSOR
Measuring Ranges 0–25 ppm
Accuracy 1% of reading or 0.02 ppm —
whichever is greater
Sensitivity / Resolution 0.01 ppm below 4.00,
0.1 ppm above 4.0
Stability 0.01 ppm
Repeatability 0.01 ppm
Sensor Drift Less than 1% per year
Temperature Range 0° C to 55° C
Response Time 95% in less than 60 seconds
Maximum Pressure 100 PSI
POWER
External Power Pack Required

Seametrics Power Packs available.

Other power options available.
Contact Seametrics for details.

9–16 Vdc

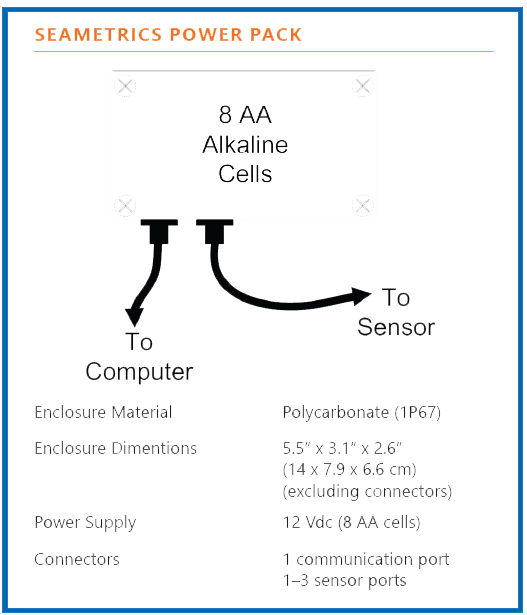

Seametrics Power Pack
Seametrics Power Pack
