Pressure transmitter for air and water applications, type MBS 1900
Pressure transmitter for air and water applications, type MBS 1900

Type MBS 1900

The pressure transmitter MBS 1900 is designed for use in air and water applications like Booster Pumps and Air Compressors. The semi-flexible pressure transmitter programme covers different output signals, absolute or gauge (relative) versions, measuring ranges from 0 – 4 bar to 0 – 25 bar and a wide range of pressure and electrical connections. Enclosure material is stainless steel AISI 316L.

Features

• Designed for use in air and water applications.
• Wetted parts of stainless steel (AISI 304).
• Pressure ranges in relative (gauge) or absolute from 0 – 25 bar.
• Output signals: 4 – 20 mA, or ratio metric.
• Absolute or relative (gauge) sensor element.
• A wide range of pressure and electrical connections.
• Digitally compensated.

Technical data

Performance (EN 60770)

Accuracy (@ 20 °C) (incl. non-linearity, hysteresis and repeatability)≤ ± 1.0% FS
Non-linearity BFSL (conformity)≤ ± 0.5% FS
Hysteresis and repeatability≤ ± 0.1% FS
Total error band inside the compensated temperature range≤ ± 3.0% FS
Response time< 4 ms
Overload pressure (Static)3 × FS (max. 75 bar)
Burst pressure4 × FS (max. 100 bar)
Durability, P : 10 – 90% FS> 10×106

Electrical specifications

Nom. output signal
(short-circuit protected)
4 − 20 mARatiometric
(10 – 90% of Vsupp.)
Supply voltage [UB], polarity protected9 – 28 V5 V ± 10%
Supply – current consumption≤ 5 mA
Supply voltage dependency≤ ± 0.1% FS/10 V≤ ± 0.1% FS/10 V
Load [RL
] (load connected to 0 V)
RL
≤ (UB-10V)/0.02A
RL
≥ 5 KΩ @ 5 V d.c.
Output impedance

Environmental conditions



Sensor temperature range0 – 80 °C
Max. media temperature110 – (0.35 × ambient temperature)
Ambient temperature range (depending on electrical connection)-20 – 80 °C
Compensated temperature range0 – 80 °C
Transport / Storage temperature range-50 – 85 °C
EMC – EmissionEN 61000-6-3
EMC – ImmunityEN 61000-6-2
Insulation resistance> 100 MΩ at 500 V
Vibration stabilitySinusoidal15 g, 5 Hz – 2 kHzIEC 60068-2-6
Random7.5 grms, 5 Hz – 1 kHzIEC 60068-2-64
Shock200 g/1 msIEC 60068-2-27
Free fall1 mIEC 60068-2-32
Enclosure (depending on electrical connection)see page 4

Mechanical characteristics

MaterialsWetted partsEN 10088-1; 1.4301 (AISI 304)
EnclosureEN 10088-1; 1.4404 (AISI 316 L)
Electrical connectionssee page 4
Net weight (depending on pressure connection and electrical connection)0.15 – 0.3 kg

Mounting instructions

Width across flats24 mm
Mounting torque max20 Nm

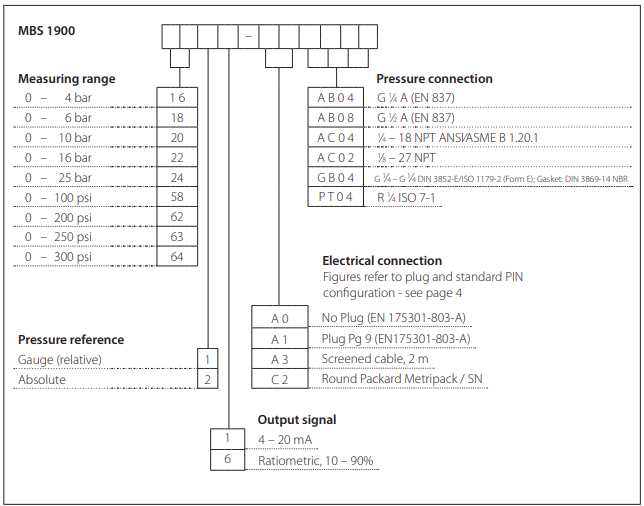

Ordering standard

Pressure transmitter for air and water applications, type MBS 1900 ordering standard
Pressure transmitter for air and water applications, type MBS 1900 ordering standard

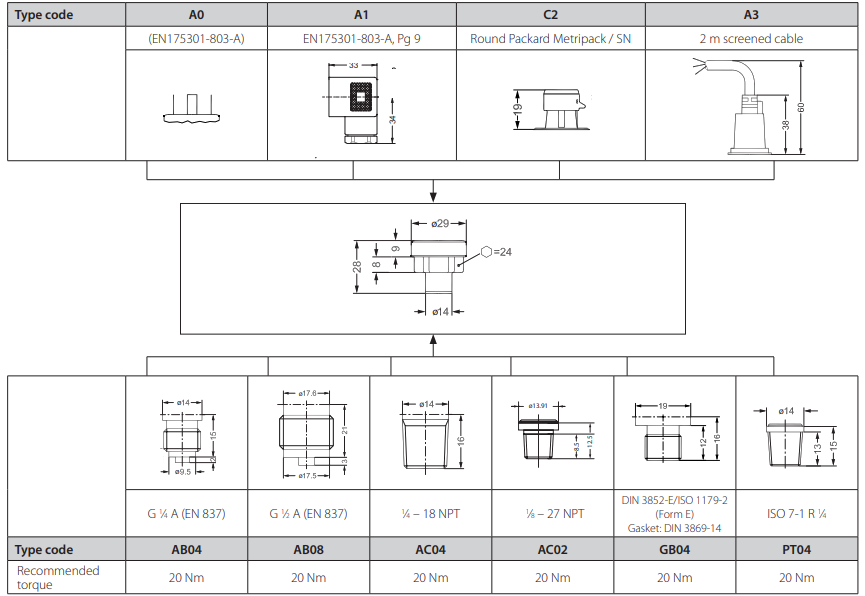

Dimensions / Combinations

Pressure transmitter for air and water applications, type MBS 1900 dimensions
Pressure transmitter for air and water applications, type MBS 1900 dimensions
