Exhaust gas temperature sensors for marine
Exhaust gas temperature sensors for marine

Exhaust gas temperature sensors for marine

MBT 5113 and MBT 5116

Heavy-duty sensors used for measuring exhaust gas from diesel engines, turbines and compressors within stationary and marine applications.

MBT 5113 – based on thermocouple technology for media temperatures up to 800 °C.
MBT 5116 – based on a Pt 100 / Pt 1000 element technology for standardised signals, high accuracy and media temperature up to 600 °C.

Features

MBT 5113
• Up to 800 °C media temperatures.
• B-head for standard installations.
• Changeable inserts.
• Solid drilled protection tube for high resistance to shock and vibrations.
• 1 or 2 x NiCr-Ni, type K.

MBT 5116
• Up to 600 °C media temperatures.
• 2 or 3 wire connections.
• Solid drilled protection tube for high resistance to shock and vibrations.
• Available in 2 versions :
• Slim-line for compact installations.
• B-head for standard installations.
• Changeable insert.
• 1 or 2 x Pt 100 / Pt 1000.

Approvals

  • Lloyds Register of Shipping, LR.
  • Germanischer Lloyd, GL.
  • Det Norske Veritas, DNV.
  • Registro Italiano Navale, RINA.
  • Nippon Kaiji Kyokai, NKK.
  • American Bureau of Shipping, ABS.
  • Korean Register of Shipping, KRS.
  • Bureau Veritas, BV.
  • China Classification Society, CCS.

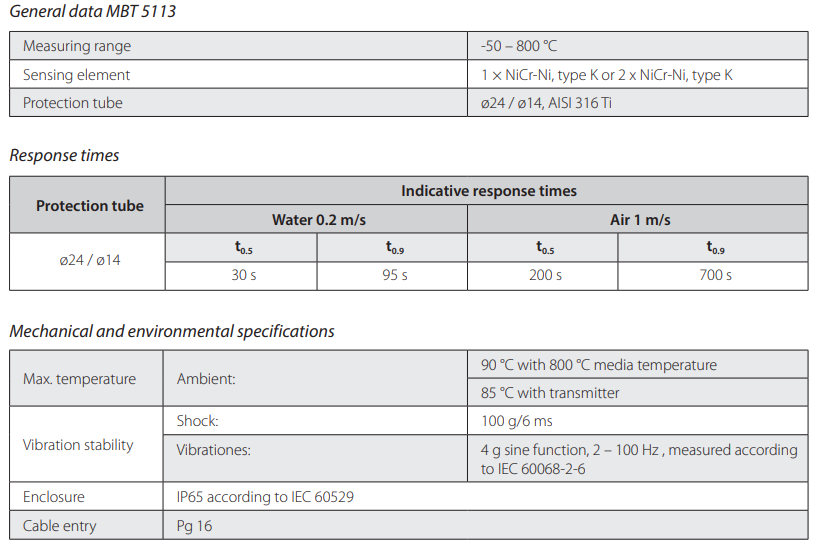

Technical data MBT 5113

Technical data MBT 5113
Technical data MBT 5113

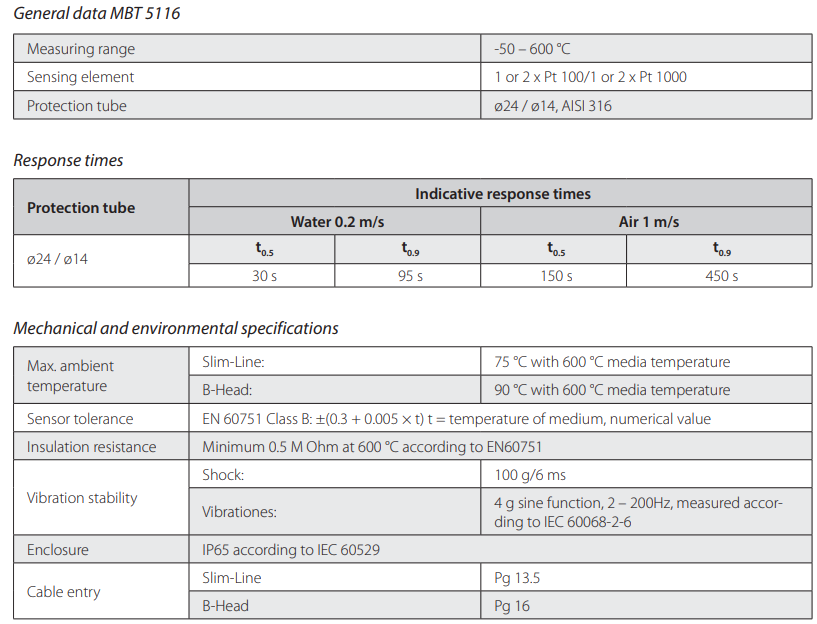

Technical data MBT 5116

Technical data MBT 5116 Exhaust gas temperature sensors
Technical data MBT 5116 Exhaust gas temperature sensors

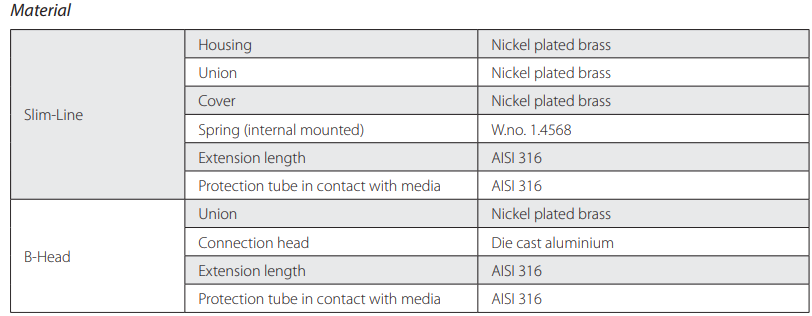

Type 5116 Exhaust gas temperature sensors dimensions
Type 5116 Exhaust gas temperature sensors dimensions

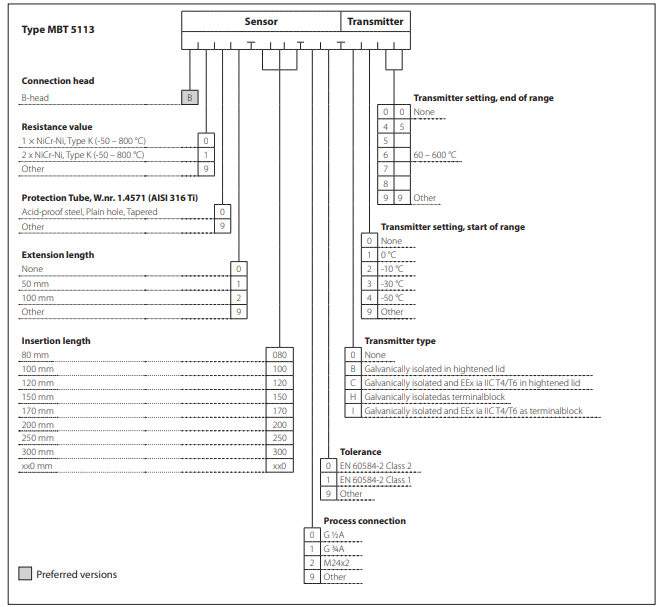

Ordering standard Type 5113 Exhaust gas temperature sensors

Ordering standard Type 5113 Exhaust gas temperature sensors
Ordering standard Type 5113 Exhaust gas temperature sensors

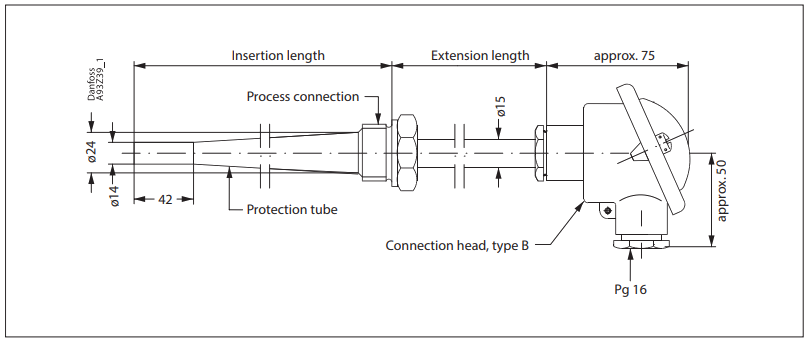

Type 5113 Exhaust gas temperature sensors dimensions

Type 5113 Exhaust gas temperature sensors dimensions
Type 5113 Exhaust gas temperature sensors dimensions
