Robert Cort C-B5 Trunnion Mounted Ball Valves (Pipeline)

Manufacturer of pipeline ball valves for a wide range of applications. With a global reputation for high quality, reliability and safety, the Cort C-B5 trunnion mounted pipeline ball valve is available in sizes from 150mm – 1200mm (6” to 48”) and pressure ratings from class 150 to 2500.

The Cort C-B5 Ball Valve uses a three piece, bolted body design manufactured from ring rolled forgings. The cast or forged ball features integral, external trunnions which turn in bearings mounted in bearing retainer blocks. These bearing retainers are precision located between the valve closures which are then able to resist the pressure loading on the ball.

Size Range

DN150 – DN1400  /  6” – 56” Bore

Pressure Rating

ANSI 150 up to 2500

Materials

Carbon Steel, Stainless Steel & Ferralium®

Applications

Flowlines, manifolds, pipeline transmission and distribution, pressure regulation and metering runs, underground storage, waterflood and general pipeline service in onshore, offshore and subsea locations. Our C-B5 ball valves can also be used as sphere launchers or receivers when fitted with a sphere-lock ball.

Standard Features

Wartsila, Ball Valve, Trunnion Mounted for Pipeline
Wartsila, Ball Valve, Trunnion Mounted for Pipeline
  • Approved to API 6D.
  • Trunnion Mounted (Low operating torque).
  • Bubble-tight sealing from zero to full rated pressure.
  • Metal-to-metal primary seal – protected ‘O’ ring secondary seal.
  • Self-cleaning ball.
  • Piggable.
  • 3 – piece Bolted construction allows for disassembly maintenance on site.
  • Double stem seals – can be replaced with pipeline under pressure.
  • Integral mechanical stops.
  • Both upstream and downstream seat seals capable of sealing upstream pressure.
  • Full block and bleed capability.
  • Seal integrity can be checked by pressurising the body cavity only.

Option

  • Hardness controlled materials (to suit NACE MR-01-75).
  • Spring Energized Polymer Seals.
  • Emergency sealant injection (seat and stem seals).
  • Stem extensions for operating underground.
  • Transition pups for welded ends.
  • Regular or Venturi Port.

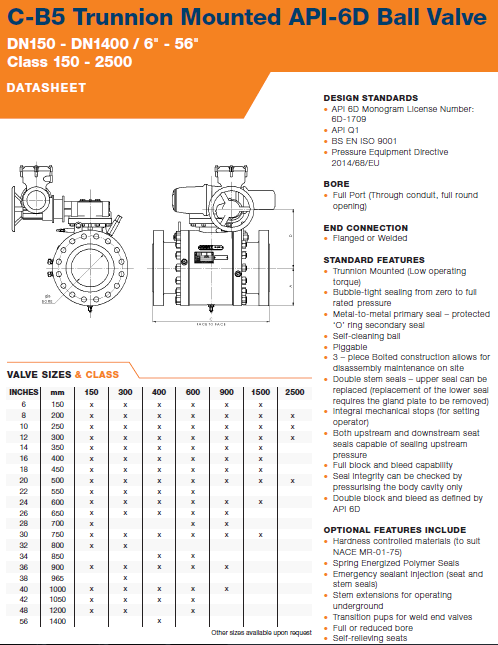

Valve Size and Class
Valve Size and Class

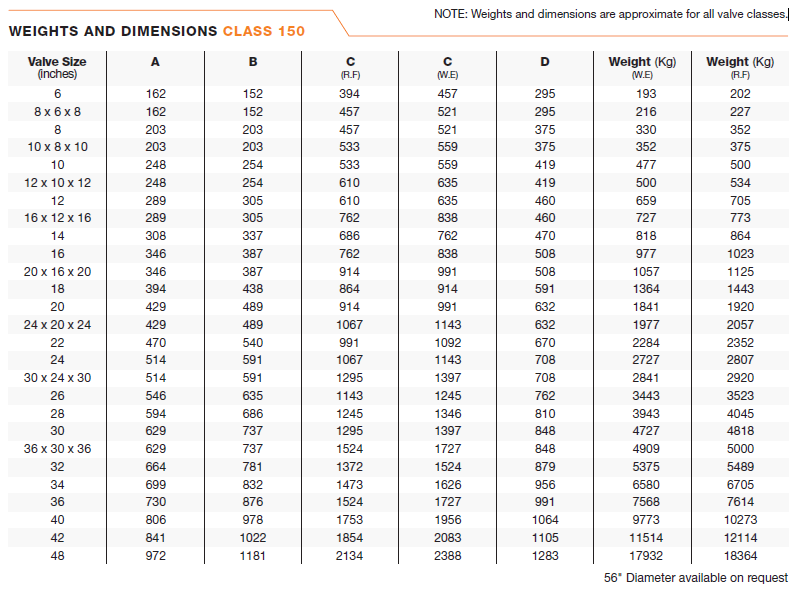

Weights and Dimensions Class 150 Valve
Weights and Dimensions Class 150 Valve

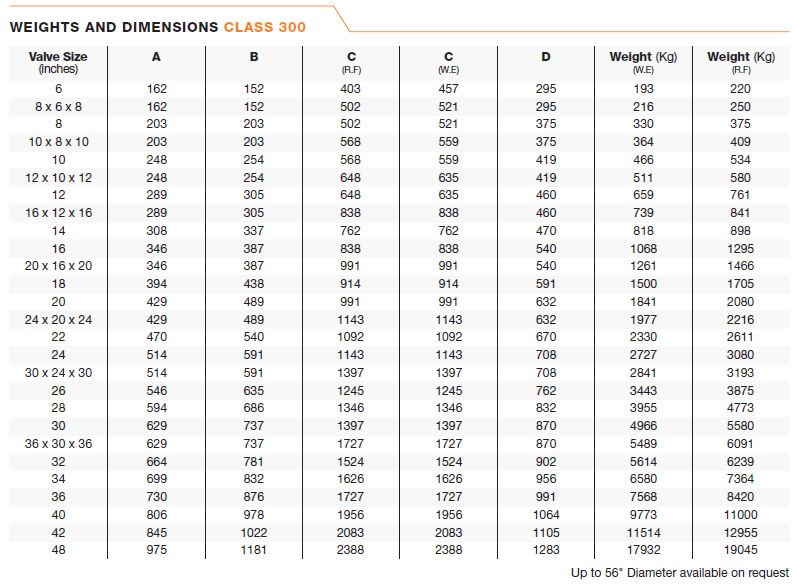

Weights and Dimensions Class 300 Valve
Weights and Dimensions Class 300 Valve

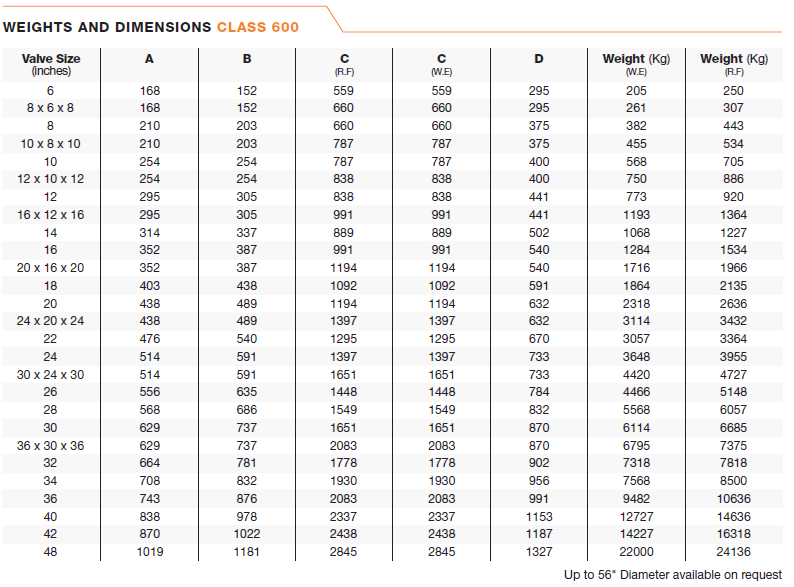

Weights and Dimensions Class 600 Valve
Weights and Dimensions Class 600 Valve

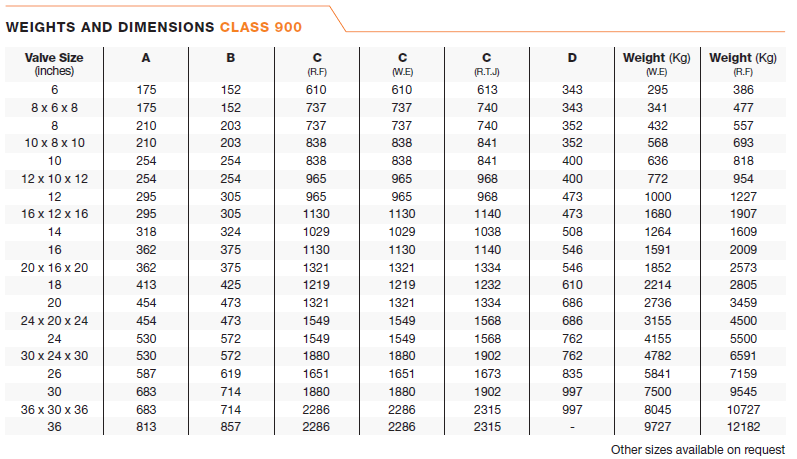

Weights and Dimensions Class 900 Valve
Weights and Dimensions Class 900 Valve

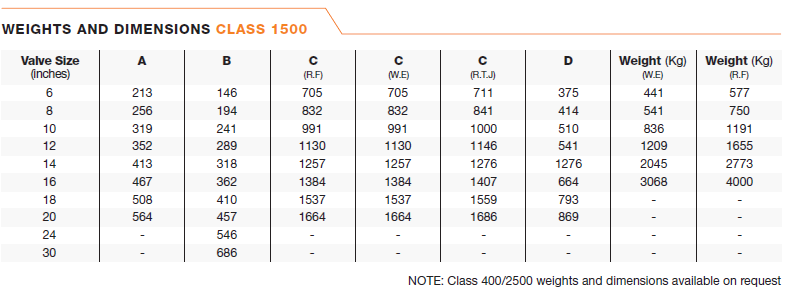

Weights and Dimensions Class 1500 Valve
Weights and Dimensions Class 1500 Valve

MATERIALS OF CONSTRUCTION

Standard Options Include
BODY Carbon Steel Weld Overlayed
ASTM A350-LF2 (class 1) Modified (50000psi min yield) Epoxy/Phenolic Linig
CLOSURES Carbon Steel Weld Overlayed
ASTM A350-LF2 (class 1) Modified (50000psi min yield) Epoxy/Phenolic Linig
BODY BOLTING ASTM A193 Grade B7 Studs Low Temperature Alloy Steel
ASTM A194 Class 2H Nuts
GLAND PLATE Carbon Steel Stainless Steels
BS EN10025 S355 Weld Overlayed
ASTM A350-LF2 Epoxy/Phenolic Linig
BEARING RETAINERS Carbon Steel Weld Overlayed
BS EN10025 S355 Fibreglide Resin
BEARINGS Steel backed PTFE Type DU Weld Overlayed
THRUST WASHERS Electroless Nickel Coated Carbon Steel
BALL Electroless Nickel Coated Carbon Steel Stainless Steels
ASTM A350-LF2 Weld Overlayed
Hard Faced (Tungsten Carbide or Stellite)
SEAT RINGS Electroless Nickel Coated Carbon Steel Stainless Steels
BS 970 070M20 Duplex Stainless Steel
BS 970 080M40 Weld Overlayed
Hard Faced (Tungsten Carbide or Stellite)
SEAT SPRINGS 18/8 Austenitic Stainless Steel Inconel X750
‘O’ RING SEALS Specially compounded Nitrile synthetic rubber Viton
HNBR
Nylon PA12G (Face Seal)
STEM Electroless Nickel Coated Alloy Steel Stainless Steels
BS 970 709M40 Duplex Stainless Steel
DRIVE PINS Alloy Steel Stainless Steels
BS 970 709M40 Duplex Stainless Steels
