The 1612 Stainless Steel Liquid Level Sensor is the stainless-steel version of the 1612 Lightweight Liquid Level Sensor, designed specifically for aggressive or corrosive liquids including salt water, coolant, acids and chemical-based liquids.

The sensor features an SAE 5-bolt mounting pattern and is manufactured to your custom length requirement up to 1.5 meters.

The sensor utilises capacitive technology, with fully integrated electronics that provide a fully configurable 0-5V analogue output over the calibrated sensing range. Each sensor is factory calibrated in the specified liquid type (or equivalent).

The Stainless Steel Liquid Level Sensor is available in lengths from 80mm up to 1500 mm long and manufactured to your custom length requirements.

FEATURES AND BENEFITS

Stainless Steel Level Sensor
Stainless Steel Level Sensor
  • Suitable with Water, Coolant, Chemicals.
  • Stainless steel construction.
  • Solid-state capacitive measurement.

    Stainless Steel Level Sensor
    Stainless Steel Level Sensor

TECHNICAL

Output : Voltage 0.25 – 4.75V DC
Resolution : 10 bit
Supply Voltage : +6 to +24V DC
Supply Current : <10mA @ 12V
Ingress Protection : IP67
Operating Temperature : -40° to +125°C
Mounting : SAE 5-bolt flange
Length : 80 to 1500mm

Durable, impervious liquid level measurement.

  • Compatible with water, coolant & chemicals.
  • Solid-state capacitive technology.
  • Durable stainless steel construction.
  • -40° to +125°C temperature range.
  • 0-5V analogue ouput.
  • SAE 5-bolt flange mount.
  • Available up to 450mm long.

OUTPUT

Voltage output range 0.25 – 4.75V over dimension ‘Y’ (see overleaf)
Range accuracy ±1% @ 50% full scale deflection (20°C)

ELECTRICAL

Supply voltage 6-24VDC
Supply current <10mA@12V
Interface RS232 (+5V)
Resolution 10 bit
Sample rate 80Hz

WIRING

Cable Flying lead, 500mm
Wire size 26AWG PTFE Insulator
Sleeving Viton outer jacket

ENVIRONMENTAL

Ingress Protection IP67
Operational temperature -40° to +125°C
EMC immunity SAE J1113/2 1996
Construction Aluminium
Finish Anodised to DEF STAN 025

MECHANICAL

Probe length 80 – 1500mm (customer specified)
Mounting SAE 5-bolt pattern
Weight From 200g (dependant on length)

LIQUIDS

Fuels Gasoline, Unleaded, LRP, Jet fuel, Avgas
Oils Engine oils, transmission oils, steering & hydraulic fluids, diesel, heavy oil
Bio-fuels Ethanol E100, E85, E50, E20, E10, Methanol
Other Salt water, coolant, acids. Please consult Gill for other liquids
Stainless Steel Level Sensor Ordering
Stainless Steel Level Sensor Ordering

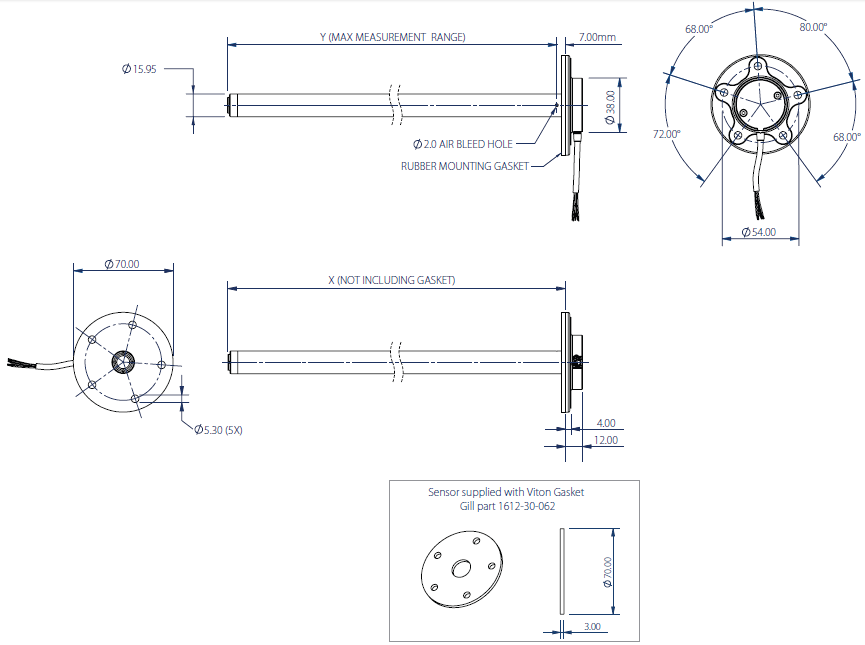

Stainless Steel Level Sensor Dimension
Stainless Steel Level Sensor Dimension

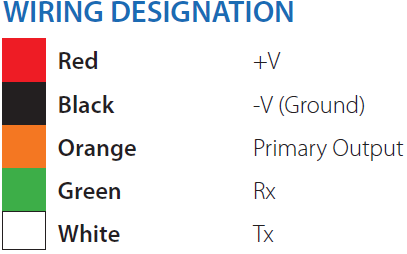

Wiring Designation
Wiring Designation
