The NXT chapter in Radar technology

NXT radars are Solid-State Radars utilizing Doppler technology to ensure the safest navigation. The NXT series features Target Analyzer™, Fast Target Tracking™ and Auto Target Acquire function to offer optimal detection and sensitivity of hazardous objects. Combined with RezBoost™ technology, the DRS6A-NXT and DRS4D-NXT have no equal in spotting and tracking targets moving around your vessel efficiently with a high resolution.

Radar technology
Radar technology

Features

Target Analyzer™ function utilizing Doppler technology spots hazardous targets instantly!

Target Analyzer
Target Analyzer

Target Analyzer
Target Analyzer

Fast Target Tracking™ and Auto Target Acquire function

With Fast Target Tracking™ activated, it only takes a few seconds for a vector to be displayed once the target is selected, manually or automatically with the Auto Target Acquire function.

When the Auto Target Acquire function is on, approaching targets within 3NM range from own ship, which are potentially hazardous, are automatically acquired by Doppler calculation and will trigger an alarm*.

Together, Up to 100 targets can be acquired simultaneously, increasing considerably the safety and simplifying estimation of other vessel’s course and speed.

*TCPA setting required

Bird Mode

DRS6A-NXT and DRS4D-NXT feature a new Bird Mode that helps you identify birds gathering around schools of fish at the sea surface. Bird mode adjusts the gain and sea settings automatically for optimal visibility.

RezBoost™ beam sharpening

RezBoost™ beam sharpening
RezBoost™ beam sharpening

  • Solid-State pulse compression Doppler Radar.
    No preheating time, low energy consumption (no use of a magnetron)
  • Revolutionary Target Analyzer™ function instantly identifies hazardous targets.
  • Fast Target Tracking™ and Auto Target Acquire function, up to 100 targets.
  • RezBoost™ beam sharpening to increase the resolution.
  • Effective Horizontal Beam*
    Can reach a value equivalent to 0.7°with DRS6A-NXT (XN13A) and 2.0°with DRS4D-NXT, when using RezBoost™
    *the lower the better
  • Bird Mode to find the best fishing grounds by tracking birds.
  • Simple installation, no need to open the radome (DRS4D-NXT only), external PSU is not required.
  • New smart-connector cable for retrofitting existing DRS cable installations (DRS4D-NXT only).

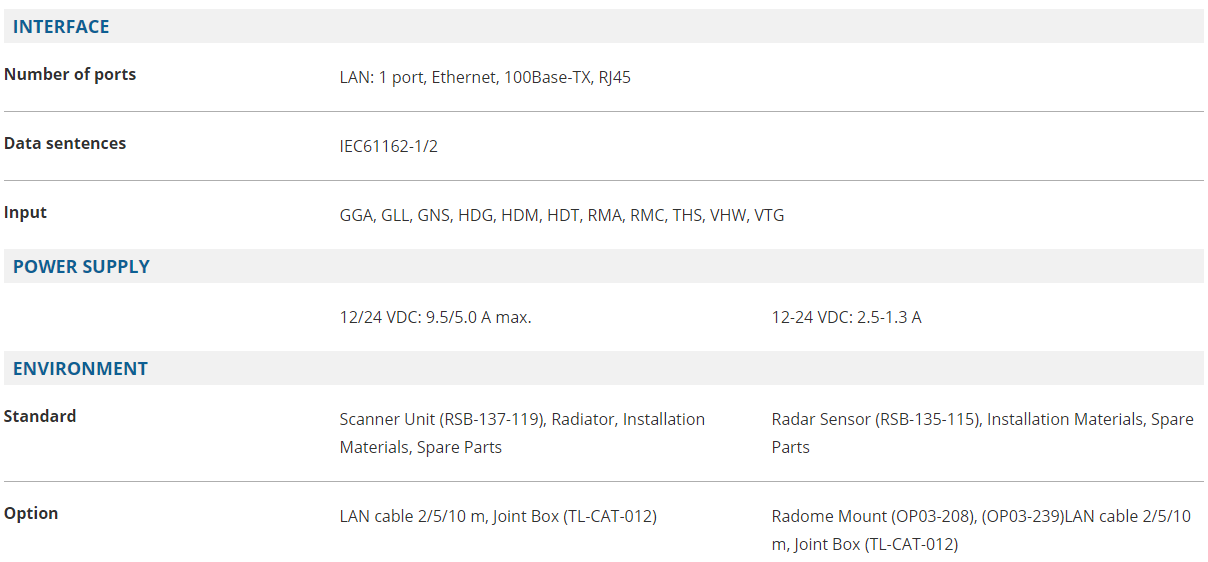

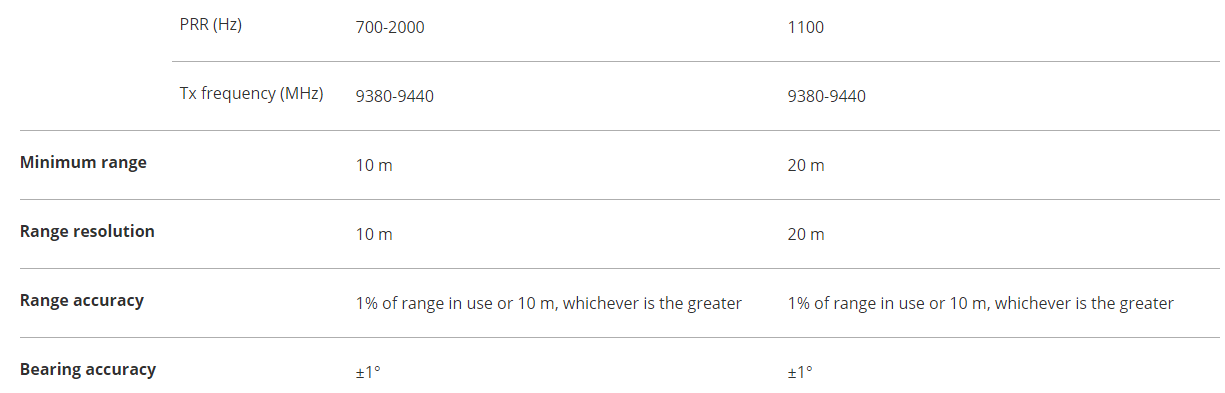

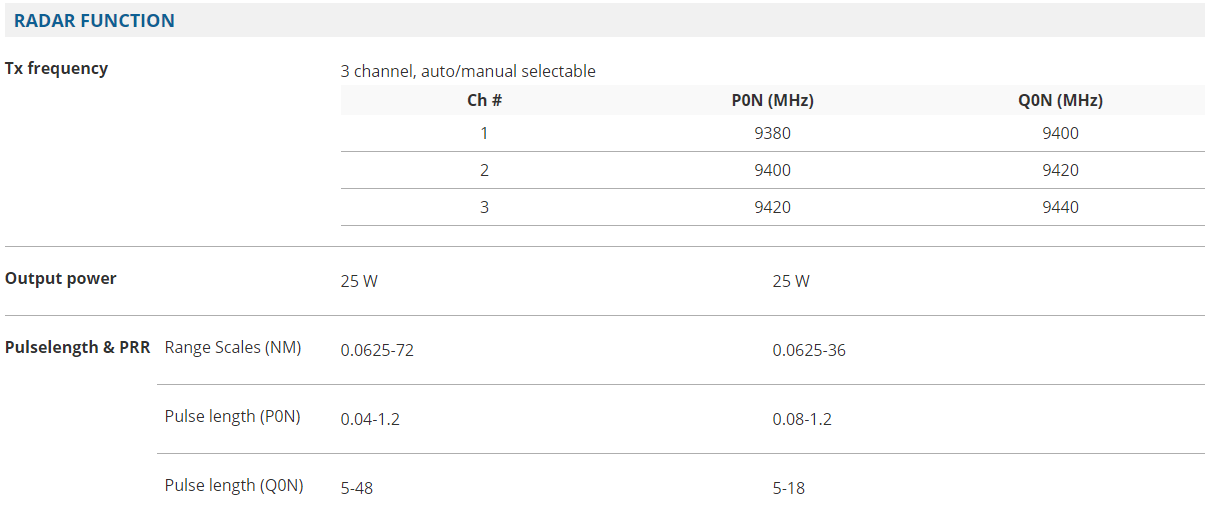

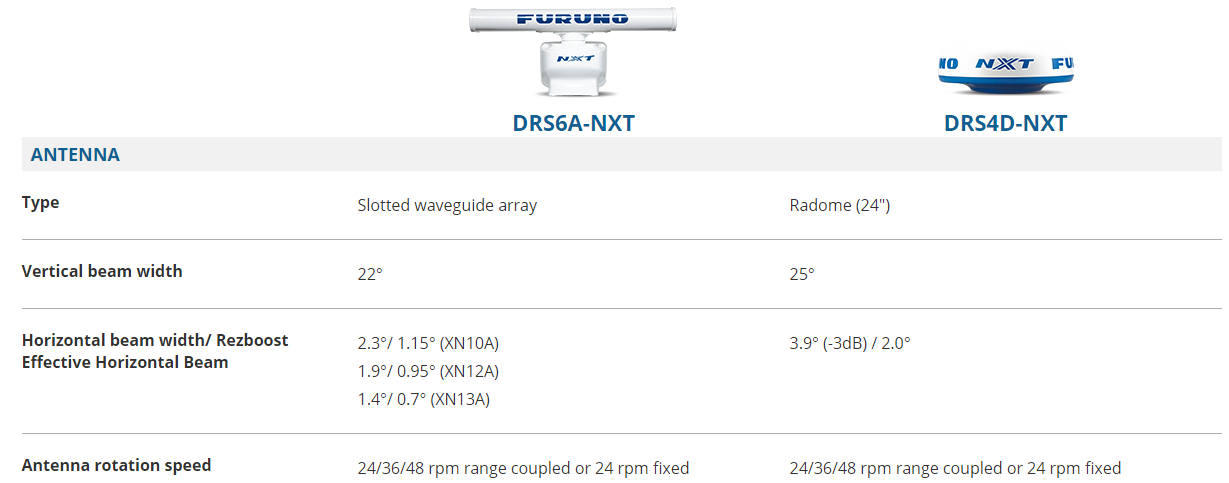

Specifications

Radar Technology Specification
Radar Technology Specification

Radar Technology Specification
Radar Technology Specification

Radar Technology Specification
Radar Technology Specification

Radar Technology Specification
Radar Technology Specification

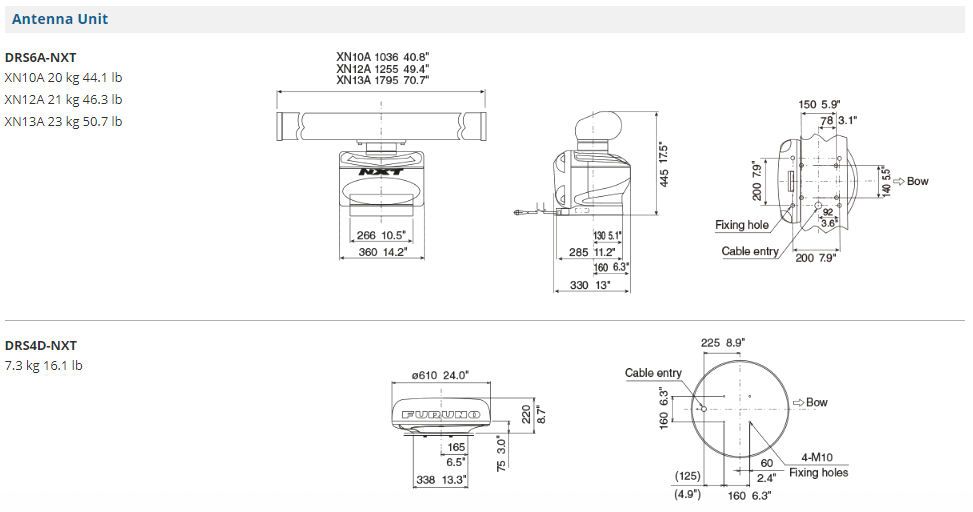

Antenna Unit
Antenna Unit

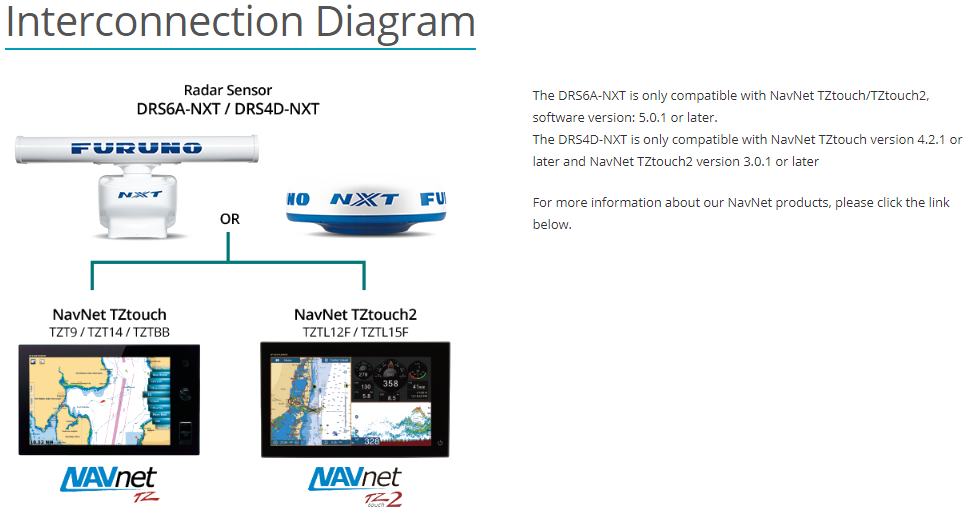

Interconnection Diagram
Interconnection Diagram
