Doppler Current Graph Type KDG-300 For Fishery
Doppler Current Graph Type KDG-300 For Fishery

KDG-300 general specifications

Main function
Measurement methodThe 4-beam system using ultrasonic pulses
Frequency140 kHz
Power supplyAC100V/ AC110V/ AC220V, 50/60Hz, Single Phase
Power Consumption180VA or less
Operating Environment00C -+500C
Ship Speed-Current Measurement Functions
Number of Measurement LayerMax. 5 Layers (Ground Measurement/Log Measurement)
Distance Under the bottomWithin 80% of the sea depth ranging from 3m to 220m (depending on the sea conditions)
Measurement MethodSimultaneous measurement with the current and deviation current
Measurement Range0-9.9 Knot
Measurement ResolutionMin. 0.1 Knot
Distance under Ship Bottom
Ship Speed to the BottomMax.450m (depending on bottom sediments)
Ship Speed to Water15m or deeper
Measurement Range0 knot – 30 knot
Ship Speed Measurement ResolutionMin. 0.1 Knot
Cruise Accumulated Range0-9999.9nm
Display Function
FunctionsCurrent, Ship Speed, Water Depth, Fish School, 3D-Current, Trend Graph, Check Mode
Display ModeVector, Textual, DCG-200 compatible, Ship speed, Stereoscopic 3D, Echogram
Textual DisplayCurrent Speed, Current Direction, Measuring Depth, Water Depth, Ship Speed, Cruise, Own Boat Position, Course, Heading, Date & Time, Deviation Current
Trend-graph DisplayCurrent, Deviation Current, Ship Speed, Water Depth, Water Temp. (when imputting data)
External Interface
NMEA InputGPS Data (GGA, GLL, VTG), Heading Data (HDT, HDG, HDM).

Water Temperature Data (MTW), Water Depth Data (DBT, DBS)

External Synchronization InputShip Speed Current Data (VTG, VHW, VBW, DDT, CUR)
NMEA Output
Log Pulse (200p/n.m.) Output
External Synchronization Output-GIF Output

Read more : Fish Finder Echo Sounder Type KCE-300

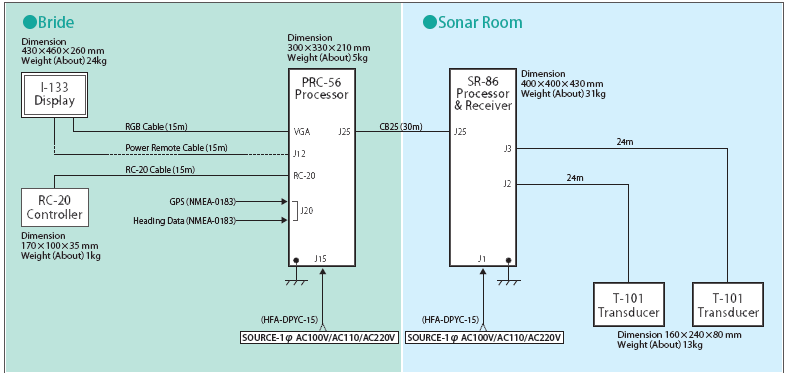

Standard Connection Diagram

Standard Connection Diagram
Standard Connection Diagram

Diverse new functions make this the Droppler Current Graph fishermen have been waiting for-…

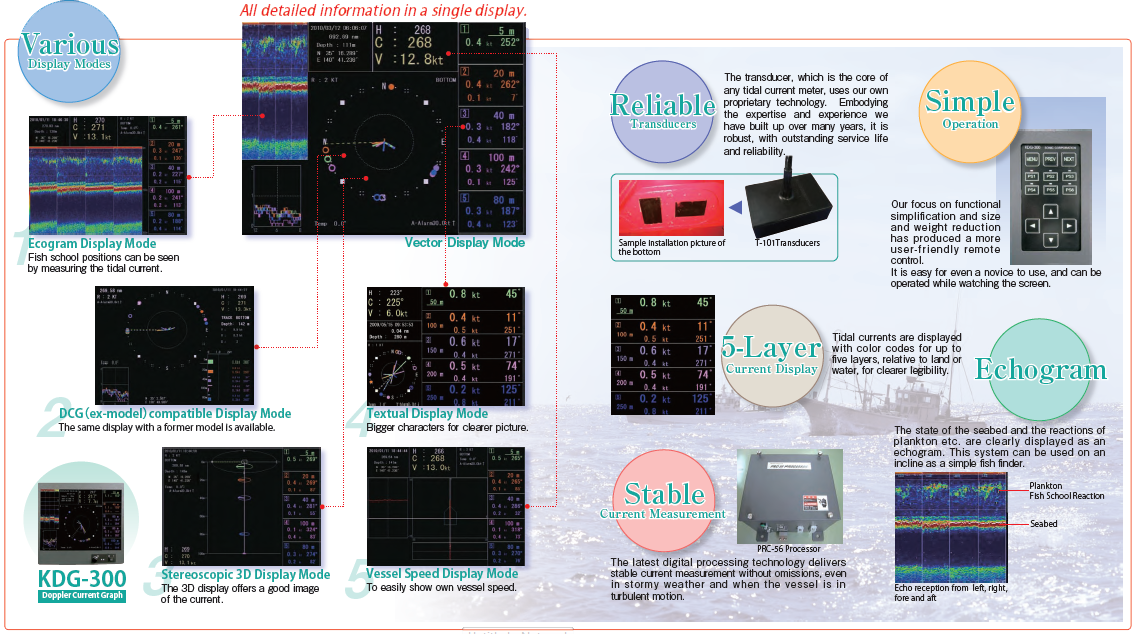

All detailed inform in a single display of doppler current graph type KDG-300 for fishery
All detailed inform in a single display of doppler current graph type KDG-300 for fishery

Read more : Scanning sonar type KCS-3000/KCS-3500 for fishery
