The sturdy construction of the TRG turbine flow meter means high performance and longer service life at an affordable price. This is the ideal turbine flow meter for monitoring solvents and other lower viscosity fluids, such as antifreeze and fuel measurement.
The sturdy construction of the TRG turbine flow meter means high performance and longer service life at an affordable price. This is the ideal turbine flow meter for monitoring solvents and other lower viscosity fluids, such as antifreeze and fuel measurement. With 20 flow ranges to choose from this meter is suitable for many of the turbine flow measurement scenarios out there. This series was designed for easy cleaning and maintenance with only one moving part.
Description :
- Rugged & Cost-Effective : The sturdy construction of this turbine flow meter means high performance and longer service life at an affordable price.
- Industry Standard : The TRG Series flow meter comes with a standard NPT end connection for universal applications. Versatile This meter is capable of measuring flow in line sizes from 1/2” to 2”.
- Electronic Integration : This meter can provide displayed flow rate, totalization, current or voltage outputs through a variety of compatible electronics.
- Simplified Maintenance : The TRG Series was designed with only one moving part for easy cleaning and maintenance.
- Explosion Proof (EX) Options Available.

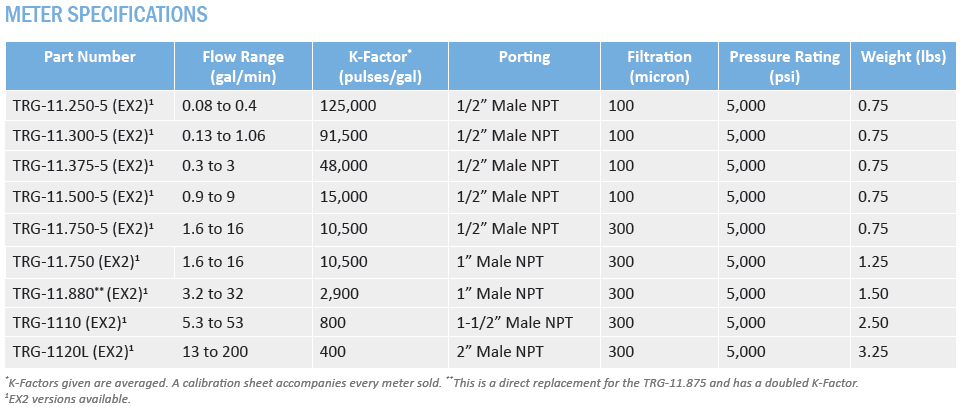

Technical Specifications :
MEASURING ACCURACY: ± 1.0% of reading or better
REPEATABILITY : ± 0.1%
FLOW MEASURING RANGES :
.08 to .4 GPM
.13 to 1.06 GPM
.3 to 3 GPM
.9 to 9 GPM
1.6 to 16 GPM
3.2 to 32 GPM
5.3 to 53 GPM
13 to 200 GPM
TURN DOWN RATIO : 10:1
MAXIMUM OPERATING PRESSURE : Working pressure up to 5,000 psi.
MAXIMUM OPERATING TEMPERATURE : Fluid temperature of -150° to 450˚F.
STANDARD CALIBRATION MEDIA : Tap water @ 70˚F Temperature.
END CONNECTIONS : NPT
MATERIALS OF CONSTRUCTION :
Body : 316L Stainless Steel.
Rotor Support : 303 Stainless Steel.
Rotor Shaft : Tungsten Carbide.
Impeller : 420 Stainless Steel.
BENEFITS
- Rugged & Cost-Effective : The sturdy construction of this turbine flow meter means high performance and longer service life at an affordable price.
- Industry Standard : The TRG Series flow meter comes with a standard NPT end connection for universal applications.
- Versatile : This meter is capable of measuring flow in line sizes from 1/2” to 2”.
- Electronic Integration : This meter can provide displayed flow rate, totalization, current or voltage outputs through a variety of compatible electronics.
- Simplified Maintenance : The TRG Series was designed with only one moving part for easy cleaning and maintenance.

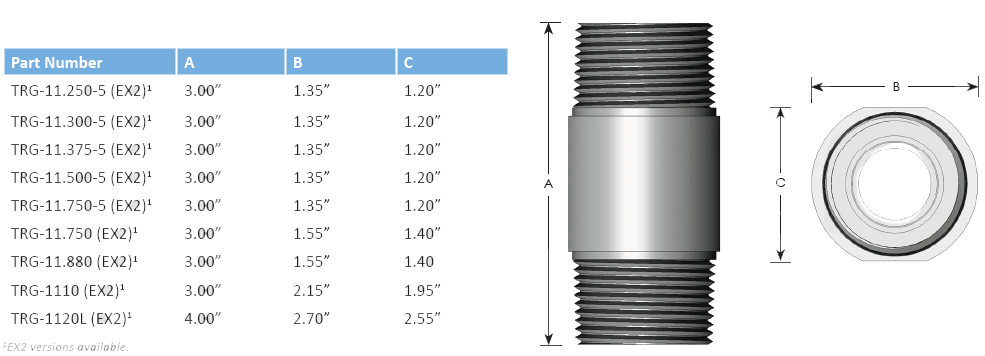

STANDARD TURBINE FLOW METER – TRG SERIES
