HM High Pressure Turbine Flow Meter

- Advertisement -

The HM series of turbine flow meters is ideal when measuring the flow of fluids under high pressure, such as in hydraulic testing. It is also perfect for chemical injection systems, as it withstands pressures up to 20,000 psi and is available in a variety of flow ranges (0.08 to 32 gallons/minute). Standard process connections are AutoClave®, but are also available in Grayloc® and Techlok®. A complete line of hazardous area approved sensors and displays are available as well.

  • Measuring Accuracy : ±1.0% of reading or better.
  • 9 Flow Ranges : 0.08 to 32 GPM.
  • Pressure Rating : Working pressure up to 20,000 psi.
  • Temperature Rating : Depends on sensor used.
Description :
  • Industry Standard : Standard end connections are AutoClave®, (also available in Grayloc® and Techlok®.)
  • High Pressure Suitable : The HM Series of turbine flow meters can handle low viscosity fluids flowing under extremely high pressures, such as hydraulic and fuel systems and offshore chemical injection systems.
  • Hazardous Area Approved Sensors : A complete line of hazardous area approved sensors and displays are available for the HM Series meters.
  • Durable & Cost-Effective : This meter’s rugged stainless steel construction provides a durable and economic flow metering solution to sanitary environments.
  • Explosion Proof (EX) Options Available

Technical Specification :

HM HIGH PRESSURE TURBINE FLOW METER
HM HIGH PRESSURE TURBINE FLOW METER

MEASURING ACCURACY : ± 1.0% of reading or better

REPEATABILITY : ± 0.05%

FLOW MEASURING RANGES :

.08 to .4 GPM
.13 to 1.05 GPM
.2 to 1.6 GPM
.3 to 2.6 GPM
.5 to 5 GPM
.9 to 9 GPM
1.6 to 16 GPM
2.25 to 22.5 GPM
3.2 to 32 GPM

TURN DOWN RATIO : 10:1

MAXIMUM OPERATING PRESSURE : Working pressure up to 20,000 psi.

MAXIMUM OPERATING TEMPERATURE : Depends on sensor used, refer to sensor page.

FILTRATION REQUIREMENT : 300 microns.

END CONNECTIONS : Medium pressure AutoClave®

MATERIALS OF CONSTRUCTION :

Body : 316 Ti Stainless Steel.
Rotor Support : 316 Ti Stainless Steel.
Rotor : 329 Stainless Steel.
Bearings/Shaft : Tungsten Carbide.

BENEFITS

  1. Industry Standard : Standard end connections are AutoClave®, (also available in Grayloc® and Techlok®.)
  2. High Pressure Suitable : The HM Series of turbine flow meters can handle low viscosity fluids flowing under extremely high pressures, such as hydraulic and fuel systems and offshore chemical injection systems.
  3. Hazardous Area Approved Sensors : A complete line of hazardous area approved sensors and displays are available for the HM Series meters.

Durable & Cost-Effective : This meter’s rugged stainless steel construction provides a durable and economic flow metering solution to sanitary environments.

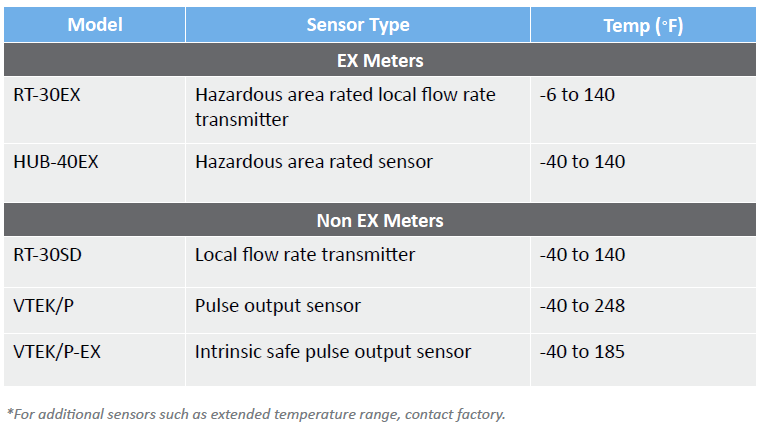

Recommended Sensors
Recommended Sensors

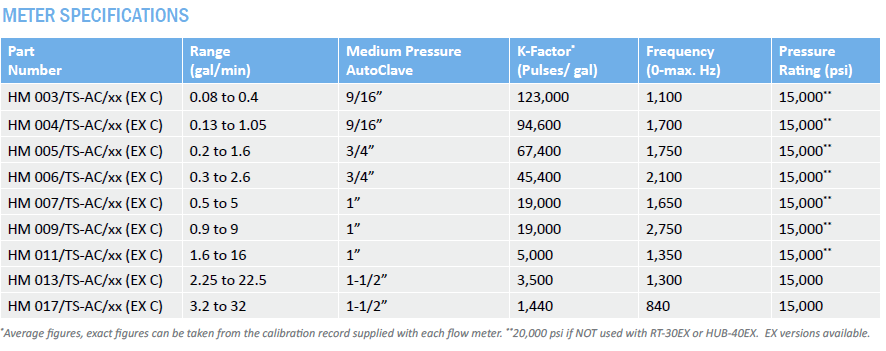

Meter Specification High Pressure Turbine Flowmeter
Meter Specification

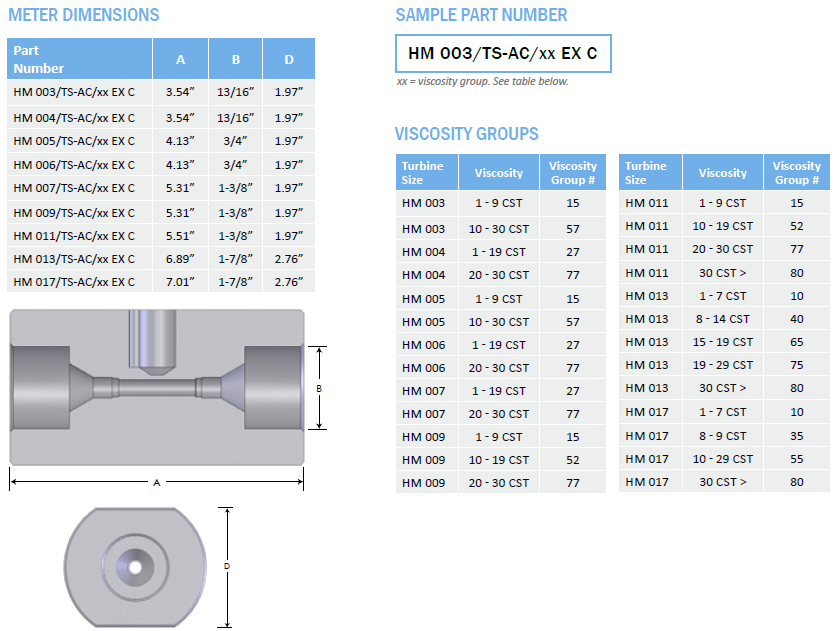

Meter Dimension and Sample Part Number
Meter Dimension and Sample Part Number
