New Evolution R4 Performance Tuned Software

Evolution Autopilots

A New Level of Autopilot Control

Race, cruise or fish – Evolution will take command

No fuss, easy to install and robust – the Evolution autopilot combines Raymarine’s autopilot expertise, FLIR Systems’ R&D, and advanced aerospace guidance technology to create Evolution Ai control algorithms that deliver a new level of accurate autopilot control.

Key Features

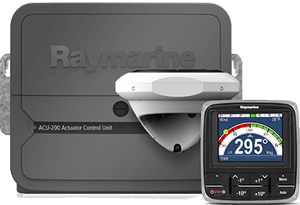

Evolution Group 500 Raymarine
Evolution Group 500 Raymarine
  • Automagic™ – No lengthy calibration procedures to perform. No compass calibration required. Plug and play connections.
  • Easy to install – Freedom from the restrictions of conventional heading sensors. EV sensor core can be installed above or below deck. Install upside-down or off the vessel’s centre line.
  • Aerospace technology – 9-axis precision monitoring of pitch, roll, yaw and heading.
  • Fuel efficient – Evolution autopilots steer so accurately they will save fuel and get you to your destination faster.

The EV Sensor Core

At the centre of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

EV Sensor Core Benefits

  • Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change.
  • Flexible installation options. Mount above or below deck.
  • Simple SeaTalkng connectivity to the control head and ACU.
  • Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions.
  • Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes.
  • Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays.

Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering type :

ITEMSupported Drives
ACU-100Wheel, tiller and 0.5 ltr Hydraulic
NEW: ACU-150Type-1 Hydraulic Drive Unit
ACU-200Type 1 Raymarine hydraulic, linear and rotary mechanical drives
ACU-300For solenoid controlled steering systems and Raymarine constant running hydraulic pumps
ACU-400Type 2 and 3 Raymarine hydraulic, linear, and rotary mechanical drives

NEW ACU 150

The Raymarine ACU-150 is a component of the Evolution™ Autopilot system and is designed to provide power and control to a Raymarine Type-1 Hydraulic Drive Unit (M81120.)

The ACU-150 connects to the SeaTalkng network for communication with its other peripherals. It also has connections for an optional Rudder Reference Unit (sold separately.) The ACU-150 works on 12-volt DC systems only.

To make a complete ACU-150 autopilot system you must also add the Type-1 Hydraulic Drive Unit (M81120), Evolution EV1 Sensor Core (E70096), Evolution Cable Kit (R70160) and either the p70s (E70328) or p70Rs (E70329) autopilot control head.

Your Evolution autopilot system

EV-1 Cockpit and Inboard Autopilots

EV-1 autopilots consist of a Control Head, EV-1 Sensor, Autopilot Control Unit (ACU) and drive unit. The drive unit (inboard mechanical/ hydraulic or cockpit mounted) and correct ACU for your vessel is dependent on the steering system and displacement of the vessel itself.

EV-1 Cockpit and Inboard Autopilots
EV-1 Cockpit and Inboard Autopilots



EV-2 for Drive-by-Wire Propulsion

EV-2 has been designed for the latest drive-by-wire steering systems and connects directly to Raymarine’s SeaTalkng bus. EV-2 also has a dedicated CAN Bus port for direct connection to steer-by-wire steering systems – such as ZF Pod Drives, Yamaha Helm Master, Volvo IPS and SeaStar Solutions Optimus systems. A single CAN Bus connection to the EV-2 eliminates the need for an Autopilot Control Unit (ACU) further simplifying installation.

EV-2 for Drive-by-Wire Propulsion
EV-2 for Drive-by-Wire Propulsion



Find out more in the ordering information section or contact your local Raymarine dealer for further assistance.

Autopilot Control

New Control Heads
New Control Heads

p70 / p70R and the new p70s / p70Rs autopilot control heads

Complete your Evolution autopilot system with an autopilot control. The new p70s and p70Rs control heads feature vibrant colour displays and are powered by Raymarine’s intuitive LightHouse user interface.

LightHouse organises all options into simple menu structures and with Evolution’s quick setup process you will be up and running in minutes.

Designed for sailing yachts, the p70s offers simple 1 and 10 degree direct course change push buttons.

The p70Rs features a rotary dial control for power boaters. Use the rotary dial for menu and course changes or activate power steer mode and steer manually right from the p70Rs.

Autopilot control from Raymarine MFDs

Control your Evolution Autopilot directly from your Raymarine aSeries, cSeries, eSeries or gS Series multifunction display. Note that your multifunction display must be running Raymarine’s LightHouse II software and that some autopilot functionality may not be available if your system does not include a dedicated autopilot control head.

Evolution Autopilot Specifications

EV1 and EV2 Sensor Core

EV1 and EV2 Sensor Core HeadingSensor
EV1 and EV2 Sensor Core HeadingSensor
EV-1 & EV-2 SPECIFICATIONS
Dimensions

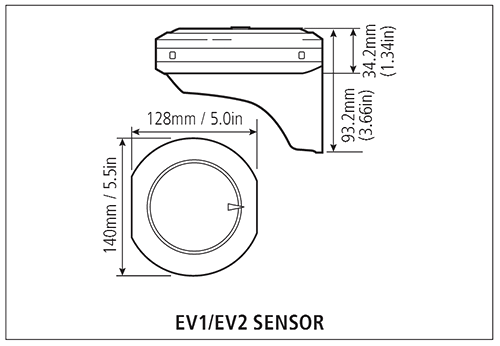

EV1 and EV2 Sensor Core Dimension
EV1 and EV2 Sensor Core Dimension
DimensionsDiameter: 140 mm (5.5 in)
Depth (including mounting enclosure): 35 mm (1.4 in)
Depth (including wall bracket): 95 mm (3.8 in)
Nominal supply voltage12 V (powered by SeaTalkng system)
Operating voltage range10.8 V to 15.6 V dc
Power consumption
(taken from SeaTalkng system)
30 mA
SeaTalkng LEN
(Load Equivalency Number)
1
Sensors3-axis digital accelerometer | 3-axis digital compass | 3-axis gyro digital angular rate sensor
Data connectionsSeaTalkng | NMEA 2000 DeviceNet (EV-2 only)
Installation environmentalOperating temperature: -20ºC to +55ºC (-4ºF to +131ºF)
Storage temperature: -30ºC to +70ºC (-22ºF to +158ºF)
Relative humidity: max 93%
Waterproof rating: IPX 6
Weight0.29 kg (0.64 lbs)
EMC complianceEurope: 2004/108/EC | Australia and New Zealand

Evolution Group 500 Raymarine
Evolution Group 500 Raymarine
ITEMACU SPECIFICATIONS
Dimensions

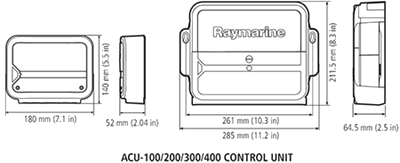

ACU Dimensions
ACU Dimensions
ACU-100ACU-150ACU-200ACU-300ACU-400
Nominal power supply12 V12 V or 24 V
Operating voltage range10.8 V to 15.6 V dc10.8 V to 31.2 V dc
Drive current outputMaximum continuous 7 A at supply voltageMaximum continuous 12 A at supply voltageMaximum continuous 15 A at supply voltageMaximum continuous 5 A at supply voltageMaximum continuous 30 A at supply voltage
Drive clutch outputNo clutch connectionNo clutch connectionUp to 2.0 A continuous, selectable between 12/24 VNo clutch connectionUp to 4 A continuous at – 12 V on 12 V systems, 24 V on 24 V systems, 12 V on 24 V systems
ConnectionsRudder reference sensor, Power, Drive motor, GroundRudder reference sensor, Power, Drive motor, GroundRudder reference sensor, Sleep switch, Power, Drive motor, Drive clutch, GroundRudder reference sensor, Sleep switch, Power, Solenoid drive out/ return, GroundRudder reference sensor, Sleep switch, Power, Drive motor, Drive clutch, Ground, Digital Input/Output
Power consumption (standby) main power supply300 mA (12 V)300 mA (12/24 V)
Power consumption (standby) SeaTalkng power supplyNo power supply to SeaTalkng20 mA (12 V)
SeaTalkng LEN (Load Equivalency Number)1
SeaTalkng power outNo power supply to SeaTalkng3 A at 12 V (fuse protected at 3 A)
Data connectionsSeaTalkng
Installation environmentOperating temperature: -20ºC to +55ºC (-4ºF to +131ºF) | Storage temperature: -30ºC to +70ºC (-22ºF to +158ºF) | Relative humidity: max 93%
Waterproof ratingConnector panel – IPX2, Drive electronics – IPX6Drip resistant
Weight0.6 kg (1.32 lbs)2.2kg (4.84 lbs)
ConformanceEurope: 2004/108/EC | Australia and New Zealand: C-Tick, Compliance Level 2

Evolution Autopilot Ordering Information

Evolution Autopilots can be purchased as a system pack with a drive unit, a system pack without a drive unit or as individual components. If you are unsure what you require, speak with your local dealer who will be able to offer advice and suggest the best package for your vessel.

Evolution System Packs with Drives

Evolution System Packs with Drives
Evolution System Packs with Drives

Picture above shows EV-100 Tiller Pilot pack.

Select a part number to learn more about what is included in each Evolution System Pack

Part NumberDescriptionDesigned for
T70154EV-100 Power:
Evolution Hydraulic Pilot with p70Rs, ACU-100 & 0.5l hydraulic pump
Small power boats
T70153EV-100 Tiller:
Evolution Tiller Pilot with p70, ACU-100 & Tiller Drive
Small tiller drive sail boats
T70152EV-100 Wheel:
Evolution Wheel Pilot with p70, ACU-100 & Wheel Drive
Small wheel drive sail boats
T70330NEW EV-150 Hydraulic:
Evolution Autopilot with p70Rs, EV1 Sensor Core, ACU-150 & Type 1 Hydraulic Pump
Small to medium sized vessels with hydraulic steering
T70157EV-200 Hydraulic:
Evolution Autopilot with p70Rs, ACU-200 & Type 1 Hydraulic pump
Mid-sized power vessels with hydraulic steering
T70158EV-200 Linear:
Evolution Autopilot with p70, ACU-200 & Type 1 Mechanical Linear Drive
Mid-sized sailing vessels with mechanical steering

Evolution System Packs (Drive unit not included)

Evolution System Packs without Drives | Raymarine

Select a part number to learn more about what is included in each system pack :

Part NumberDescriptionDesigned for
T70155EV-200 Sail:
Evolution Autopilot with p70 & ACU-200
Mid-size sailing vessels and Type 1 Drives
T70156EV-200 Power:
Evolution Autopilot with p70R & ACU-200
Mid-size power vessels and Type 1 Drives
T70160EV-300 Solenoid:
Evolution Solenoid Autopilot with p70R & ACU-300
Vessels with solenoid controlled steering
T70164EV-DBW:
Evolution DBW Autopilot with p70R
Vessels with the latest generation of Drive By Wire steering systems
T70214EV-DBW:
Evolution DBW Autopilot with p70R
Vessels with direct Volvo IPS / Aquamatic system connections
T70161EV-400 Sail:
Evolution Autopilot with p70 & ACU-400
Large sailing vessels and Type 2 and Type 3 Drives
T70162EV-400 Power:
Evolution Autopilot with p70R & ACU-400
Large power vessels and Type 2 and Type 3 Drives

Evolution Components

Part NumberDescription
Evolution Sensor Core
E70096Evolution EV1 Sensor Core
E70097Evolution EV2 Sensor Core
Actuator Control Units (ACU)
E70098ACU-100 Actuator Control Unit
E70430ACU-150 Actuator Control Unit
E70099ACU-200 Actuator Control Unit
E70139ACU-300 Actuator Control Unit
E70100ACU-400 Actuator Control Unit
Autopilot Control Units (see related products for more information)
E22166p70 Autopilot Control Head (Sail)
E22167p70R Autopilot Control Head (Power)

Software for your Evolution Autopilot

For best performance we recommend that all components of your Evolution Autopilot system are running the latest software. To ensure you have all the latest features you should also ensure that your connected Multifunction Display is updated to the latest software.
