R5 Supreme AIS (Automatic Identification System)

- Advertisement -

The SAAB R5 SUPREME AIS system is designed for SOLAS vessels and advanced applications such as Secure and Warship AIS. It fully utilises SAAB’s fifth generation transponder technology, building on the success of the R4 AIS system, which is deployed on over 20,000 ships.
The R5 system features cutting-edge digital radio design. Sharing radio technology with military grade systems, the R5 technology is a major leap forward into the future of AIS radios. The large colour touch-screen display and multitude of interfaces make the system appropriate for integration into modern networked bridge solutions.

Highlights :

  • 7” ultra-bright high contrast colour LCD.
  • Touch screen, keypad and USB keyboard support.
  • Ethernet, RS-422 and USB interfaces.
  • Load/save configuration with USB Memory.
  • Pilot Plug integrated in display.
  • Full AIS SART support.
  • VHF communication test function.
  • R4 Navigation Sensor Compatible.
  • Gimbal or flush mounting.
  • Water resistant design.
  • Alarm acknowledge binary port.
  • Dual AIS systems in Hot Standby configuration.

    R5 Supreme AIS (Automatic Identification System)
    R5 Supreme AIS (Automatic Identification System)

TECHNICAL SPECIFICATION

PHYSICAL
Transponder
Size W × H × D                            : 227x77x192 mm
Weight                                         : 2.05 kg

Display
Size W × H × D                            : 255x140x84 mm
Weight                                         : 1.6 kg
Resolution                                    : 800×480 (WVGA)
TFT                                               : IPS-Pro
Touch                                           : Resistive
Brightness                                    : 800 Nits
Power input                                  : 12/24 VDC

POWER CONSUMPTION
Transponder                                : 20 W (60 W peak)
Control & Display unit                 : 13 W

GPS RECEIVER (INTERNAL)

50 channels (Ready for DGPS)
Frequency                                    : L1 (1575.42 MHz)
Update rate                                 : 1 Hz
Antenna feed                               : 5 V DC
Position accuracy (SA off)
Position <2.0 m                           : DGPS (CEP)
Position <2.5 m                           : GPS (CEP)
Sensitivity                                    : Tracking –162 dBm
Cold Start –148 dBm

VHF TRANSCEIVER
AIS receivers                                : 3
DSC receivers                              : 1
AIS transmitters                          : 1
Frequency                                   : 155–163 MHz
Output power                             : 1/12.5 W (±1.5 dB)
Sensitivity                                    : <–111 dBm

ELECTRICAL INTERFACES
Transponder                                  : Ethernet 10/100 Mbit (LWE IEC 61162-450)
6 RS-422 I/O (NMEA / IEC 61162-1 Ed.4)
3 Digital In, 3 Digital Out (3x in + 3x out)
Alarm Relay
Alarm Relay Output
Alarm Ack Input
Silent switch
Display                                      : Ethernet 10/100 Mbit (LWE IEC 61162-450)
Pilot plug
USB Host 2.0
SDHC Reader
ENVIRONMENTAL DATA
IEC 60945 (Protected)
Operating temperature                : –15°C to 55°C
Storage temperature                    : –30°C to 80°C

STANDARDS

ITU-R M. 1371-4 (Class A) 2010
ITU-R M. 825-3, 1998
ITU-R M. 1084-5, 2012
IEC 61993-2 Ed.2, 2012
IEC 61108-1Ed 2.0 2003
IEC 60945 Ed. 4.0 2002 incl Corr .1 2008
IEC 61162-1 Ed 4.0 2010
IEC 61162-2 Ed 1.0, 1998
IEC 62288Ed 1.0. 2008

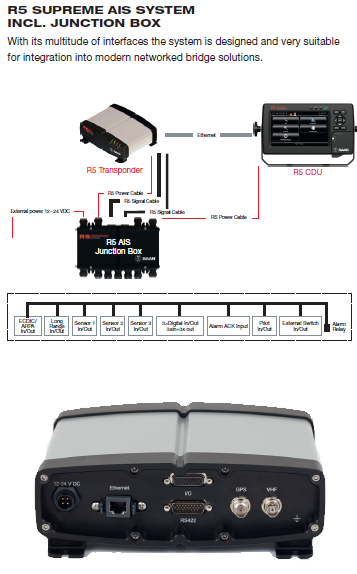

R5 SUPREME AIS SYSTEM INCL. JUNCTION BOX
R5 SUPREME AIS SYSTEM INCL. JUNCTION BOX



Read more : AIS – TRON AIS TR-8000 CLASS A COMPLETE WITH GPS ANTENNA; ICOM MA-500TR Class B Automatic Identification System (AIS) Transponder;SAILOR 6280/6281 AIS System (Automatic Identification System)FA-170 AIS (Automatic Identification System)
