A versatile and robust two-piece stainless steel ball valve suitable for a wide range of isolation applications. The quarter turn operation in conjunction with the PTFE seats provides fast positive isolation. This valve can be locked in either the open or closed position.

Approvals, Features & Benefits

• Face to face: DIN 3202 F4, EN 558-1-27.
• ATEX approved.
• ISO 5211 direct mounting pad.
• Lockable device when lever is fitted.
• Full bore.

Marine Ball Valves type Stainless Steel 2-Piece Ball Valve
Marine Ball Valves type Stainless Steel 2-Piece Ball Valve

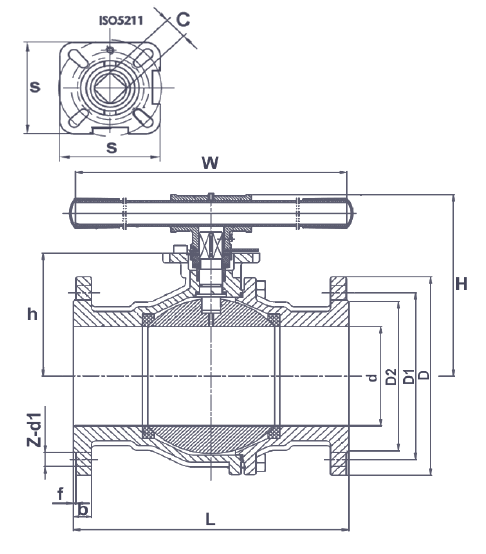

Marine Ball Valves type Stainless Steel 2-Piece Ball Valve Dimension
Marine Ball Valves type Stainless Steel 2-Piece Ball Valve Dimension

Pressure & Temperature

      • Pressure range : – PN16 rated.
      • Temperature range* : -25oC to 180oC
      • * Dependent on pressure.
DN 125 150 200
d 125 150 200
L 325 350 400
D 250 285 340
D1 210 240 295
D2 188 212 268
b 22 22 24
f 3 3 3
H 228 246 310
W 600 600 800
C 22 22 27
ISO5211 F10/F12 F10/F12 F12/F14
Z-d1 8 x Ø18 12 x Ø22 12 x Ø22
h 155 1,725 217
s 114 114 131
Torque* 250 375 500
Weight Kgs 4,843 68 11,817
  • Torque calculated at zero pressure includes 25% safety, add 25% for dry duty.

MATERIALS :

  • Body : Stainless Steel (CFM8).
  • Ball : Stainless Steel (316).
  • O-ring : Viton.
  • Seats : RPTFE (15%).
  • Stem : Stainless Steel (316).
