IMPA 792295 Explosion Proof Intrinsically Safe 4AA LED Flashlight EX-5180

1
202

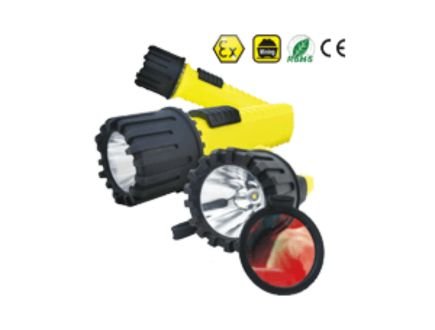

IMPA 792295 Explosion Proof Intrinsically Safe 4AA LED Flashlight EX-5180 with Red Color Filter
IMPA 792295 Explosion Proof Intrinsically Safe 4AA LED Flashlight EX-5180 with Red Color Filter

This Intrinsically Safe 4AA LED Flashlight EX-5180 is ATEX Directive certified for safe use in Zones 0, 1, and 2 explosive gas atmospheres and Zones 20, 21 & 22 potentially explosive dust atmospheres. Suitable for marine, gas & oil industry.

IMPA 792295 Explosion Proof Intrinsically Safe 4AA LED Flashlight EX-5180 with Red Color Filter
IMPA 792295 Explosion Proof Intrinsically Safe 4AA LED Flashlight EX-5180 with Red Color Filter

This high strength torch is extremely robust and reliable, with proven shock protection, rubber-armored lens ring, scratch, and chemical attack resistance lens, all sealed dust-tight and protected from water immersion, with an IP68 enclosure. The compact flashlight with a magnetic control switch for easier operation with single-hand. High/low output modes and supply with different color filters to meet the needs of multiple uses.

Its unique optics deliver a piercing white spot beam combined with a high power ‘fitted for life’ LED, giving a peak of up to 178 lumens light output. Four AA/LR06 primary alkaline cells provide a light duration of up to 8.75 hours.

EX-Mark: I M1 Ex ia I Ma
II 1G Ex ia op is IIC T4 Ga
II 1D Ex ia IIIC T135°C Da

Technical Detail :

  • Type of Protection: ‘ia’ Intrinsically Safe
  • Areas of Classification (Gases): Zone 0, 1 and 2, Gas Groups: IIA, IIB, and IIC
  • Areas of Classification (Dusts): Zone 20, 21 and 22, Dust Groups: IIIA, IIIB, and IIIC
  • Temperature Classification (Gases): T4
  • Temperature Classification (Dusts): 135°C
  • Ambient Temperature: -20°C~+40°C
  • Beam Type: Spot
  • Beam Distance: Up to 189 Meters
  • Output Mode: High/Low
  • Output: 178 Lumens (High) / 46 Lumens (Low) (effective lumens)
  • Light Duration: 8.75 hours (High) / 20.4 hours (Low)
  • Light Source Type: High efficiency LED
  • Power: 6V 3W
  • Power Source: 4xAA (LR6) Alkaline cells
  • Ingress Protection: IP68
  • Impact Resistant: 2 Meters
  • Product Weight: 150g (w/o battery)
