IMPA 330607 Explosion Proof Intrinsically Safe LED Safety Hand Lamp

1
96

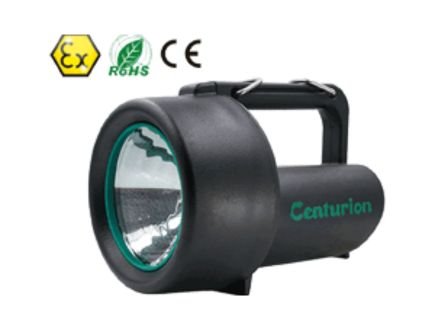

IMPA 330607 Explosion Proof LED Safety Hand Lamp EX-4DCL
IMPA 330607 Explosion Proof LED Safety Hand Lamp EX-4DCL

This EX-4DCL Explosion Proof Intrinsically Safe LED Safety Hand Lamp is ATEX Directive certified for safe use in hazardous locations in zones 1, 2, and zones 21, 22. IP66 waterproof and dustproof. This Application is widely used as mobile lighting in the petrochemical and offshore Industries, Fire-Fighting, Gas and Water Distribution, and other flammable and explosive locations.

IMPA 330607 Explosion Proof LED Safety Hand Lamp EX-4DCL
IMPA 330607 Explosion Proof LED Safety Hand Lamp EX-4DCL

The hand lamp uses a robust anti-static thermoplastic lamp enclosure and a high efficient LED bulb to provide brilliant cool white output. It is recommended to use alkaline cells because they have a significantly larger capacity and use brighter white light for 20 hours.

Equipped with a detachable shoulder strap.

Ex Mark: II 2G Ex ib op is IIC T4 Gb
II 2D Ex ib IIIC T135°C Db IP66

  • Type of Protection: ‘ib’ Intrinsically safe
  • Areas of Classification (Gases): Zone 1 and 2, Gas Groups: IIA, IIB, and IIC
  • Areas of Classification (Dusts): Zone 21 and 22, Dust Groups: IIIA, IIIB, and IIIC
  • Temperature Classification: T4
  • Maximum Surface Temperature (Dusts): 135°C
  • Ambient Temperature: -20°C to +40°C
  • Beam Type: Spot
  • Beam Distance: 50 Meters
  • Output: 45 Lumens **Effective lumens
  • Light Duration: Up to 20 hours
  • Light Source Type: LED Bulb (HL-250 Only)
  • Light Source Life: 25,000 Hours
  • Power: 6V, 1W
  • Power Source: 4 X LR20(D) Alkaline cells
  • IP Protection: IP66
  • Product Weight: 850g (without battery and shoulder strap)
  • Dimension: 134140188mm
  • Packing: 12 pieces per carton, size:474732cm

Read more : Centurion ATEX Explosion Proof Fluorescent Light
