AREAS OF APPLICATION RATO R

Flexibly mounted engines, rigidly mounted engines.

Complementary to the all-round RATO S coupling the highly flexible RATO R coupling has been specially designed for use in installations requiring a high level of torsional flexibility and misalignment capacity. Inherent features of the design include the high dynamic load capacity and good rotational dynamic properties due to the low rotating inertias. The area of application is primarily in high-speed main/PTO systems driven by a Diesel engine or electric motor. In the low to middle torque range where the handling and installation of a complete element is practicable the RATO R coupling is an additional alternative.

BENEFITS

  • Various torsional rigidities and element designs ensure excellent coordination of the torsional vibration and therefore availability of the drive system.
  • Soft circular diaphragms provide effective protection for the shaft bearing with axial vibration decoupling.
  • Excellent noise damping characteristics by avoiding direct metallic contact.

Performance Data

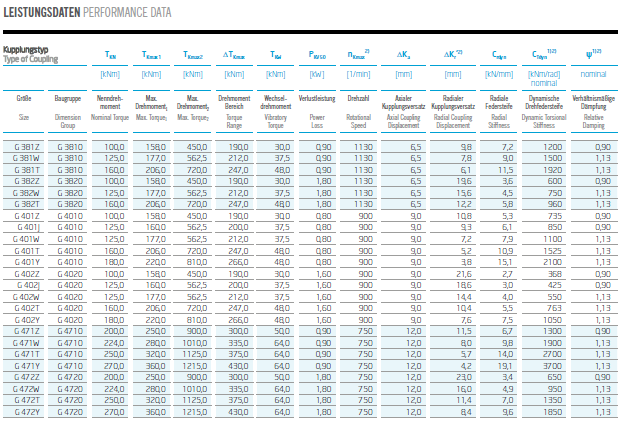

Performance Data of VULKANS Couplings RATO R

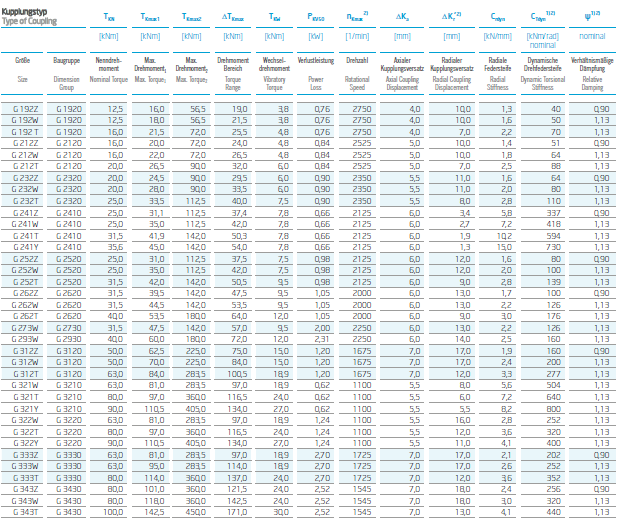

Performance Data of VULKANS Couplings RATO R

Performance Data of VULKANS Couplings RATO R
Performance Data of VULKANS Couplings RATO R

VULKANS Couplings RATO R type 2200
VULKANS Couplings RATO R type 2200

VULKANS Couplings RATO R type 2201
VULKANS Couplings RATO R type 2201

VULKANS Couplings RATO R type 2400
VULKANS Couplings RATO R type 2400
