AREAS OF APPLICATION RATO S+

Flexibly mounted engines, rigidly mounted engines.

The highly-flexible RATO S+ coupling is a torsionally flexible rubber coupling that compensates radial, axial and angular shaft displacements of the connected machinery. The torque is transmitted by elements loaded in shear. The different torsional stiffnesses and damping factors available provide the possibility to satisfactorily tune the torsional vibration behaviour of the drive system. The newly developed ACOTEC series products are characterized by improved performance in the essential technical data.

BENEFITS

  • Smaller coupling with higher power density ensures lower project costs thanks to a more favourable price-performance ratio.
  • Innovative design anticipates enhancements in the power and speed of the engines.
  • Reduced mean mass provides significant advantages for the weight of the lightweight construction required.

Performance Data

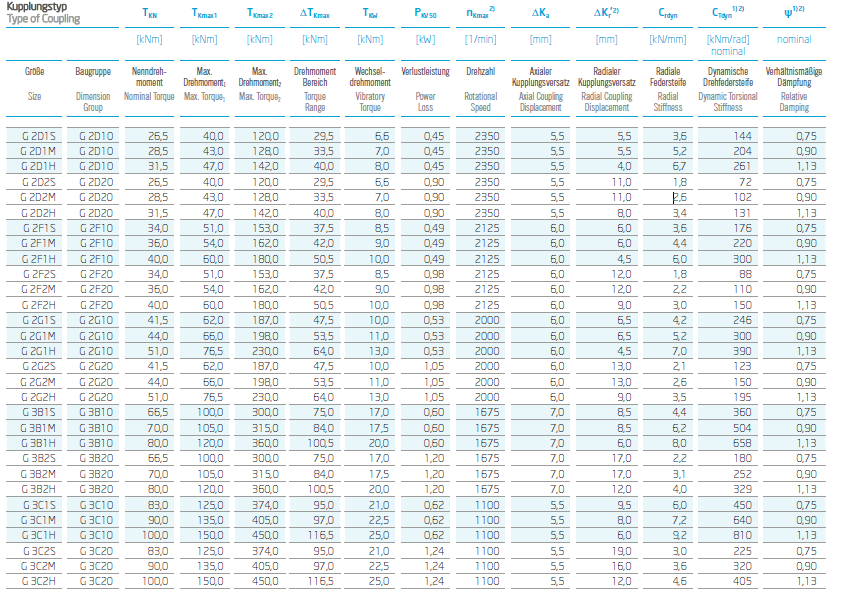

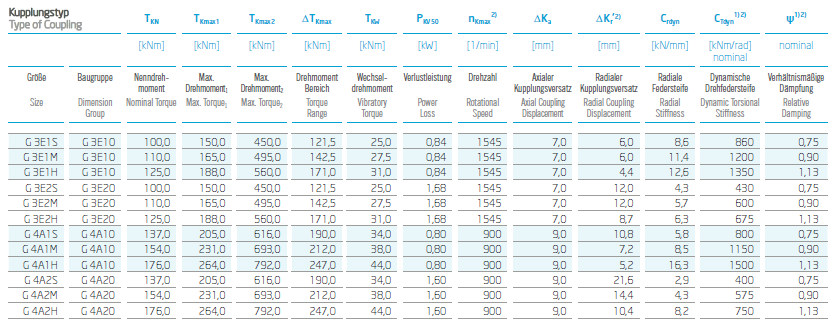

Performance Data of VULKANS Couplings RATO S+
Performance Data of VULKANS Couplings RATO S+

Performance Data of VULKANS Couplings RATO S+
Performance Data of VULKANS Couplings RATO S+

VULKANS Couplings RATO S+ type 2200
VULKANS Couplings RATO S+ type 2200

VULKANS Couplings RATO S+ type 2201
VULKANS Couplings RATO S+ type 2201

VULKANS Couplings RATO S+ type 2400
VULKANS Couplings RATO S+ type 2400
