Pneumatic Rubber Fender
Description
(1) High energy absorption.
The amount of energy absorbed is the main technical performance indicators fender instruments. With the ship’s tonnage growth, berthing operations, ship collision energy contact quay or other ships also doubled. Huge collision energy must rely on the contact area on the fender and enough to absorb sufficient deformation. Aohai rubber ship fender use compressed air as the buffer medium to absorb ship impact energy and have good elasticity.
(2) Ultra low back pressure.
The inside air of pneumatic fenders is low pressure gas, the internal pressure increase is very limited during compression deformation. Due to the large contact area, unit pressure acting on the ship hull surface is very low, compared with other fender instruments, is not the common low back pressure.
(3) Inclined contact, good adaptability.
Ship must have certain angle which have the possibility of contacting the side of the shore. As the inclined interface of sea inflatable fender, its adaptability is much higher than other fender.
(4) Floating performance is good, not subject to tidal influence, fender can be maintained in the ideal level.
Pneumatic fenders floating on the water surface (more than 50% of the volume), along with the change of position is not relative to the tidal fluctuation. Especially the ship as the waves rolling, cylindrical inflatable fenders with rolling, the friction force is very small. So it will not damage the coating surface of the hull, and also decrease the moving.
(5) Both end fender flange produced by special materials, acid and alkali resistance, oxidation resistance, not easy to rust.

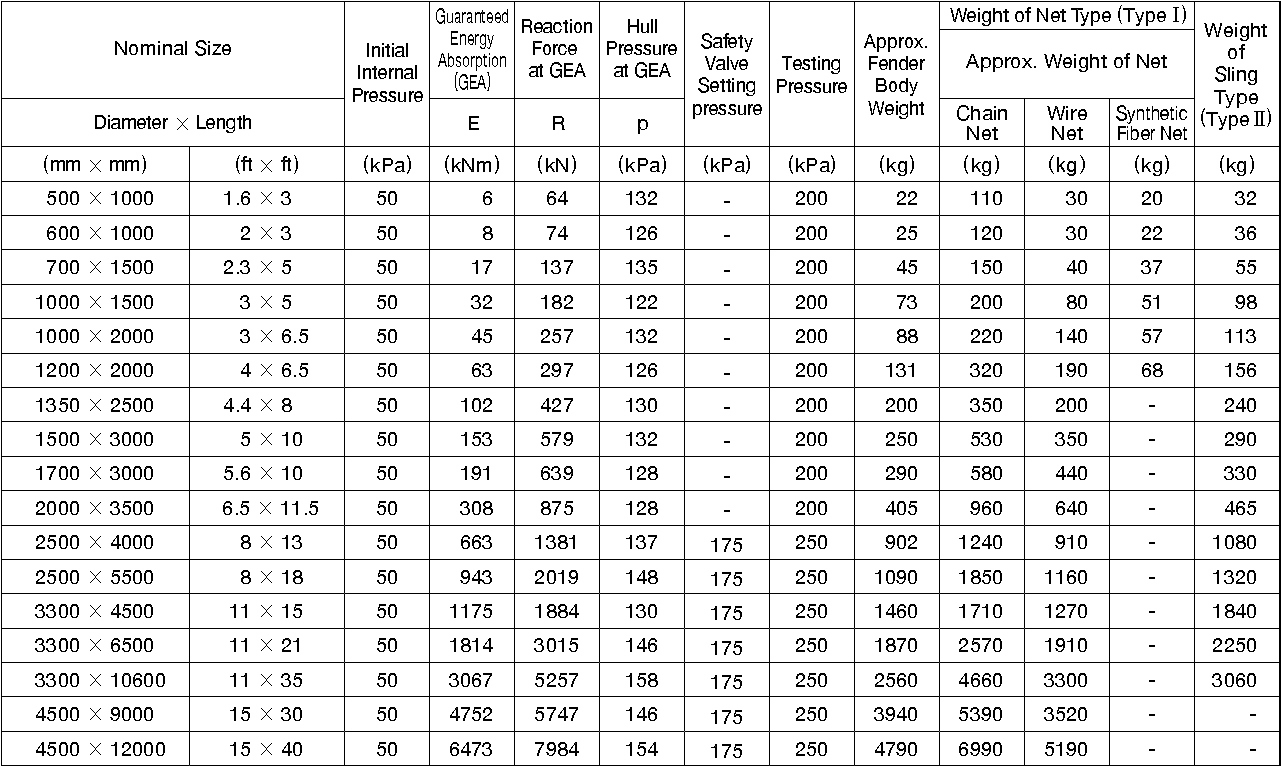

50Kpa Pneumatic rubber fender :
Solid rubber fender
Product Description
- More reasonable structure.
-
High E/R.H value.
-
Very suitable for the large wharf.
Cell fenders are best employed for small or large vessels where Reaction Force is an important criteria. Among all types of fenders, Cell fenders offer minimum reaction per ton-meter energy absorbed. The very geometric shape gives it sturdiness, shear resistance, compact structure and the capacity to absorb energy equally from all directions. The Cylindrical buckling column absorbs axial loads effectively and buckles radially. This results in multi-directional dispersion of energy. Cell fenders are the most durable rubber fenders available and are currently the largest moulded fenders made. 2000-2500 mm high cell fenders are typically used for LNG berths. In order to distribute the reaction force, cell fenders are typically supplied with large fender panels, which keeps the hull pressure low.
Specification
| Specification | H (mm) | ØW (mm) | ØB (mm) | D | nxd | Weight |
| SC400H | 400 | 650 | 550 | 25 | 4×30 | 78 |
| SC500H | 500 | 650 | 550 | 25 | 4×32 | 110 |
| SC630H | 630 | 840 | 700 | 25 | 4×39 | 230 |
| SC800H | 800 | 1050 | 900 | 30 | 6×40 | 410 |
| SC1000H | 1000 | 1300 | 1100 | 35 | 6×47 | 790 |
| SC1150H | 1150 | 1500 | 1300 | 37 | 6×50 | 1200 |
| SC1250H | 1250 | 1650 | 1450 | 40 | 6×53 | 1500 |
| SC1450H | 1450 | 1850 | 1650 | 42 | 6×61 | 2300 |
| SC1600H | 1600 | 2000 | 1800 | 45 | 8×61 | 3000 |
| SC1700H | 1700 | 2100 | 1900 | 50 | 8×66 | 3600 |
| SC2000H | 2000 | 2200 | 2000 | 50 | 8×74 | 5200 |
| SC2250H | 2250 | 2550 | 2300 | 57 | 10×74 | 7400 |
| SC2500H | 2500 | 2950 | 2700 | 70 | 10×74 | 10500 |
| C3000H | 3000 | 3350 | 3150 | 75 | 12×90 | 18500 |
Performance curve
Performance List
Packing
Packing Details : Nude packing/plastic packing/according to customers’ requirements.
Delivery Details : 7-30 days after order.
Our Certifications
Certificate: ISO ABS CCS KR LR GL RINA BV RS etc.
