In Line Check Valve in Bronze

- Advertisement -

Apollo Valves 61-505-01 – In-Line Check Valve – 1 in. Bronze.

The Apollo® CVBE “Soft Seat” check valves offer reliable tight shut-off protection against reverse flow and corrosion resistance using proven ASTM quality materials made in the USA.

This Apollo® 61-500/600 Series 61-505-01 – In-Line Check Valve – 1 in. Bronze is tested and tried under real-life field conditions and is ready for inception.

Features :

  • Size 1 in. FNPT.
  • Resilient EPR Soft Seat.
  • Superior Shut-off.
  • Spring Actuated.
  • Several Pressure Options.
  • Seat Material Options.
  • Made in the USA.

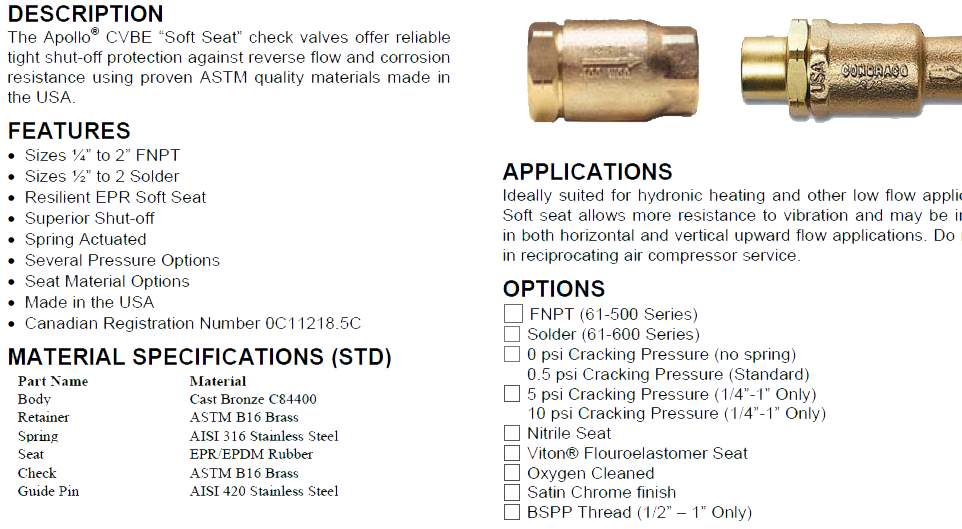

    Check Valve Model
    Check Valve Model

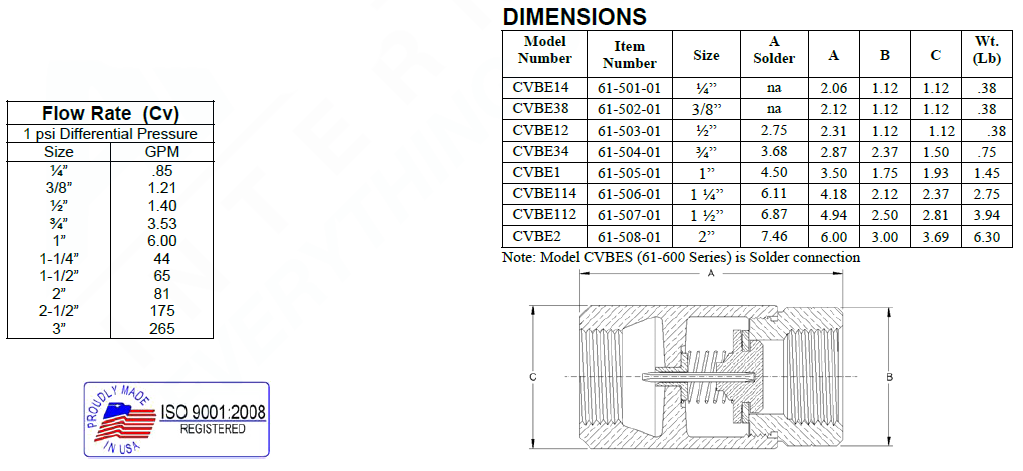

    Check Valve Dimension
    Check Valve Dimension

Read more : 316 Stainless Steel Ball Valve type Apollo Valves; Check Valve 1/4 inch Female NPTBall Valve Stainless Ball and Stem
