Submersible Pump with Tube Floatswitch for Marine
Submersible Pump with Tube Floatswitch for Marine

Lowara DOC 7VX GT Submersible Pump with Tube Floatswitch

Main Applications

  • Emptying of residential sump pits rainwater tanks or laundry drainage.
  • Garden and lawn irrigation with suction from rainwater tanks.
  • Emergency draining of flooded basements and garages.
  • Transfer of water from tanks cisterns and swimming pools.

Specifications

  • Maximum liquid temperature: 40°C with partially submerged pump.
  • Dry motor.
  • Maximum immersion depth: 5m.
  • Class B insulation.
  • IP68 protection.
  • The DOC 7 pump has a delivery of 180 l/min head up to 7m and passes suspended solids up to 20mm in diameter.
  • A ‘shallow suction device’ that can be mounted on both the DOC 3 and DOC 7 models is available. It ensures complete drainage of flooded floors (to 3mm from floor).
  • Motor Details: 230v 1ph 50Hz 0.55kW 0.75HP.
  • Built-in capacitor.
  • Thermal overload protection to stop pump supply in case of overheating.

Submersible Electric Pumps for drainage of clean and dirty water DOC Series

DOC pumps are versatile, corrosion-resistant and compact. Three basic versions are available with 0,25 to 0,55 kW power. A DOC 7VX version with Vortex impeller is available.

APPLICATIONS
• Emptying of residential sump pits, rainwater tanks or laundry drainage.
• Garden and lawn irrigation, with suction from rainwater tanks.
• Emergency draining of flooded basements and garages.
• Transfer of water from tanks and basins.

SPECIFICATIONS
• Maximum liquid temperature : 40°C.
• Dry motor cooled by the pumped liquid.
• Power cord :
– single-phase: with plug.
– three-phase: without plug.
• Insulation class 130°C (B).
• IPX8 protection.
• Maximum immersion depth : 5 m.

• The DOC3 pump features a flow rate up to 135 l/min, head up to 7 m, and passes suspended solids up to 10 mm in diameter. Only available in single-phase version.

• The DOC7 pump features a flow rate up to 225 l/min, head up to 11 m, and passes suspended solids up to 10 mm in diameter.

• The DOC7VX pump features a flow rate up to 175 l/min, head up to 7 m, and can handle liquids with suspended solids up to 20 mm in diameter.

• Versions:
– Single-phase: 220-240V, 50Hz 2 poles.
– Three-phase: 220-240V, 50Hz 2 poles, 380-415V, 50Hz 2 poles.
• The single-phase versions feature:
– pre-assembled float switch for automatic pump operation.
– built-in capacitor.
– thermal overload protection to stop pump supply in case of overheating.

• SG versions (single-phase without float switch), GT versions (single-phase with pre-assembled tube float switch), 60 Hz single-phase and three-phase versions, versions with various power cord lengths and various plugs are available on request.

• A “shallow-suction device”, that can be mounted on both the DOC3 and DOC7 models, is available on request. It ensures the complete
drainage of flooded floors (down to 3 mm from floor).

SOS KIT

The SOS Kit is available, for quick emergency dewatering of flooded basements, garages and residential buildings. The kit is composed of :

  • A single-phase DOC3 electric pump, equipped with float switch, 10 meters power cord with plug and a quick coupling already mounted for rapid hose connection.

  • 6 meters long flexible hose, complete with quick coupling already mounted for rapid pump connection.

  • Plastic box that can be used to store the kit on a shelf when not in use, or as a strainer during operation.

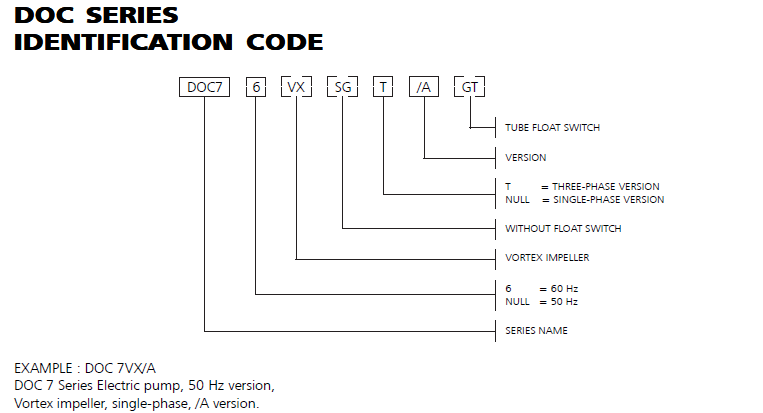

DOC SERIES IDENTIFICATION CODE
DOC SERIES IDENTIFICATION CODE

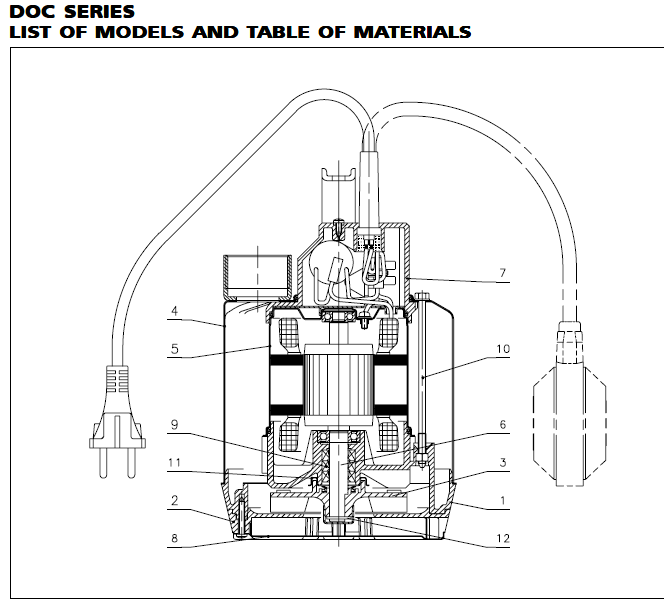

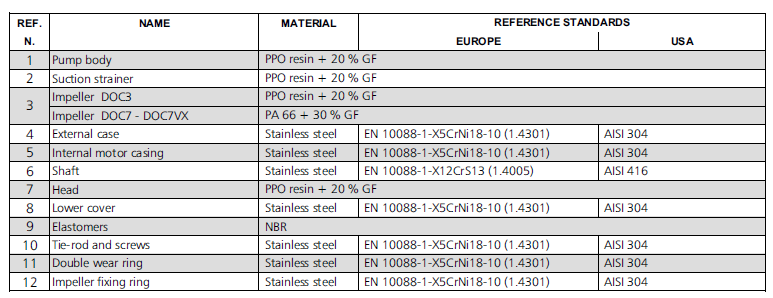

DOC SERIES LIST OF MODELS AND TABLE OF MATERIALS
DOC SERIES LIST OF MODELS AND TABLE OF MATERIALS
DOC SERIES LIST OF MODELS AND TABLE OF MATERIALS
DOC SERIES LIST OF MODELS AND TABLE OF MATERIALS

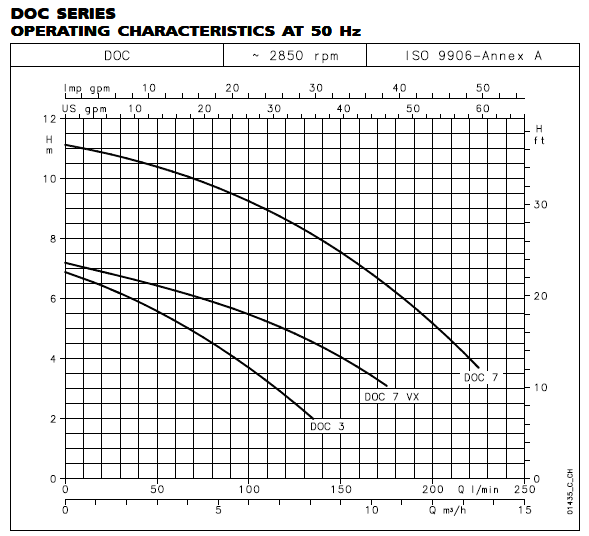

DOC SERIES OPERATING CHARACTERISTICS AT 50 Hz
DOC SERIES OPERATING CHARACTERISTICS AT 50 Hz

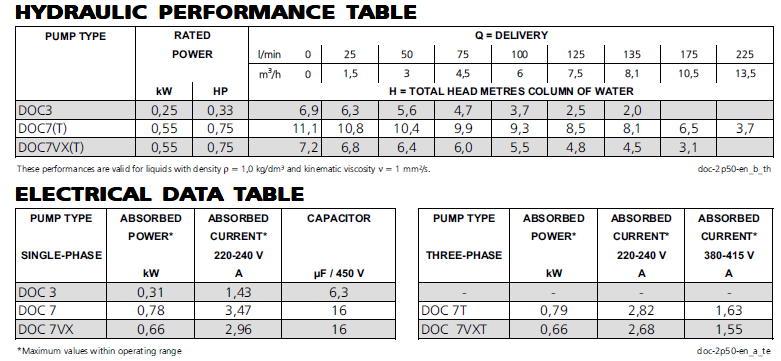

HYDRAULIC PERFORMANCE TABLE AND ELECTRIC DATA TABLE
HYDRAULIC PERFORMANCE TABLE AND ELECTRIC DATA TABLE

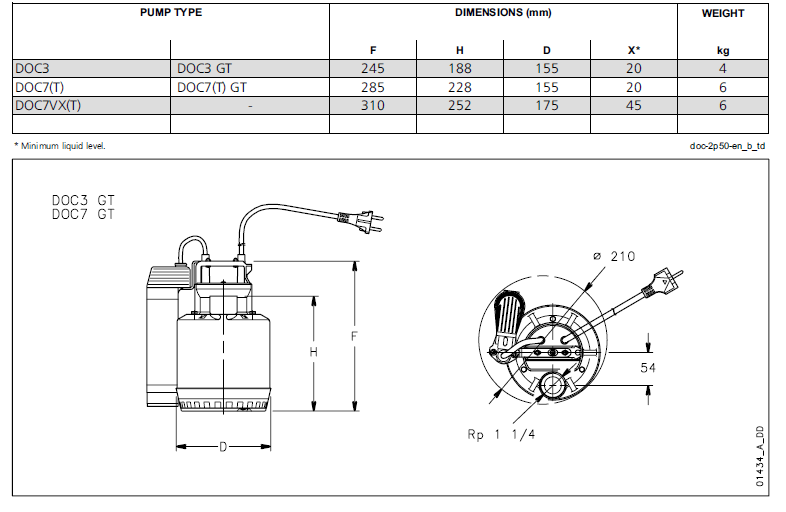

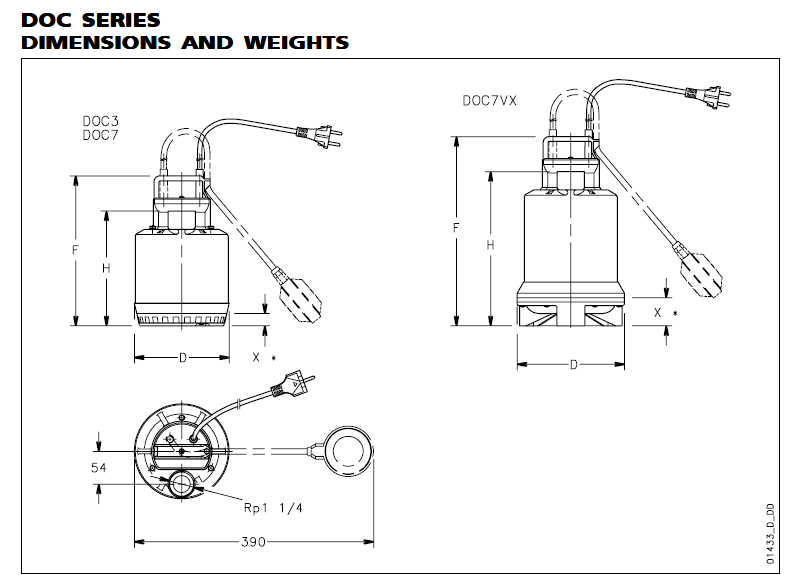

DOC SERIES DIMENSIONS AND WEIGHTS
DOC SERIES DIMENSIONS AND WEIGHTS
DOC SERIES DIMENSIONS AND WEIGHTS
DOC SERIES DIMENSIONS AND WEIGHTS

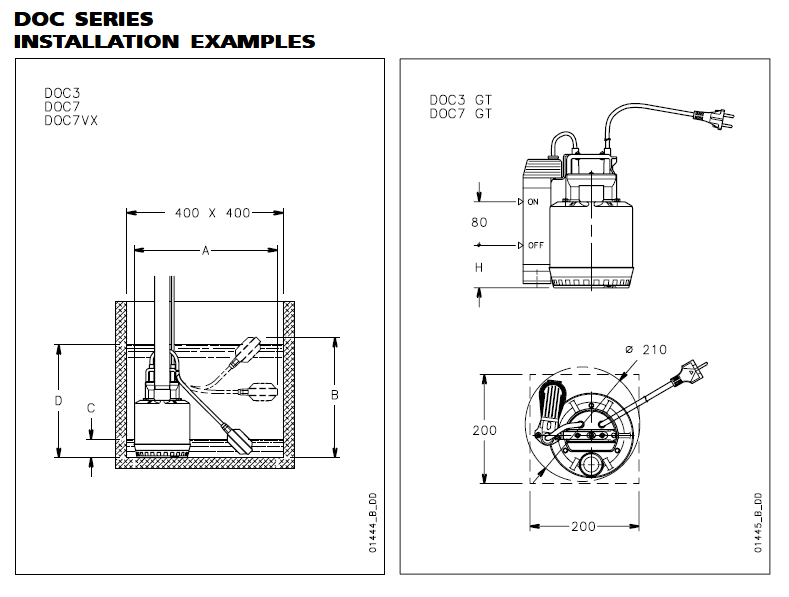

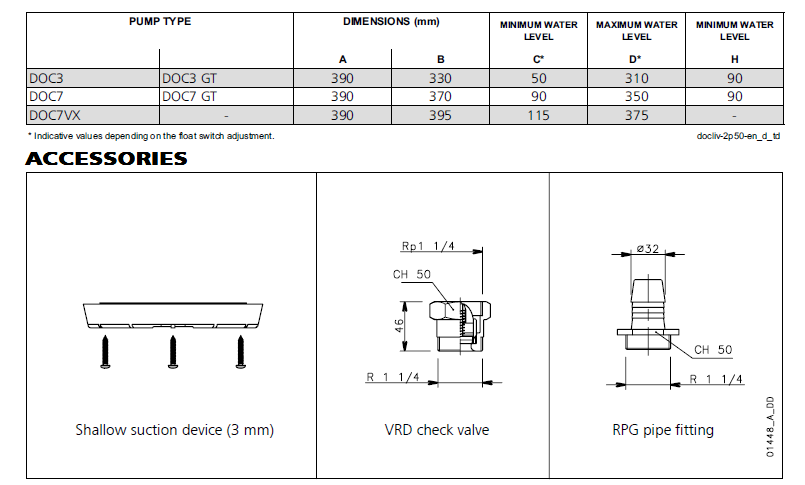

DOC SERIES INSTALLATION EXAMPLES
DOC SERIES INSTALLATION EXAMPLES
DOC SERIES INSTALLATION EXAMPLES
DOC SERIES INSTALLATION EXAMPLES
