VP Minor Fixed Tank Washing Machines Marine
VP Minor Fixed Tank Washing Machines Marine

VP Minor Fixed

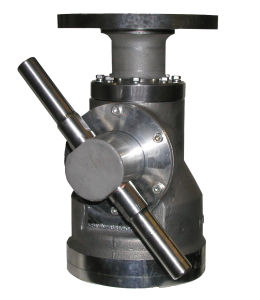

The VP Minor is a pre-programmed twin nozzle tank washing machine manufactured from 316 stainless steel. This unit is suitable for use on both small and medium crude oil, chemical and product tankers and can be supplied as either fixed or portable units. The VP Minor is also available as a ‘sealed for life’ machine which has been specifically designed to operate with aggressive / abrasive types of drive media. The ‘sealed for life machines’ are also the perfect choice when considering the cleaning of mud / slop tanks; this is due to the nature of the sealed gearbox design.

VP Minor Fixed Tank Washing Machines Marine
VP Minor Fixed Tank Washing Machines Marine

Machine Specification :

Wash PatternPre-programmable Rotary 360º
Jet Length Maximum17 mtrs (56 ft)
Jet Length Typical9-16 mtrs (30-52 ft)
Operating Pressure Maximum12 kg/cm² (170 psi)
Operating Pressure Typical6-10 kg/cm² (85-142 psi)
Flow Capacity Minimum7 m³/hr (31 US gal/min)
Flow Capacity Maximum19 m³/hr (84 US gal/min)
Wash Cycle TimeVariable on supply pressure (see table below)
Wash Cycle TypicalBetween 16-30 mins
Wash Cycle Type4 cycles for complete wash
Maximum Operating Temperature Installation95ºC (203ºF)
Minimum Deck OpeningØ 200mm (8.0 inches)

Std DIN 40 NP10 (Ø 150mm with 4x14mm holes on a 110

Minimum Deck ConnectionPCD)
Weight10.2 kgs (22.5 lbs)
