Pressure Gauge – Pressure Gauge 2.5 in. 0-5000 PSI 1/4 in. NPT

0
163
Marine Pressure Gauge Stainless Steel
Marine Pressure Gauge Stainless Steel

Model 212.53 Bourdon Tube Dry Case Pressure Gauge 2.5 in. 0-5000 PSI 1/4 in. NPT – Center Back Mount – No Flange.

Applications :

  1. Intended for adverse service conditions where pulsating or vibration exists (with liquid filling).
  2. Hydraulics & compressors.
  3. Suitable for gaseous or liquid media that will not obstruct the pressure system.
Marine Pressure Gauge
Marine Pressure Gauge

Features :

  • Stainless steel case.
  • Suitable for gaseous or liquid media that will not obstruct the pressure system.

Specifications:

  • Wika Model : 212.53 Dry Case.
  • Design : ASME B40.100 & EN 837-1.
  • Size : 2.5 in. Diameter.
  • Dual Range : 0-5000 PSI / 0-340 BAR.
  • Fitting Size : 1/4 in. NPT.
  • Mount : Center Back.
  • Flange : No Flange.
  • Restrictor/Snubber : Yes.
  • U-Clamp : No.
  • 304 Stainless Steel Case.
  • Bourdon Tube : C-shape copper alloy.
  • Movement : Copper alloy.
  • Dial : White ABS.
  • Pointer : Black aluminum.
  • Window: Polycarbonate with Buna-N gasket.
  • Accuracy Class : ± 2.5% of span (ASME B40.100 Grade A).
  • Operating Temperature :
    • Ambient : -40°F to +140°F (-40°C to +60°C).
    • Medium : +140°F (+60°C) maximum.
  • Temperature Error : Additional error when temperature changes from reference temperature of 68°F (20°C) ±0.4% for every 18°F (10°C) rising or falling. Percentage of span.
  • Weather Protection : Weather tight (NEMA 4X / IP 65).
  • Working pressure :
    • Steady: 3/4 full-scale value.
    • Fluctuating: 2/3 full-scale value.
    • Short time: full-scale value.
      Marine Pressure Gauge
      Marine Pressure Gauge

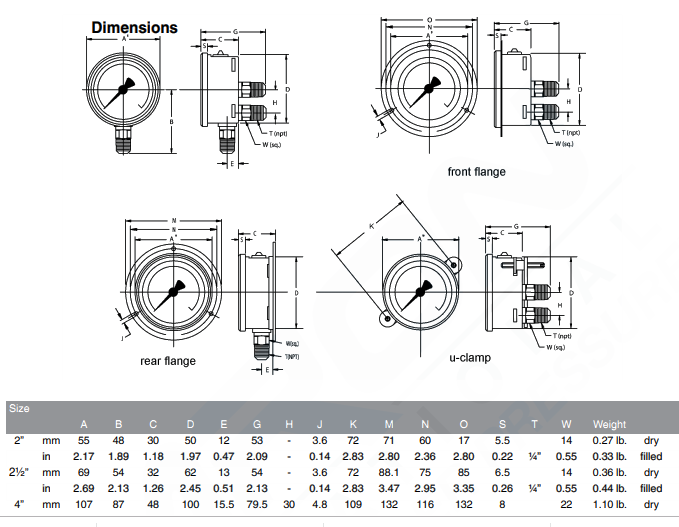

      Marine Pressure Gauge Dimension
      Marine Pressure Gauge Dimension
