Nuvair 26 NUV-8044.6 Open High Pressure Air Compressor – 20HP 400V 50HZ 3 Phase Open – 6000 PSI Maximum Pressure.

Description :

The Nuvair 26 Open High Pressure Air Compressor package is designed for high use in hot, humid conditions and is rated for continuous duty use up to 6000psi. It has the MCH36 four stage compressor block with a 26.4SCFM charging rate. Purchase, maintenance and operation costs are significantly lower than similar sized compressors in the market place.

This Nuvair 26 Open High Pressure Air Compressor features open configuration for easy access and cool running, grade E breathing air filtration, interstage pressure gauges, 4 fill whips, electric motor, and stainless steel intercoolers.

Open High Pressure Air Compressor type Nuvair 26 NUV-8044.6
Open High Pressure Air Compressor type Nuvair 26 NUV-8044.6

Features :

  • Open Configuration for easy access and cool running.
  • Operation Panel includes :
    • Start/Stop Button.
    • “Dial-A-Pressure” Automatic Shutdown.
    • Condensate Test Button.
    • High Temperature Display.
    • Automatic Shutdown for High Temperature and Low Oil.
    • Phase Control (Proper Rotaion) Recognition.
    • Wrong Voltage Recognition.
    • Hour Meter.
    • Stage and Oil Pressure Gauges.
  • Low Pressure Oil Pump, Filter and Oil Level Sight Gauge.
  • Large Stainless Steel Interstage Cooling Tubes with Large Condensate Separators.
  • Dual Filter Fitration 60,000 cu ft.
  • 6000 PSI (414 Bar) Max Pressure.
  • Interstage Pressure Gauges.
  • 4 Fill Whips.
  • Electric Motor.
  • Stainless Steel Intercoolers.

Options :

  • Visual CO & Moisture Indictator.
  • Audible and Visual CO and High Temp Alarm with Shutdown.
  • Filtration Upgradeable to 90,000 cu. ft.

Specifications :

  • Filling Time: Approx 3.3 minutes*
  • Cubic Feet Minutes : 22 FAD / 26.4 SCFM
  • Liters Minute : 623 FAD.
  • Engine : 3 Phase, 400V/E3/50 Hz, 20 Amp, 20 HP.
  • Max Operating Pressure : 6000 PSI (414 Bar).
  • RPM : 1300.
  • Number of Stages : 4.
  • Number of Fill Hoses : 4.
  • Condensate Drain : Automatic.
  • Fill Pressure Stop : Automatic.
  • Sound Level @ 3 Meters: 77 dB.
  • Air Quality : CGA Grade E / DIN 3188.
  • Lubrication : Pressure Lubrication, capacity 4.5 qts.
  • Dimensions : 60 in x 40 in x 30 in (153 cm x 102 cm x 76 cm).
* Single 80 Cu. FT. cylinder from 500 to 3000 PSI.

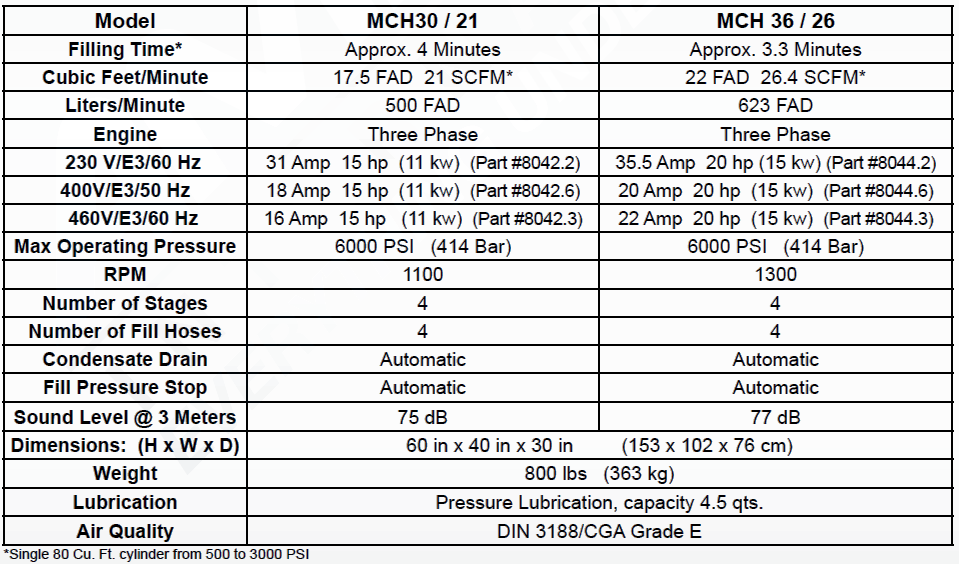

Open High Pressure Air Compressor Specification
Open High Pressure Air Compressor Specification
