Motion and Stress Analysis of Cam System for Marine Diesel Engine 93 KW

Christian Dhani Setiawan, Aguk Zuhdi Muhammad Fathallah, and Wolfgang Busse
Marine Engineering Department, Faculty of Marine Technology,Sepuluh Nopember Institute of Technology(ITS)
Jl. AriefRahman Hakim, Surabaya 60111 Indonesia
e-mail: christian.dhani12@mhs.ne.its.ac.id, fathalaz@its.ac.id, wolfgang.busse@hs-wismar.de

Abstract—The developments of maritime sector in Indonesia shows increasing demand for ships. Especially ships with size of 30 GT has problem with low availability of the ship engine, which most of the ships still use non marine diesel engine as its main propulsion. The problem gives interest to make a step to improve by design marine diesel engine using reverse engineering method. Cam system of marine diesel engine design was needed to be calculate to select the material and the motion. The design of cam system needs study about the stress analysis in cam system to
make sure the distribution of force and moment. The result of stress analysis was used to select material of components in cam system. The motion analysis result was used to be input data of stress analysis. The condition to obtain the stress of components was on maximum condition, its contain pressure, torque, rotation, and force. All component that calculated are camshaft, lifter (flat-tappet), push rod, rocker arm, spring, and valve. Each component was given two different materials and material selection was based on safety factor of each component. Material for camshaft and lifter were malleable cast iron, for push rod and rocker arm were mild steel, for spring was ASTM A231, for intake valve was steel JIS SUH3, and for exhaust valve was steel JIS SUH35. The result of motion analysis were angular velocity of camshaft with value was 2400 deg/sec, friction force between camshaft and lifter with maximum value was 125.393 N, and contact force between camshaft and lifter with maximum value was 845.307 N, and linear velocity of intake valve with maximum value was 696.573 mm/s, and linear velocity of exhaust valve was 463.734 mm/s.
Keyword—Marine Diesel Engine, Stress Analysis, Motion Analysis, Motion Study, Cam System, Material.

I. INTRODUCTION

THE design of marine diesel engine for fishing vessels with capacity around 30 GT were begin to exist. The design data for other system was needed to complete the information, so that marine diesel engine could be made.[5] The engine was designed for 93 KW and cam system was the main role of the engineand it was needed to be filled with valid information. The design of camshaft affect the displacement of air that flow into combustion chamber. There were some motion forces that work into the material of cam system. In this case, the type of cam system was side operating camshaft with tappet (flat) and rocker arm. Using simulation and design of cam system to collect data and used for calculation. The calculation includes motion and stress distribution analysis. It is used to select the suitable material so that the motion and stress can be distributed correctly.Based on the description, brought out several formulation of the problem. Analyze the distribution stress of components cam system was one of the problem. The second was selecting material for components cam system. The third was analyze the motion of cam system to be the input data for stress analysis. The components includedcamshaft, lifter, pushrod, rocker arm, valves, and spring.

II. LITERATURE REVIEW

A. Camshaft

Camshaft is frequently called brain of the engine. This was because of its job to open and closed valves at just the right time during engine running, so that the maximum power and efficient cleanout of exhaust could be obtained.[3] The valve train system with type of overhead valve usually used for old engine. The camshaft rotates was driven by the crankshaft, usually through a set of gears or a chain or belt. The camshaft always rotates at half of crank rotation, taking two full rotations of the crankshaft to complete one rotation of the cam, to complete a four-stroke cycle.[1] The camshaft operates the lifters (cam followers) that in turn operate the rest of valve train. On overhead valve engines the lifters distribute force to pushrods theninto rocker arms thenpushthe valves.
The lift produced by the cam in cam-actuated valve drives, which are still primarily in use, is transmitted to the valve :

  • by a tappet, push rod and rocker arm in under head camshafts,
  • by a rocker arm or cam follower or by a bucket tappet in overhead camshafts and the valve is lifted against the valve spring’s force.[4]

Vibrations of camshafts with flat-faced follower differ from ores with roller follower because of the friction between cam and follower. Vibrations on the camshaft affect the follower motion and contact force.[6]

B. Valve Train Systems

Modern valve train systems can be broadly divided into overhead camshaft (ohc) and overhead valve (ohv) types. The ohv was gradually being replaced as the most common by the single ohc layout. The inherent high inertial forces of the ohv had thus lead to the greater use of ohc designs.[2]
The differences of design camshaft between OHV and OHC was the production of material parts. OHV camshaft need push rod and rocker arm to run the valve train, which the camshaft did not make direct contact to the valves. Furthermore, the rocker arm that contact into valves, so material of it needs to be hardening to protect high temperature especially in exhaust part. In other types, OHC was used with different structure design production. Camshaft for OHC was making direct contact with valve, and the conduction heat from exhaust gas will go through camshaft. Therefore, the camshaft in exhaust cam has different strength hardening with intake cam.

III. METHODOLOGY

Arranged to resolve the problem would be used by the simulation method. The method resolving problemwere divided in several stages :

A. Identification Components

Figure 1 – Figure 6. shows the components geometry of cam system, which was conducted for motion and stress analysis.

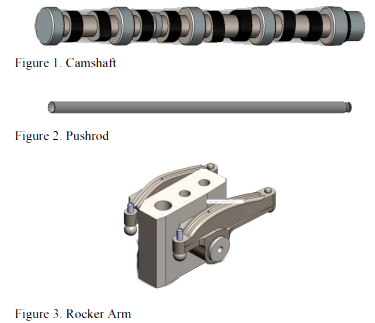

camshaft, pushrod and rocker arm
camshaft, pushrod and rocker arm

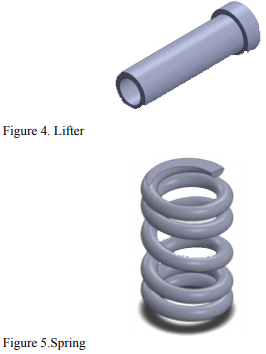

Lifter and spring
Lifter and spring

B. Input Data Analysis

Stress analysis input data was taken from motion analysis result and simulation engine performance software for the pressure, contact force, and friction force. It shows at table 1. Motion analysis input data was taken from simulation engine performance software for the pressure and rotation of the engine. Condition of analysis was used for the highest pressure, torque, force, and rotation. Its all to select the material that suitable to hold in highest stress condition.
Camshaft and lifter used gray cast iron and malleable cast iron. Pushrod and rocker arm used mild steel and chromoly tubing. Spring used wire steel ASTM A231 and ASTM A401. Intake valve used steel JIS SUH3 and JIS SUH11. Exhaust valve used steel JIS SUH35 and SUH37.
Motion analysis was analyze first to get contact force and friction force to be the input data for stress analysis. Motion analysis condition was in 2200 rpm to seek the higher value of the result. It seen in Figure 7 that shows the cylinder pressure.
Stress analysis was started with meshing all component, then input the data that already calculated and processed. Each component was analyzed to hold maximum stress condition.

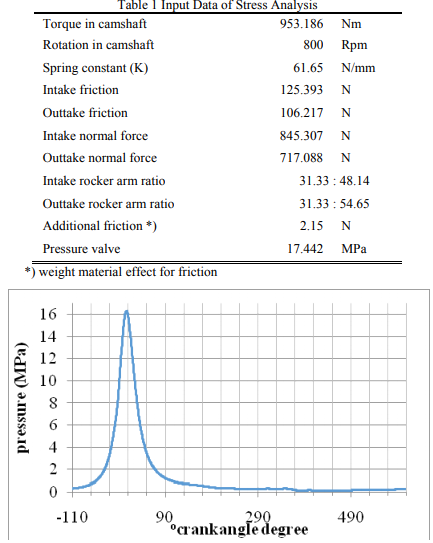

Pressure – Angle in 2200 rpm
Pressure – Angle in 2200 rpm

IV. DISCUSSION AND RESULT

A. Stress Analysis

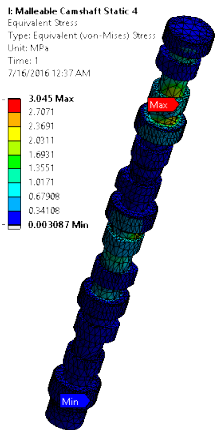

Malleable Cast Iron Equivalent (von-mises) Stressof Camshaft
Malleable Cast Iron Equivalent (von-mises) Stressof Camshaft

Figure 8. shows result the simulation of camshaft static structural which was using malleable cast iron material. The result shows equivalent stress maximum value was 3.045 MPa and minimum value was 0.003087 MPa.The result of maximum stress position was in other side of camshaft gear, where torsion were ended in this side and all the seats of camshaft hold friction stress.

Steel JIS SUH3 Equivalent (von-mises) Stress of Intake Valve
Steel JIS SUH3 Equivalent (von-mises) Stress of Intake Valve

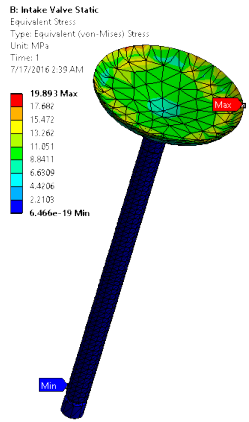

Figure 9. shows results stress analysis of intake valve using steel JIS SUH3 material. The result shows equivalent stress maximum value was 19.893 MPa and minimum value was 6.466e-19 MPa. In figure can be seen the result of stress analysis maximum value point on side of area that be pressured.

Steel JIS SUH35 Equivalent (von-mises) Stressof Exhaust Valve
Steel JIS SUH35 Equivalent (von-mises) Stressof Exhaust Valve

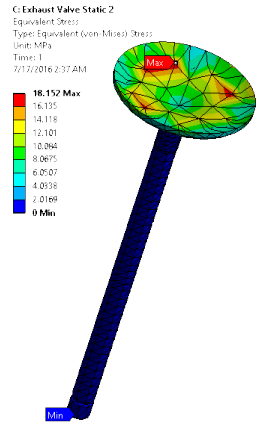

Figure 10. shows results stress analysis of exhaust valve using steel JIS SUH35 material. The result shows equivalent stress maximum value was 18.152 MPa and minimum value was 0 MPa. In figure can be seen the result of stress analysis maximum value point on side of area that be pressured.

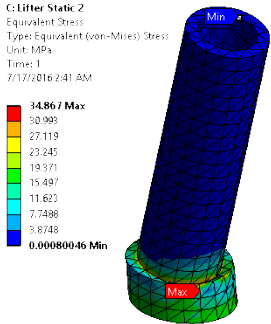

Mallable Cast Iron Equivalent (von-Mises) Stress of Lifter
Mallable Cast Iron Equivalent (von-Mises) Stress of Lifter

Figure 11. shows result stress analysis lifter using mallable cast iron material with the maximum value was 34.867 MPa and minimum value was 0.00080046 MPa. In figure can be seen the position maximum value of stress was below side, because it holds the stress from friction force with camshaft and distribute force from camshaft to pushrod.

Figure 12. shows result stress analysis pushrod using mild steel material with the maximum value was 36.137 MPa and minimum value was 0.63614 MPa. In figure 4.17 can be seen the position of maximum value at the top side that connected with rocker rod. The other side also given stress that pressed by lifter.

Figure 13. shows result stress analysis rocker arm using mild steel material with the maximum value was 109.34 MPa and minimum value was 0.00035397 MPa.In figure 13 can be seen the position of maximum stress value near the rocker rod placed. The position was on side of intake arm because the force from that side was bigger than the exhaust arm.

Figure 14. shows result stress analysis spring valve using ASTM A231 wire material with the maximum value was 787.04 MPa and minimum value was 0.058032 MPa. The maximum stress value position was in bottom side area, because all the stress was distribute to bottom side.

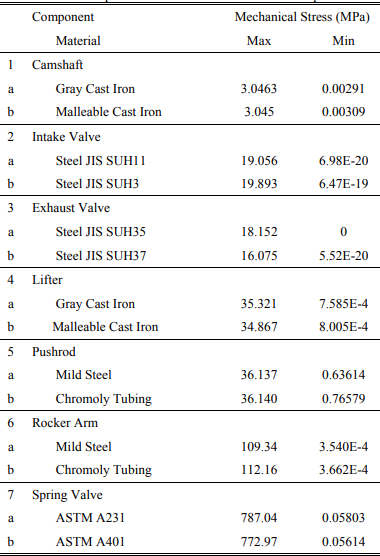

Comparison Static Structural Stress of Component
Comparison Static Structural Stress of Component

Table 2. shows the comparison value static structural stress of component. It’s all the result value of the stress analysis each material in each component. Table 3. shows the comparison value deformation each material in each component. Table 4 shows the comparison safety factor between components.

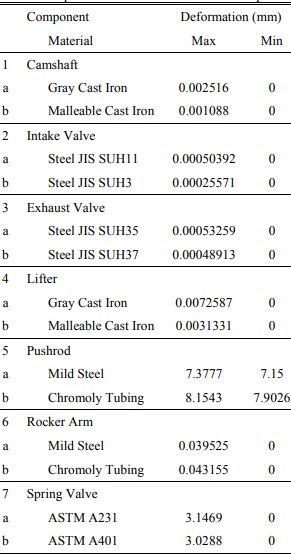

Comparison Deformation Result of Components
Comparison Deformation Result of Components

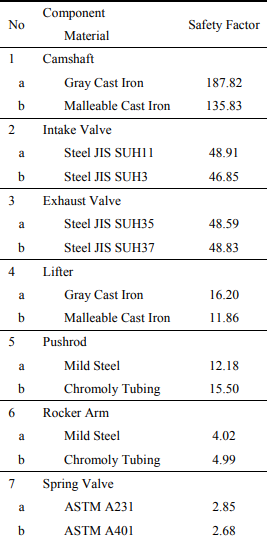

Comparison Safety Factor of Components
Comparison Safety Factor of Components

B. Motion Analysis

Figure 15. shows chart the comparison between intake valve and exhaust valve linear velocity. Its gave information that intake valve lift array was higher than exhaust valve. Chart also shown that velocity of upward and downward was looking the same, it could give information that spring was given same velocity to close the valves.The maximum value of intake valve linear velocity was 696.573 mm/s and the minimum value was -695.883 mm/s.The maximum value of exhaust valve linear velocity was 463.734 mm/s and minimum value was -483.085 mm/s.

Figure 16. shows chart the value of angular velocity in camshaft was around 2400 deg/sec. It was half value of angular velocity in the crankshaft. The condition of angular velocity was in 800 rpm.

Figure 17. shows chartthe friction force intake of cam lobe area maximum value was 125,393N and this result become
input data for stress analysis. The condition of friction force was in 2200 rpm.

Figure 18. showschart the friction force intake of cam lobe area maximum value was 106,373N and this result become
input data for stress analysis. The condition of friction force was in 2200 rpm.

Figure 19. showschart the contact force intake cam lobe maximum value was 845.307 N and this result become input
data for stress analysis. The condition of friction force was in 2200 rpm.

Figure 20. shows chartthe contact force exhaust cam lobe maximum value was 715.945 N and this result become input data for stress analysis. The condition of friction force was in 2200 rpm.

V. CONCLUSION

1. Distribution stress of components in cam system was based on moment, force, friction force, and pressure. Moment rotate the camshaft and inflict contact force with lifter. The force distributed by lifter into pushrod, and pushrod continue to distribute into rocker arm. Rocker arm had ratio length for each arm, where the intake arm was shorter than exhaust arm. The rocker arm was reducing force that comes from pushrod by the ratio. The force had to be bigger from spring requirement force to push the spring and valve. Spring would be return the valve into starting position.

2. Material selection each component was based by safety factor, if the safety factor was high enough it was allowed to select the lower value. The stress analysis result gave information data of stress each component and calculated data for safety factor.
a. Camshaft : Malleable cast iron
b. Lifter : Malleable cast iron
c. Pushrod : Mild steel
d. Rocker Arm : Mild steel
e. Spring : ASTM A231
f. Intake Valve : Steel JIS SUH3
g. Exhaust Valve : Steel JIS SUH35

3. Motion analysis gave information about correlation between components. Linear velocity of valves gave information data which spring has given same velocity to return the valves into starting position and also lift array of valves. Friction force between camshaft and lifter was measured by the software and those result became input data for stress analysis as well as contact force. The maximum value of intake valve velocity was 696.573mm/s and exhaust valve velocity was 463.734 mm/s in 800 rpm condition. Friction force maximum value for intake area was 125,393 N and for exhaust area was 106,373 N in 2200 rpm condition. Contact force maximum value for intake area was 845.307 N and for exhaust area was 715.945 N in 2200 rpm condition.

REFERENCES
[1] Challen, B. and Baranescu,R. 1999. Diesel Engine Reference Book. Second Edition.
[2] Eyre,T.S. and Crawley,B. 1980. Tribology International. Volume 13, Issue 4, Pages 147–152. Camshaft and cam follower materials.
[3] Georgiev, R. P. and Roldan, P. V. 2011. Design a four-cylinder Internal Combustion Engine.
[4] Mollenhauer, K. and Tschoke, H. 2010. Handbook of Diesel Engines.
[5] Raharjo, J. 2015. Bachelor Thesis “Design marine diesel using Reverse Engineering Method”.
[6] Saka, Z. andYilmaz, Y. 1992. Torsional Vibrations of Camshafts. Mechanical Machinery Theory Vol. 27, No. 3, pp. 225-233

Source : JURNAL TEKNIK ITS Vol. 5, No. 2, (2016) ISSN: 2337-3539 (2301-9271 Print)
