Sound Velocity For Marine Type UltraSV

- Advertisement -

ultraSV – OEM Sound Velocity Sensor

Ultra-fast, ultra-compact, ultra-dependable.

The next generation of sound velocity sensor.

Redesigned from the connector up, the UltraSV offers a truly smart and exchangeable sound velocity sensor without compromise.

Ideally suited to system integrators and OEM applications, the ultraSV is a truly exchangeable SV sensor with all critical electronics contained within the housing.

Each sound velocity measurement is made using a single pulse of sound travelling over a known distance, so is independent of the inherent calculation errors present in all CTDs. Our unique digital signal processing technique virtually eliminates signal noise, and gives almost instantaneous response; the digital measurement is also entirely linear, giving predictable performance under all conditions.

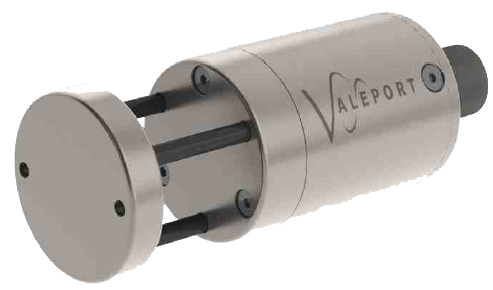

Sound Velocity For Marine Type UltraSV
Sound Velocity For Marine Type UltraSV

Performance :
Range :1375 – 1900 m/s
Resolution :0.001 m/s
Accuracy :±0.020 m/s
Sample Duration :~30 μS @1500 m/s
Sample Rate :Up to 300 Hz
Electrical :
Voltage :5V DC regulated ±3%
Power :< 250mW
Connector :SubConn MCBH6F
Communications :
Output :RS485 \ TTL
Protocol :4800 to 230400 baud (8,1,N)
Format :Proprietary NMEA string
Physical :
Depth Rating :200m
Size :38mmØ x 120mm (including connector)
Weight<0.3 kg in air
Housing & Bulkhead :Titanium
Transducer Window :Titanium
Sensor Legs :Carbon Composite
Reflector Plate :Titanium.
Ordering
ultraSV06520550
Note :All systems supplied with a manual no cables are supplied contact Valeport for options

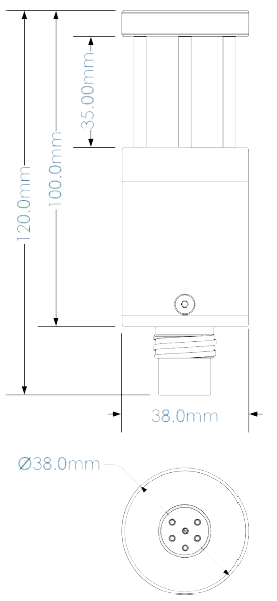

Sound Velocity For Marine Type UltraSV Drawing
Sound Velocity For Marine Type UltraSV Drawing
