Alumunium Liquid Level Sensor

Industrial Liquid Level Sensor

Alumunium Liquid Level Sensor
Alumunium Liquid Level Sensor

The 1612 Lightweight Liquid Level Sensor features fully integrated electronics and has no moving parts to provide excellent long-term reliability. The sensor is manufactured to your length requirements and is suitable for operating temperatures up to +125°C.

Combined with a configurable 0-5V analogue output and SAE 5-bolt mounting flange, the 1612 sensor is compatible with a broad range of liquids, designed to meet the needs of motorsport engineers in a dependable and high performance package.

The sensor is manufactured to your custom length requirement up to 1.5 meters.

All of the sensor’s processing electronics are located within the sensor head – no additional remotely-mounted electronics are required. With a robust anodised aluminium main body construction and titanium inner-rod assembly, the sensor is well suited to harsh environment applications and has a wide operating temperature range from -40°C to +125°C.

The sensor is available from 80mm to 1500mm long and, with each sensor factory-built to the required length and calibrated in the appropriate liquid type, no mechanical adjustment or configuration by the user is required prior to installation. Longer length sensors, which feature extra mechanical strengthening features, are available for deeper tanks up to 1.5m, and a stainless-steel variant is also available for water-based applications.

FEATURES AND BENEFITS

  • Suitable with Fuels, Oils, Bio-Fuels.
  • Lightweight aluminium construction.
  • Solid-state capacitive technology.

TECHNICAL

Output : Voltage 0.25 – 4.75V DC
Accuracy : ±1% @ 50% FSD (full scale deflection) @ 20˚C
Resolution : 10 bit
Supply Voltage : +6 to +24V DC
Supply Current : <10mA @ 12V
Ingress Protection : IP67
Operating Temperature : -40° to +125°C
Mounting : SAE 5-bolt flange
Length : 80 to 1500mm

Long-length, reinforced liquid level measurement.

  • Compatible with fuels, oils or bio-fuels.
  • Solid-state capacitive technology.
  • Reinforced aluminium construction.
  • -40° to +125°C temperature range.
  • 0-5V analogue ouput.
  • SAE 5-bolt flange mount.
  • Available up to 1500mm long.

OUTPUT

Voltage output range 0.25 – 4.75V over dimension ‘Y’ (see overleaf)
Range accuracy ±1% @ 50% full scale deflection (20°C)

ELECTRICAL

Supply voltage 6-24VDC
Supply current <10mA@12V
Interface RS232 (+5V)
Resolution 10 bit
Sample rate 80Hz

WIRING

Cable Flying lead, 500mm
Wire size 26AWG PTFE Insulator
Sleeving Viton outer jacket

ENVIRONMENTAL

Ingress Protection IP67
Operational temperature -40° to +125°C
EMC immunity SAE J1113/2 1996
Construction Aluminium
Finish Anodised to DEF STAN 025

MECHANICAL

Probe length 80 – 1500mm (customer specified)
Mounting SAE 5-bolt pattern
Weight From 200g (dependant on length)

LIQUIDS

Fuels Gasoline, Unleaded, LRP
Oils Engine oils, transmission oils, steering & hydraulic fluids, diesel, heavy oil
Bio-fuels Ethanol E100, E85, E50, E20, E10, Methanol
Other Please consult Gill

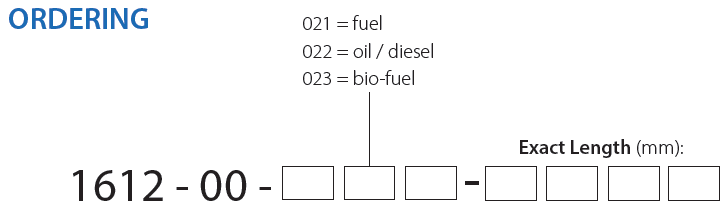

Industrial Liquid Level Sensor Ordering
Industrial Liquid Level Sensor Ordering

DIMENSION

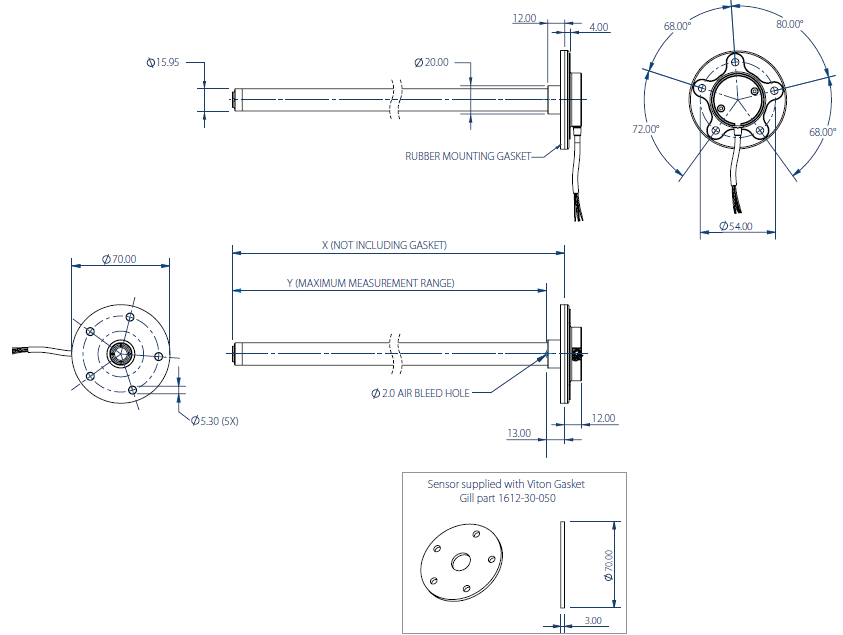

Industrial Liquid Level Sensor Dimension
Industrial Liquid Level Sensor Dimension

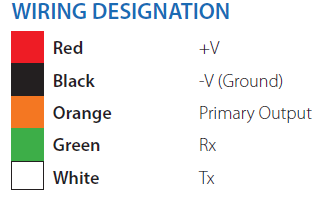

Wiring Designation
Wiring Designation
