LIGHT-TRON ML-100, WHITE LED, 25 FLASH, 5 CANDELA

0
392
LIGHT-TRON ML-100, WHITE LED, 25 FLASH, 5 CANDELA
LIGHT-TRON ML-100, WHITE LED, 25 FLASH, 5 CANDELA

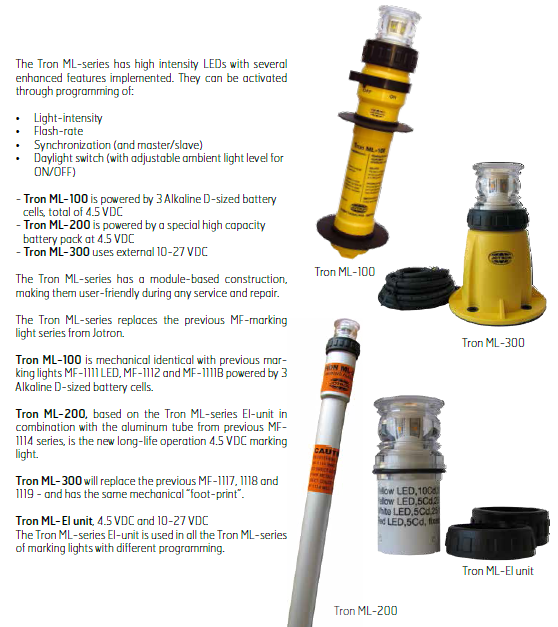

Tron ML-series

LIGHT-TRON ML-100, WHITE LED, 25 FLASH, 5 CANDELA
LIGHT-TRON ML-100, WHITE LED, 25 FLASH, 5 CANDELA

For marking of fishing equipment such as nets and long line equipment, buoys, seismic cables, anchor chains and moorings, fish farms, oil cables and offshore installations.

Tron ML-series
Tron ML-series

Tron ML-Master
Syncronization master for use with the Tron ML-series.
Syncronization master current drain @ 4.5 VDC = 20 mA.
Expected operation with ML-100 battery 3 x 1.5 VDC D-sized battery cells = 32 days.
Expected operation with ML-200 battery-pack (X-91585) = 225 days.

SPESIFICATIONS/  TYPES: Tron ML-100 Tron ML-200 Tron ML-300
Material housing ABS Aluminium ABS
Material lens Lexan Lexan Lexan
Light system LED (white, yellow or red) LED (white, yellow or red) LED (white, yellow or red)
Light intensity (Red LED 5-Cd only) 5- or 15-Cd (Candela) 5- or 15-Cd 5- or 15-Cd
Surface range 2 or 3 NM (nautical miles) 2 or 3 NM 2 or 3 NM
Waterproof Operation time @ 0-degrees C* Current drain approx. Down to 500 meters Down to 100 meters IP-68 5m/1hour
Activation switch Magnet/reed and daylight-sensor On/Off by daylight-sensor only On/Off by daylight-sensor only
Flash-rate 25-flash/min 25 flash/min or Oc Y 2s 25 flash/min or Oc Y 2s or fixed
Software programming Flash rate, intensity, sync, daylight switch Flash rate, intensity, sync, daylight switch Flash rate, intensity, sync, daylight switch
Power/battery-type 4.5 VDC, 3 x Alkaline D-size battery cells 4.5 VDC special battery-pack 10-27 VDC external power
Lens colour White White White
LED colour standard White or yellow White or yellow White or yellow
LED colour option Red Red Red
Dimensions approx. Length: 335 mm / Ø: 100 mm Length: 1615 mm / Ø: 70/50 mm Length: 155 mm / Ø: 100 mm
Fixing option Floater Jotron part.no X-98885 Various floaters Rigid-mounting
Jotron ML-type and LED Colour Candela MA-Modified Allard Power DC-Voltage Flash ON time Flash OFF time Flashes/  min Current drain@ 20°C [mA] Peak current@ 20°C [mA] Operation [hours]
Tron ML-100 / ML-200 White 6 Cd 4,5V (13500 mAh / 13500 mAh x 7) 0,5 s 1,9 s 25 17 67 800 / 5500
Tron ML-300 White 6 Cd 12V (120 Ah)** 0,5 s 1,9 s 25 11 35 10600
Tron ML-300 White 18 Cd 12V (120 Ah)** 0,5 s 1,9 s 25 23 90 5200
Tron ML-300 White 6 Cd 24V (120 Ah)** 0,5 s 1,9 s 25 8 19 15000
Tron ML-100 / ML-200 Yellow 6 Cd (MA =5 Cd) 4,5V (13500 mAh / 13500 mAh x 7) 0,5 s 1,9 s 25 28 121 470 / 3300
Tron ML-200 Yellow 6 Cd (MA =5 Cd) 4,5V (13500 mAh x 7) 1,25 s 0,75 s Oc Y 2s 76 121 1200
Tron ML-200 Yellow 18 Cd (MA =15 Cd) 4,5V (13500 mAh x 7) 1,25 s 0,75 s Oc Y 2s 202 320 460
Tron ML-300 Yellow 6 Cd (MA =5 Cd) 12V (120 Ah)** 0,5 s 1,9 s 25 17 63 7000
Tron ML-300 Yellow 18 Cd (MA =15 Cd) 12V (120 Ah)** 1,25 s 0,75 s Oc Y 2s 93 145 1300
Tron ML-300 Yellow 18 Cd (MA =15 Cd) 24V (120 Ah)** 1,25 s 0,75 s Oc Y 2s 51 78 2300
Tron ML-100 Red Tron ML-100 Red 6 Cd6 Cd 4,5V (13500 mAh)24V (120 Ah)** Fixed Fixed 220

** External battery
