Wartsila, NACOS Platinum Solid State S-Band Radar
Wartsila, NACOS Platinum Solid State S-Band Radar

Wartsila, NACOS Platinum Solid State S-Band Radar

The new NACOS Platinum Solid State S-Band Radar is a next generation marine radar system using a stabilized high power solid state transceiver. It utilizes advanced signal processing technology and comes with a new 12 ft lightweight antenna, as well as a new gearbox.

Benefits

The major advantages for customers are the added safety provided through optimized target detection under all environmental conditions, reliability thanks to the compactly designed transceiver, gearbox and antenna, and reduced lifecycle costs as a result of drastically reduced maintenance (no magnetron, fully capsuled antenna, low maintenance drive).

Antenna

The new NACOS Platinum Solid State S-Band Radar comes with a new lightweight, low profile antenna design.

The 12Ft antenna comprises a single piece hull manufactured from glass fibre epoxy composite. The construction is extremely resistant against weather and environmental conditions, as well as against aging.

Furthermore, the new antenna shape comes in a vastly improved aerodynamic form, which reduces the power requirements of the gearbox.

Wartsila, NACOS Platinum Solid State S-Band Radar
Wartsila, NACOS Platinum Solid State S-Band Radar
Wartsila, NACOS Platinum Solid State S-Band Radar
Wartsila, NACOS Platinum Solid State S-Band Radar

Gearbox

The heart of the new gearbox is a compact, powerful, and reliable motor-gear combination that ensures lasting durability. The built-in frequency converter allows adaptation to all major power sources. All components are driven by just one single-phased electrical power source. The multiple drive parameters are monitored constantly, allowing automatic adaptation to changing environmental conditions.

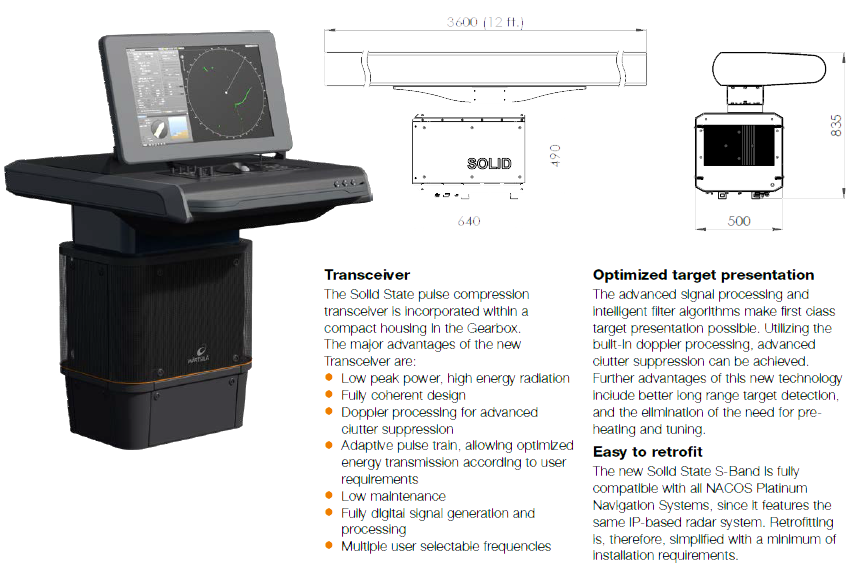

Wartsila, NACOS Platinum Solid State S-Band Radar Specification
Wartsila, NACOS Platinum Solid State S-Band Radar Specification

Transceiver

The Solid State pulse compression transceiver is incorporated within a compact housing in the Gearbox.

The major advantages of the new Transceiver are :

  • Low peak power, high energy radiation.
  • Fully coherent design.
  • Doppler processing for advanced clutter suppression.
  • Adaptive pulse train, allowing optimized energy transmission according to user requirements.
  • Low maintenance.
  • Fully digital signal generation and processing.
  • Multiple user selectable frequencies.



Read more : Wartsila, Marine High Resolution Radar
