Mini Tech High Pressure Air Compressor type Nuvair NUV-8040.2 for Marine
Mini Tech High Pressure Air Compressor type Nuvair NUV-8040.2 for Marine

Nuvair NUV-8040.2 Mini Tech High Pressure Air Compressor 230V Electric 60Hz Model 3 Phase.

Description :

The Nuvair Mini Tech is the go to Compressor set up for a wide variety of applications in both breathing air and industrial air use. Compact design and fold away handles make for easy lifting and portability of the compressor. On board Grade E air purification insures breathing air quality standards. A wide variety of customized options to meet individual needs are available. If portability and dependability are top on your list, this is the compressor for you.

Mini Tech High Pressure Air Compressor type Nuvair NUV-8040.2 for Marine
Mini Tech High Pressure Air Compressor type Nuvair NUV-8040.2 for Marine

Features :

  • 5000 PSI Max Pressure.
  • Industrial Air Filtration.
  • 2 Fill Whips.
  • Electric Motor.
  • Stainless Steel Intercoolers.
  • 4 Lifting Handles.
  • All important parts are protected inside frame.
  • Superior Vibration Isolation.

Specifications :

  • Filling Time : Approx. 9 Minutes.
  • Cubic Feet/Minute : 7.6 FAD 8.9 SCFM (Single 80 Cu.. Ft. cylinder from 500 to 3000 PSI).
  • Liters/Minute : 215 FAD.
  • Motor Options : Single or Three Phase.
  • Electric Motor : 230 V – E3 – 60 Hz 14 Amp 5.5 hp (4 kW).
  • Max Operating Pressure : 5000 PSI (345 Bar).
  • RPM : 1350.
  • Number of Stages : 3.
  • Number of Fill Hoses : 2.
  • Condensate Drain : Manual.
  • Sound Level @ 3 Meters : 81 dB.
  • Dimensions : (H x W x D) 24 in x 45 in x 22 in (61 x 114 x 56 cm).
  • Weight 320-421 lbs (145-191 kg).
  • Lubrication Splash Lubrication, capacity 1.6 qts.

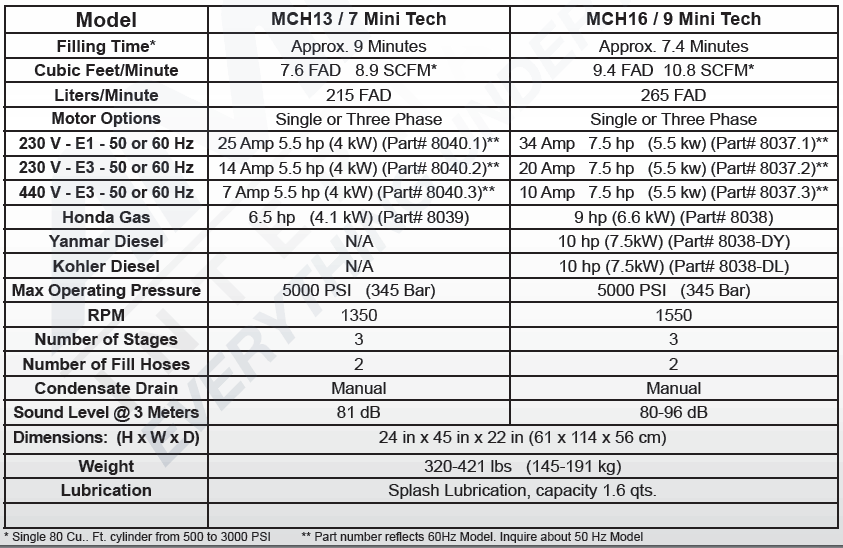

    Mini Tech High Pressure Air Compressor type Nuvair NUV-8040.2 Specification
    Mini Tech High Pressure Air Compressor type Nuvair NUV-8040.2 Specification
