There are concerns associated with both of the two most popular options to comply with IMO 2020; use of compliant fuels and SOx Exhaust Gas Cleaning Systems (EGCS), often referred to as scrubbers. However, what is important is that after an incident has occurred, the maritime industry learns and prevents similar cases in the future.
IMO 2020 is fast approaching and it is estimated that nearly 3,000 vessels will have scrubbers installed by 2020. For the majority of owners and their crew members, scrubber systems are new technology and, as with any new system, teething problems can be expected. Compliant fuels too, would bring about their own challenges.
Gard has handled a few scrubber related claims and in this article we look back at cases where there has been a breakdown of or damage to or by the scrubber.
Fire during retrofitting of scrubber
Scrubber installation requires extensive hot work to facilitate the extension of the funnel area and attaching the scrubber tower to the vessel’s structure.

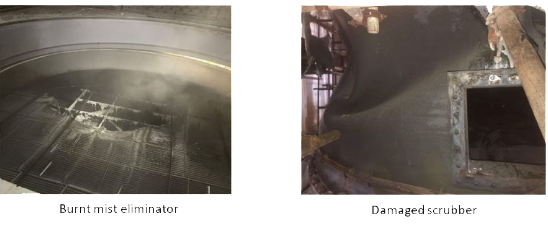

Gard has seen a few fire incidents where sparks from welding, metal cutting, and other hot work activities fell into the inner chamber of the scrubber through uncovered openings, and in one case the fire also spread to the engine room through glass reinforced epoxy (GRE) piping. Heat generated from the steel cutting for the supporting brackets, also contributed to the build up of heat inside the scrubber. In all these cases the yard fire fighting team responded and extinguished the fire with vital assistance from crew.
Later investigations revealed that crew had requested that the yard to cover the openings but this was not done. The fire risk to scrubber packing during the hot work activity had not been identified by yard personnel, and many of them were not aware that internal components of the scrubber were combustible. These fire incidents arising from shortcomings in hotwork safety procedures are not peculiar to scrubbers and can occur in any location onboard a ship where welding, cutting or grinding works are undertaken.
Sea water ingress due to corrosion

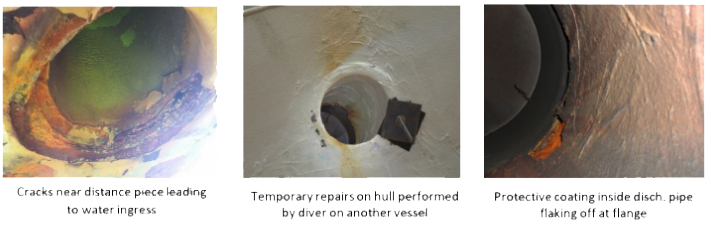

Scrubber waste is corrosive, and we have seen a few incidents where within 10-15 months of the open loop scrubber being installed, corrosion of overboard distance piece or in its immediate vicinity has resulted in water ingress into areas such as the engine room, ballast tanks and cargo holds. Absence of or poor application of protective coatings on the inside of the pipe and at the welds, along with poor application of paint on hull plating near the washwater discharge were identified as the causes of accelerated corrosion. In all these cases, temporary repairs to plug the leak were carried out by divers followed by permanent repairs at a yard.
Scrubber damage due to poor workmanship and thermal shock
A vessel was regularly trading in Northern Europe and had installed an open loop scrubber. It had to changeover to low sulphur fuel when visiting a port that had regulations in place banning discharge of washwater from open loop scrubbers. It was still required to run the scrubber in dry mode, i.e. with washwater supply pumps turned off, to allow for the passage of hot exhaust gasses with a temperature of nearly 400° C. After departure from port, washwater pumps would be started and cold sea water sprayed through the nozzles inside the scrubber. During inspection of the scrubber by crew, damage was noticed to the nozzles, demister housing and the drains.

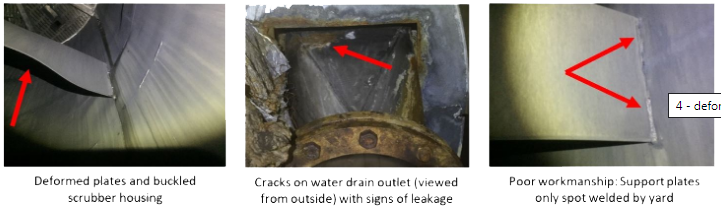

A survey was carried out and indicated a variety of concurrent causes, such as thermal shock, poor workmanship by the yard, for example, only spot welding done on demister supporting plates; and poor design. The scrubber had been in service for nearly two years.
As any other equipment or machinery onboard the ship, scrubbers are not immune from breakdown and damage. For the incidents discussed above, our recommendations would be :
Fires during retrofitting :
Fire risks can be mitigated if hot work safety procedures are followed. The risk assessments carried out prior to the work should cover which parts of the scrubbers are flammable. These should be protected during the hot work by covering any openings to prevent sparks from finding their way to these parts. Measures should also be put in place to prevent transfer of any heat generated during metal cutting, welding, grinding, and other hot work activities. Owners should ensure that yard workers, who will ultimately be undertaking these hotwork activities are aware of these risks and appropriate barriers are put in place to shield these areas. Crew members are advised to not rely solely on the yard safety watchman, but to monitor the hot work activities themselves. Fire fighting equipment should be maintained in a ready to use state and crew should be familiar with how to use them.
Ingress of water due to corrosion :
The metallic distance piece is normally coated for enhanced protection. There should be a regime to measure the wall thickness. For many classification societies, such as DNV-GL (Class rules, Part 7, Ch. 1, Section 2, pt.3.1.9) this is a survey item. Any reduction in thickness is indicative of a breakdown of the coating. For leakages from welded joints and holes or cracks in the hull, the quality of workmanship and the paint application should be scrutinised. Also, the bilge alarm and pumping arrangements should be checked regularly so that the crew is alerted of and can respond to any water ingress.
Damage due to poor workmanship and thermal shock :
When in operation, the scrubber unit will be subject to different types of stresses, which will test the quality of the welding and housing structure. Supervision by owners during the time of installation can help mitigate this risk. With regards to design related issues, owners are recommended to have a dialogue with manufacturers to mitigate such risks. In this particular case of thermal shock, as preventive action, shipowners changed the design and installed a water cooling system for the scrubber which will continuously run in a closed loop when the scrubber is operating in dry mode.
As a general note, owners should also consider approaching their scrubber manufacturers and request them to regularly share technical failure related scrubber incidents occurring on ships belonging to other owners.
