About the New IMO VDR Performance Standards

In May 2012, the Maritime Safety Committee of the International Maritime Organization (IMO) adopted a revised recommendation on performance standards for Voyage Data Recorders (VDRs), effective as of July 1, 2014. The new requirements defined in MSC 333(90) state that for VDRs installed on or after July 1, 2014 on all passenger vessels or cargo vessels of 3,000 GT and above :

  • Data shall be recorded internally in the VDR for a minimum of 30 days/720 hours.
  • Data shall be recorded in a float-free capsule, in addition to a fixed capsule.
  • Data shall be recorded for a minimum of 48 hours in both capsules.
  • Bridge audio shall be recorded using at least two tracks for indoor microphones.
  • Outdoor microphones shall be recorded on an additional separate track.
  • Images, charts and settings from the ECDIS shall be recorded.
  • Images from both radars on the vessel shall be recorded.
  • Data from the AIS shall be recorded.
  • Data from an inclinometer shall be recorded, if installed.

Is Your System IMO-Compliant?

All new VDRs installed after July 1, 2014 must be compliant with the new standards. Our newest generation DM100 VDR meets all requirements and performance standards of MSC.333(90) and IEC 61996-1 Ed.2. Danelec VDR systems are designed to record and store, in a secure and retrievable form, information concerning the ship’s position, movement, physical status and command and control for the period leading up to and following an incident. Designed specifically for maritime application down to the last component, Danelec VDRs offer high quality and reliability in a compact and lightweight, easy-to-install solution.

Voyage Data Recorder
Voyage Data Recorder

VDR Explorer Playback Software

VDR Explorer Playback Software
VDR Explorer Playback Software

Danelec VDRs are supplied with the VDR Explorer playback software as standard. The software runs from any PC and can provide real-time monitoring and replay recorded data.

The recorded data can be presented in a large variety of both graphical and numerical ways, and is extremely easy and user friendly to operate.
• Windows based application for playback.
• Intuitive user interface.
• Customizable conning page.
• Extract data from the VDR through a web browser via Web Extractor tool.

DanelecConnect Remote Management Solution

DanelecConnect is a web-based remote management service available with the Danelec DM100 VDR. As a value-added interface, DanelecConnect allows selective transmission of data from the VDR via satellite to the home office without being limited by satellite capacity onboard vessels. Remote management provides a wide range of benefits concerning control, safety and optimization without the need of physical attendance to the vessel, such as :
• Enhanced safety.
• Remote monitoring and service.
• Ship’s performance optimization.

DanelecConnect Remote Management Solution
DanelecConnect Remote Management Solution

A Revolution in Shipboard Service

Servicing and repairing shipboard electronics can be time consuming and expensive. There are the complicated logistics of scheduling a service call and finding a properly trained technician – sometimes from a remote port. Then there is the question of whether the technicians have the correct spare parts on hand and can complete the repairs in time to meet the ship’s sailing schedule.

Now there is a way to save time and money, while eliminating in-port delays, thanks to the new SoftWare Advanced Protection (SWAP) solution from Danelec. With SWAP technologyTM, all system software and configuration, as well as programming data, is automatically saved on a hot-swappable memory card that can easily be removed from the old unit and inserted into the new one. Relocating the repair from ship to shore saves hours of time in re-installing software and re-programming the unit.

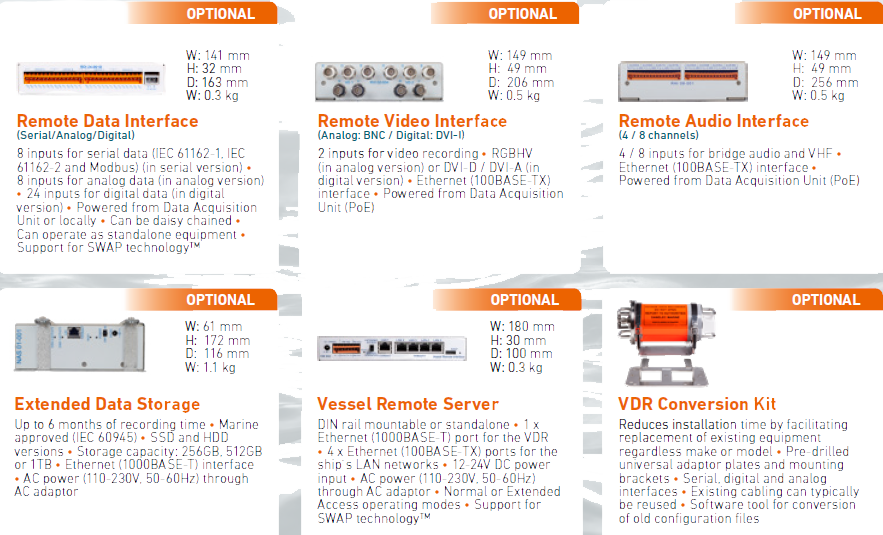

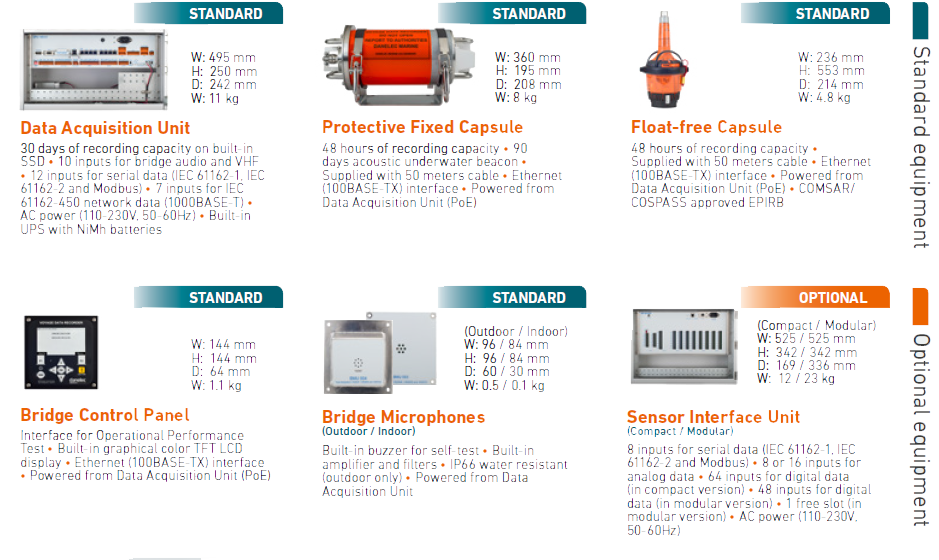

Standard equipment and optional voyage data recorder
Standard equipment and optional voyage data recorder
Standard equipment and optional voyage data recorder
Standard equipment and optional voyage data recorder

The Traditional Way

In a typical service scenario, the technicians board the ship, troubleshoot the problem and determine what spares are needed to make the repair. If the parts are not available locally, they must be ordered. Depending on the system, port state control authorities may prevent the ship’s departure until the repairs are made, resulting in expensive demurrage and port costs.

If the ship is allowed to sail, the spares must be delivered to its next port, requiring another expensive service call to complete the repairs.

The Danelec Way
The SWAP solution is quick and easy :

• When a Danelec-trained technician reports to the ship for a service call, he arrives with a replacement unit in hand.
• The technician removes the memory card from the old unit.
• He switches out the old unit with the replacement unit.
• Inserts the memory card into the new unit.
• Then he takes the old unit to shore for repair.

The Benefits are Invaluable
The Benefits are Invaluable
