Professional plotter with impressive operability Fully supports to improve your fishing efficiency

Chart Plotter GTD-120

Chart Plotter GTD-120
Chart Plotter GTD-120

Save important data in your SD card

  • The display unit has “memory” inside, and data of mark, own track, draw, target track, route, picture and setting can be saved in the “memory” at any time. It is recommended to save important data in this “memory” to SD card. Data can be saved and imported between the “memory” and the SD card.

  • Supports SD card sizes between 2 and 8GB.

Dual range display

  • Ability to display two different ranges on one screen.
  • You can choose two different scales at the same time by setting the plotter screen side by side.

AIS display function

  • By connecting to AIS receiver, AIS symbols will be displayed on the screen. Up to 128 AIS symbols can be displayed.

  • Built in AIS interface board, display other ship information by connecting the AIS receiver.

High performance LCD ensures high visibility under all conditions.

  • Adoption of special filter (AR coat). The image is clearly displayed in sunlight, and reflection on the LCD screen is also prevented.

User-friendly operation.

  • Easy to operate by using both single function keys and knobs, you can quickly learn how to operate.

  • [F1] and [F2] keys are to call registered functions with one touch.

Features :

  • 10.4 inch High brightness LCD.
  • User-friendly Operation.
  • Various display screen such as Bird view and dual range display.
  • SD card capable, save user data such as marks, tracks and settings.
  • Various marks and greater numbers of ship’s tracks.
  • Useful information display in the information window on the screen.
  • AIS display function.
  • C-Map MAX chart Ready (Chart: Owner supplied).

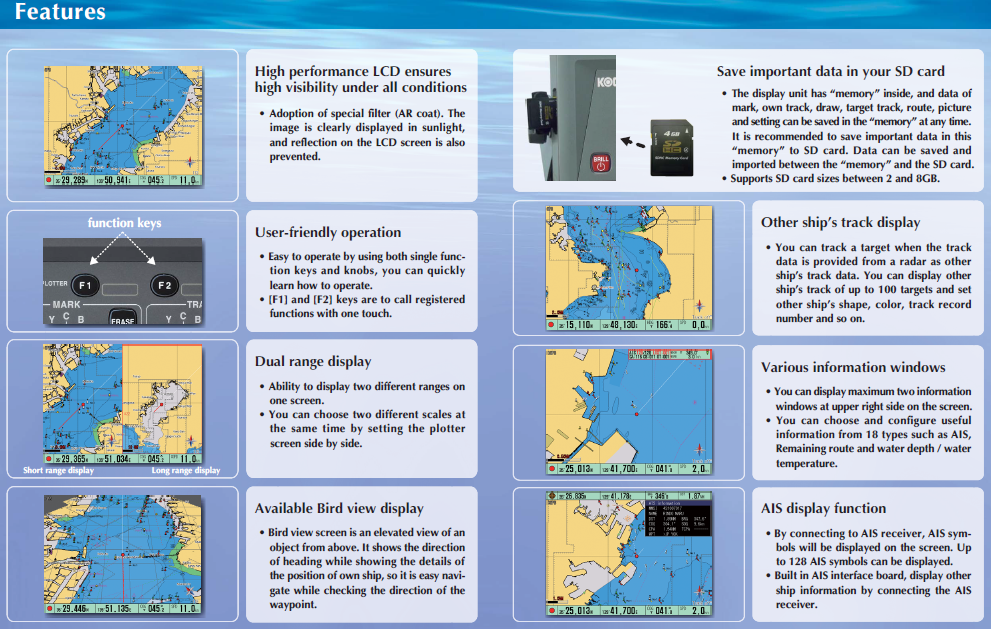

10.4 inch color LCD GTD-120

10.4 inch color LCD GTD-120
10.4 inch color LCD GTD-120

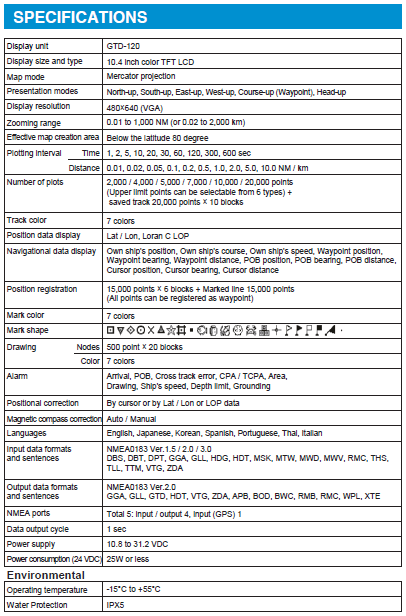

Chart Plotter GTD-120 Specification
Chart Plotter GTD-120 Specification

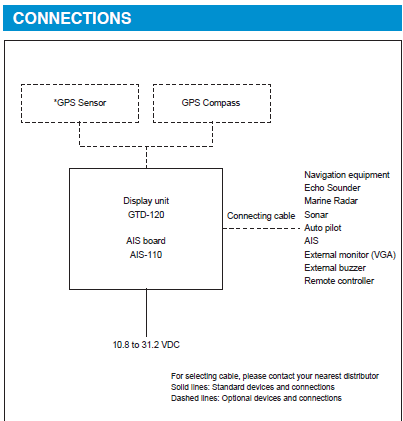

Chart Plotter GTD-120 Connection
Chart Plotter GTD-120 Connection

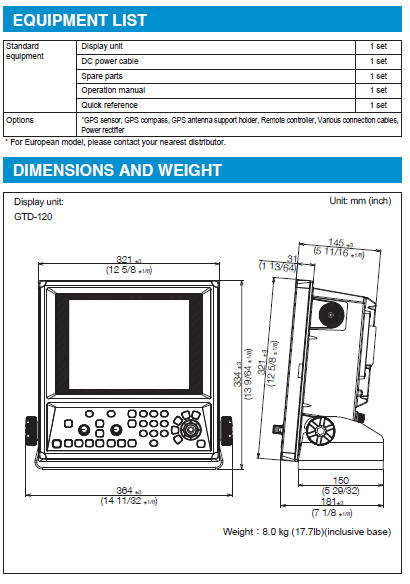

Equipment list, Dimension and Weight
Equipment list, Dimension and Weight
