Raymarine CP570 Professional CHIRP™ Sonar
Raymarine CP570 Professional CHIRP™ Sonar

High-Performance Sonar Module For Professional & Tournament Fishing

Professional CHIRP Sonar Module

Engineered for serious anglers, the CP570 sonar module bring best-in-class target separation and high resolution CHIRP sonar imagery to Raymarine multifunction displays. Using a wide spectrum of frequencies and greater sensitivity the CP570’s advanced CHIRP transceiver can see through dense schools of baitfish, identify thermoclines, and simultaneously target desired game fish.

Rated for offshore use and rough conditions, the CP570 intelligently filters out unwanted noise while producing high resolution fish targets and reliable bottom tracking.

For the professional angler the CP570’s two fully independent sonar channels deliver faster target identification and up to 4kW of combined output power.

Serious Offshore Sonar

Superior target definition and enhanced sensitivity using Raymarine’s exclusive wide spectrum CHIRP sonar technology.

  • Target fish, identify bait, and track the sea floor down to 10,000ft. (3,000m) with two adjustable CHIRP sonar channels.
  • Hunt for fish in different parts of the water column with the CP570’s two fully independent 2kW sonar channels.

Stunning Detail & Clarity

With 10 times the resolution of ordinary sonars the CP570 delivers sharper, more defined fish targets and automatically filter out unwanted noise so you never miss the action below.

  • TruZoom™ magnification mode reveals extra target detail without any loss of resolution
  • The CP570’s ultra-fast ping rate processing delivers accurate bottom tracking in extreme offshore conditions.

    Stunning Detail & Clarity
    Stunning Detail & Clarity

Easy To Customize

Choose optional low, medium, and high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences.

  • The CP570 automatically recognizes connected transducers and adjust sonar parameters for optimized performance
  • View and control each CHIRP channel independently and create your own combination of full or split screen sonar windows on Raymarine’s LightHouse II powered multifunction displays.

    Easy To Customize
    Easy To Customize

Raymarine CP570 Specifications & Ordering Information

ItemORDERING INFORMATION
Part Number :Description :
E70258CP570 Professional CHIRP Sonar
CP570 PROFESSIONAL CHIRP SONAR
Recommended forProfessional and tournament fishing

Sonar Performance

Sonar TypeWide Spectrum CHIRP
PowerMax 4kW output using 2 independent CHIRP channels
Frequency & ChannelsDual independent CHIRP channels from 25 to 250kHz
Depth Range10,000ft (3,000m)

Features

TruZoom™TruZoom™ provides magnified views of fish targets, bottom structure, and baitfish without loss of resolution as seen by traditional sonar
Automatic transducer identification with Airmar Xducer ID
Airmar Wide Beam transducer compatible
Waterproofing StandardIPX6 waterproof rugged aluminum enclosure
CompatibilityaSeries | cSeries | eSeries | New eS Series | gS Series
Nominal Supply Voltage12/24 V DC
Power Consumption30.6W (Maximum)
ConnectionsPower connection | Network connection (RayNet connector) 10/100 Mb/s | Transducer connection
WeightTBA
UNIT DIMENSIONS
Unit Dimensions

Raymarine CP570 Professional CHIRP™ Sonar Dimension
Raymarine CP570 Professional CHIRP™ Sonar Dimension

Related Raymarine Products

Multifunction Displays

Speed / Temperature Senors

SPEED / TEMP SENSORS
Through-Hull
ST800-P120 Plastic (Urethane) Low Profile Speed/Temp SensorB120-ST800 Bronze Low Profile Speed/Temp Sensor

ST800-P120 Plastic (Urethane) Low Profile Speed
ST800-P120 Plastic (Urethane) Low Profile Speed
Image Available Soon
E66071E66072
Installing an in-hull transducer, but still want speed and temp? Add one of these speed/temp sensors and the CP470-570 Speed-Temp Sensor Y-Cable (A80345) to bring this capability to your Raymarine CHIRP Sonar Modules.

CP470 & CP570 Extension & Adaptor Cables

CP470 & CP570 Extension & Adaptor Cables
CP470 & CP570 Extension & Adaptor Cables
EXTENSION CABLES
Product:Extension CableExtension CableExtension Cable
Part Number:A102148A102150A80327
Product Compatibility:CP470 / CP570 CHIRP Transducer Extension CableCP470 / CP570 CHIRP Transducer Extension CableCP470/CP570 CHIRP Transducer Extension Cable 10M
Data:Speed, Depth & TemperatureSpeed, Depth & TemperatureSpeed, Depth & Temperature
Length:3m5m10m

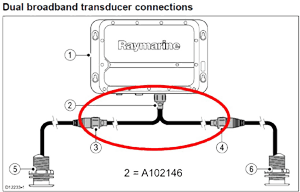

Dual broadband transducer connections
Dual broadband transducer connections
ADAPTER CABLES
Product:Adaptor CableAdaptor CableAdaptor Cable
Part Number:A102146A80328A80345
Product Compatibility:CP470 / CP570 Y-Cable for Dual Transducer connectionsSingle B75/B175 Operation CableCP470-CP570 Speed-Temp Sensor Y-Cable
Data:Depth & Temperature
Length:0.5m

Read more : High Performance 3D CHIRP Sonar Module Type RVX1000 Raymarine
