NEW - Raymarine CP370 Digital Sonar Module
NEW - Raymarine CP370 Digital Sonar Module

High-Performance Sonar Module For Offshore & Coastal Fishing

CP370 – Digital Sonar Module

The CP370 delivers exceptional clarity, sharper fish targets, and automatic operation using Raymarine’s next-generation ClearPulse™ digital sonar processing.

The CP370 boasts up to 1,000 watts of power and operates at 200kHz for inshore and 50kHz for offshore fishing.

ClearPulse™ signal processing intelligently manages the CP370 sonar parameters in all conditions so anglers can spend more time fishing and less time adjusting the sonar.

Sharper, Clutter Free Targets

Spend less time looking for fish and more time fishing

  • Smarter target intensity controls reveal bait and game fish with exceptional clarity.
  • Enhanced digital filtering reveals fish targets through the entire water column.
  • Spend less time looking for fish, and more time fishing. CP370 takes the guesswork out of interpreting the sonar display.

    Sharper, Clutter Free Targets
    Sharper, Clutter Free Targets

Go Deeper

Next generation ClearPulse™ sonar

  • Up to 1,000 watts of power to track the sea floor down to 5,000 feet (1,500m).
  • High performance dual-frequency (50/200 kHz) sonar for coastal and offshore fishing.

Key Features

Key Features
Key Features

Accurate Bottom Tracking

New and improved bottom tracking

  • Track the bottom in extreme conditions with advanced ClearPulse™ signal processing.
  • New and improved bottom tracking algorithms deliver reliable performance in challenging conditions like running at high speeds and transitioning across canyons.

Raymarine CP370 Specifications & Ordering Information

ITEMORDERING INFORMATION
Part Number :Description :
E70297CP370 Digital Sonar
ITEMCP370 DIGITAL SONAR SPECIFICATIONS
Recommended forCoastal Fishing
Sonar Performance
Sonar TypeDigital
Power600W / 1000W Depending on transducer
Frequency & ChannelsFixed frequency 50KHz and 200KHz channels
Depth Range5000ft. (1,500m)
Features
ClearPulse™ automatic noise filtering and auto sensitivity control
Standard Zoom
Waterproofing StandardIPX6 Waterproof
CompatibilityaSeries | cSeries | eSeries | New eS Series | gS Series | C-Widescreen | G-Series- Classic | E-Classic | E-Widescreen
Nominal Supply Voltage12/24 V DC
Power Consumption30.6W (Maximum)
ConnectionsPower connection | Network connection (RayNet connector) 10/100 Mb/s | Transducer connection
Weight3.16lbs (1.435kg)
ITEMUNIT DIMENSIONS

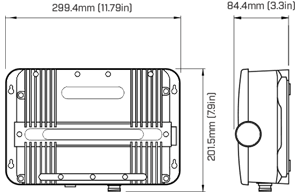

Unit Dimensions

NEW - Raymarine CP370 Digital Sonar Module Dimensions
NEW – Raymarine CP370 Digital Sonar Module Dimensions

Cables & Accessories

ITEM

NEW - Raymarine CP370 Digital Sonar Module Extension
NEW – Raymarine CP370 Digital Sonar Module Extension

NEW - Raymarine CP370 Digital Sonar Module Adaptor
NEW – Raymarine CP370 Digital Sonar Module Adaptor

NEW - Raymarine CP370 Digital Sonar Module Adaptor
NEW – Raymarine CP370 Digital Sonar Module Adaptor
CABLES & ACCESSORIES
Product:Extension CableAdaptor CableAdaptor Cable
Part Number:E66010E66022E66066
Product Compatibility:DSM30/DSM300G Transducer Extension CableDSM30/DSM300G Transducer Y-Split CableTo connect a DSM30 Transducer to an a-Series/cSeries/eSeries Display
Data:Speed, Depth & Temperature
Length:5m0.9m0.5m

Read more : NEW – Raymarine CP470 CHIRP™ Sonar Module
