DESK Type 150/250W MF/HF DSC, NBDP SYSTEM GMDSS
DESK Type 150/250W MF/HF DSC, NBDP SYSTEM GMDSS

DESK Type 150/250W MF/HF DSC, NBDP SYSTEM

SRG-150DN/250DN

FEATURES

DESK Type 150/250W MF/HF DSC, NBDP SYSTEM GMDSS
DESK Type 150/250W MF/HF DSC, NBDP SYSTEM GMDSS

● Compliant with ITU (ITU-R M.493-14, M.541-10), IMO and GMDSS standard.

● Improvement of sound quality, which applied with new conceptual SYNTHESIZE technology and noise-free realization.

● Implements a digital filter using DSP, eliminates external noise and noise generated by inside of the ship, significantly improves call quality.

● Compact size with simplified key and dial for the maximized and easy operations.

● Designed as one-unit DSC and W / K receiver built in the desktop of transceiver.

● Installed with 10.4-inch color LCD for easy message reading of NBDP TERMINAL.

● Each function and frequency are easy to read with the adoption of liquid crystal display.

● Available with quick scan function for the variation of transmission output, frequencies and channels by group or individually.

● Available MEMORY with 100 DSC transmitting messages (100 MEMORY FILE EDIT)

● Available MEMORY with 100 DSC receiving messages (Distress: 50 messages and Ordinary: 50 messages).

● Installed a built-in internal speaker (Optional external speaker available).

SPECIFICATION

▶ GENERAL

●  Frequency range : TX : 1.6MHz ~ 27.5MHz, 10Hz STEP.

                                  RX: 500kHz ~29.9999MHz, 10Hz STEP.

●  TX/RX channel : ITU channel, 300 memory channels.

●  Frequency deviation: Within ± 10Hz.

●  Type of emission : J3E, F1B, J2B.

●  Communication method : Simplex and Semi-duplex.

●  Operating temperature, Humidity : -15˚C ~ +55˚C, 95%.

●  Power supply : DC24V ± 15%.

●  Current: SRG-150DN 2.0A at receiving, 15A at transmitting.

                 SRG-250DN 2.0A at receiving, 25A at transmitting.

▶ TRANSMITTER

●  Type of emission and output : SRG-150DN J3E, J2B (150W).

                                               SRG-250DN J3E, J2B (250W).

●  Modulation system : Low power stage balanced modulation system.

●  Occupied frequency bandwidth : J3E 3KHz, J2B within 0.5KHz.

●  2TONE distress signal: 1300Hz, 2100Hz.

▶ RECEIVER

● Receiving sensitivity : J3E, F1B, J2B 3μVS/N 20dB 250m/W.

● Intermediate frequency : 64.455MHz, 455KHz.

● Overall distortion and noise : More than 20dB.

● nput impedance : 50Ω.

▶ DSC WATCH KEEPING RECEIVER

● Frequency : 2187.5, 4207.5, 6312, 8414.5, 12577, 16804.5KHz.

● Type of emission : F1B.

● Frequency shift keying : 1700 ± 85Hz (Mark: 1615Hz, Space: 1785Hz).

● Data transfer speed : 100baud.

● Frequency tolerance : 10Hz.

▶ NBDP

● Protocol : CCIR Recommendations 625, 476-4, 490, 491, 492-3 and F130.

● Communication mode : ARQ (Automatic repeat request system).

                                    CFEC (One direction ERROR correction: all broadcast).

                                    SFEC (One direction ERROR correction: selective broadcast).

● Memory capacity : 16MB.

● Intermediate frequency : 1700Hz.

● Modulation speed : 100BAUD (ARQ, FEC MODE).

● Modulation system : AFSK.

● Frequency deviation : Within ± 0.5Hz.

▶ NBDP COMPONENTS

● NBDP TERMINAL (SN-100).

● PRINTER (JP-3750 & HP-283).

● KEY BOARD (SPR-8630).

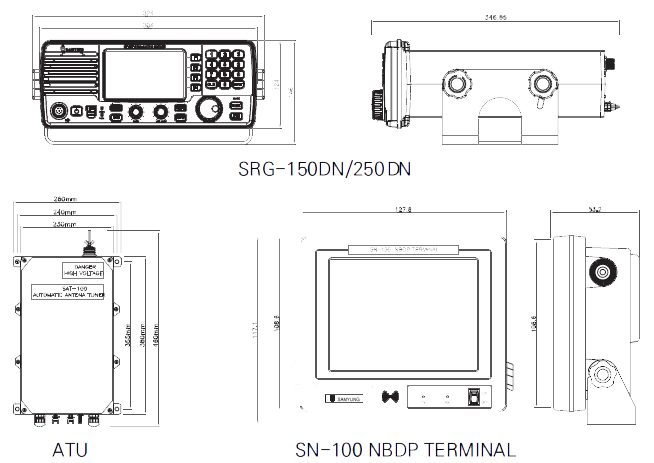

DRAWING

DESK Type 150/250W MF/HF DSC, NBDP SYSTEM GMDSS Drawing
DESK Type 150/250W MF/HF DSC, NBDP SYSTEM GMDSS Drawing

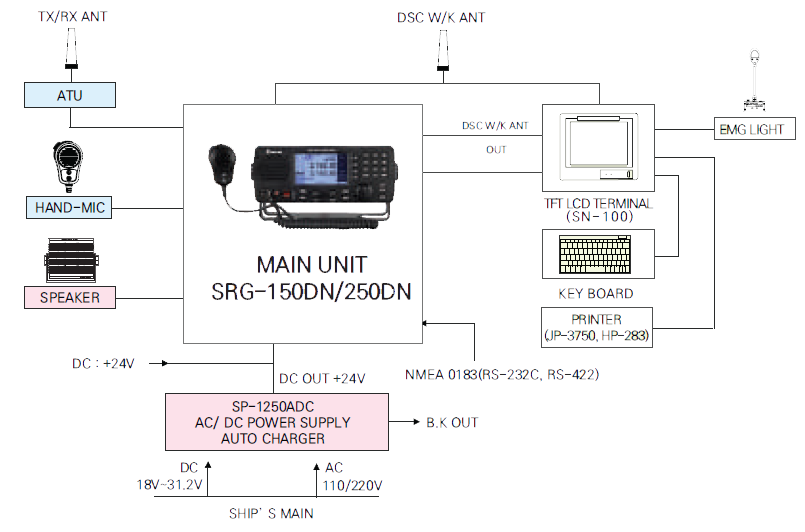

CONFIGURATION

DESK Type 150/250W MF/HF DSC, NBDP SYSTEM GMDSS Configuration
DESK Type 150/250W MF/HF DSC, NBDP SYSTEM GMDSS Configuration
