CPL 165 Magnetic Compass Marine Aluminum Standard Vertical Compass

- Advertisement -

Marine magnetic compass, marine stanard ship compass, marine aluminum vertical magnetic compass

Specifications :

Type CPL-165 standard vertical magnetic compass, standard compass

  1. high precision.
  2. convenient correcting difference.
  3. steady performance.
  4. sample in construction.
  5. CCS certificate.

CPL 165 magnetic compass marine aluminum Standard compass:This marine magnetic compass is a good kind of transparent liquid magnetic compass. It is designed to meet the technical requirements of GB/T 14108-2011 and ISO-449 standards referring class A magnetic compass. It is suitable for the large and middle vessels acting as standard compass or steering compass. And it is used for measuring azimuth and indicating course heading.  It is simple to construction, easy to operate and substantial in economy.

Technical data

ProjectData
Dial DiameterΦ165mm
Dial graduation0°~360° 1°for each grid
Using temperature-25℃~+60℃
ndicating deviation      (H=35μT,T=20±3℃)≤0.5°
Half period(H=35μT,T=20±3℃)≥8.62 S
Friction deviation(H=35μT,T=20±3℃)≤0.09°
Main semicircle self heterodyne correcting energy1°~45°
Secondary semicircle self heterodyne correcting energy1°~6°(magnetic inclination Q=45°)
Quadrant self heterodyne correcting energy0.5°~10°
Inclining self heterodyne correcting energy-75~+75μT
Lighting power supplyAC 220V,DC 24V
Outline Dimension720×430×1200mm
Diameter of mounting holesPitchrow 420 ApertureΦ16
weight33kg

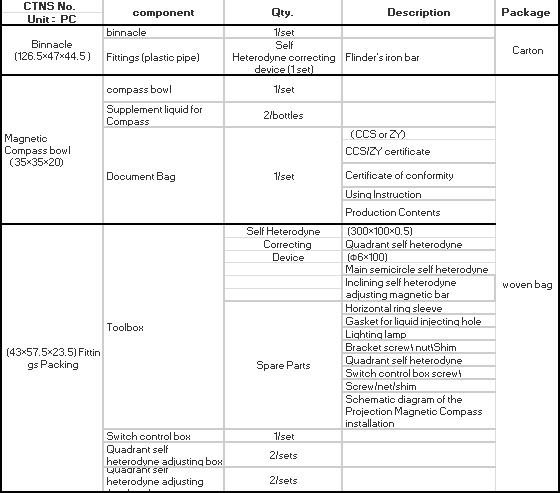

CPL-165 standard vertical compass packing list :


If the cpl 165 magnetic compass marine aluminum standard vertical compass meets your requirement, welcome to wholesale our quality equipment with competitive price. We are one of the leading magnetic compass manufacturers and also a professional supplier in China. We are always at your service.
