Gas Freeing Fans Type VP800W
Gas Freeing Fans Type VP800W

Gas Freeing Fans Type VP800W

The VP800 is a high performance, deep penetration, water driven fan, constructed using high grade LM6 aluminum. This non-sparking fan is suitable for use on all types of vessels.

Fan Key Features :

  • Designed and Class-Approved for use in hazardous areas;
  • Supply or Extract mode by simple reversal of supply;
  • Can be supplied with horizontal mounting;
  • Integral ‘Direct In-Line’ drive; no gearbox to maintain or fail;
  • Non-sparking (ATEX approved);
  • Can operate at low pressures;
  • Lightweight and compact for portability;
  • Can be supplied for horizontal mounting;
  • High air-flow throughput;
  • High static pressure;
  • Efficient motors;
  • Constructed using marine grade materials;

Fail-safe bleed tube to indicate seal failure.

Gas Freeing Fans Type VP800W
Gas Freeing Fans Type VP800W

Fan Specifications :

Operation Supply or exhaust mode
Drive Media Water
Safety Features Non-sparking, Impeller guard
Deck Opening To suit standard Ø318mm deck opening, on a 389 PCD. Alternative deck flanges available on request
Material Aluminum Construction
Weight : 31 kg
Connections Butterworth (2.5” x 7.5 TPI),<br/>VP Thread (2.0” x 11.5 TPI),<br/>BSP (2.0” x 11 TPI)
Max Air Flow 8700 m³/hr (145 m³/min)
Max Static Pressure 1130 Pa
Max Flow Requirement 18.0 m³/hr
Operating Pressures 2.0 – 10.5 kg/cm²

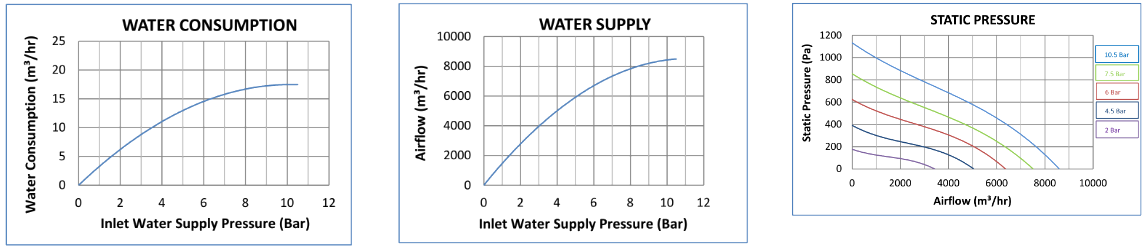

Gas Freeing Fans Type VP800W Diagram
Gas Freeing Fans Type VP800W Diagram
