Parker Check Valve 1/4 inch Crack Pressure

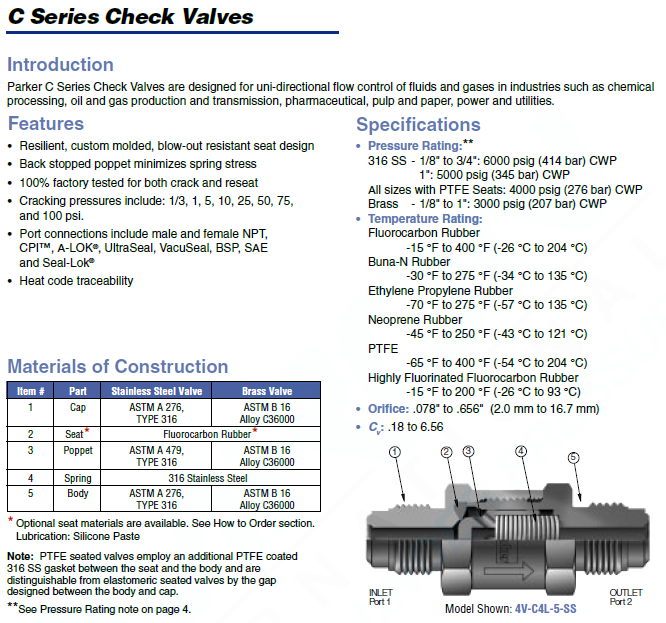

The Parker 4M-C4L-1-SS – C-Series Check Valve 1/4 inch MNPT 1 Crack Pressure – Stainless Steel is designed for positive unidirectional flow control of liquid and gases. This check valve features a resilient, custom-molded, blow-out-resistant seat design. The C-series check valve offers pressure and temperature ratings up to 6000 psig and 400 degrees F.

Features

• Eight cracking pressure choices from 1/3 to 100 psi.
• Blow-out resistant seat design.
• Back stopped poppet.
• 316 stainless steel construction.

Specifications

• 316 stainless steel body.
• 1/4 in. MNPT ends.
• 1 psig crack pressure.
• Highly fluorinated fluorocarbon seal.
