Wartsila SAM 4682

Wartsila SAM 4682 is a navigation, 2 axis doppler log with a large, high resolution graphic LCD. An auxiliary, shallow water echosounder function is included. Display graphics are continuously shown on the LCD along with complete navigation details. All IMO requirements are met or exceeded. Comprehensive interfaces are available, including NMEA0183 input and output.

Transducer and Transceiver

Wärtsilä SAM 4682 transducer consists of a total of 3 hydro-acoustic elements of 270 kHz. The transducer is connected to a transceiver electronics cabinet located within 40 m of the transducer. Connection from the transceiver to the operator unit is via a serial RS-422 data link and distance up to 300 m. Transceiver power supply options are 230 V AC or 24 V DC. The power consumption is approximately 80 Watts at 115 / 230 V AC or 60 Watts at 24 V DC.

Wartsila SAM 4682 Transducer and Transceiver

Operator Unit

The operator unit contains a graphic dot-matrix color TFT LCD display and a keyboard with fixed keys, softkeys and a rotating encoder. The function of each softkey button depends on the active screen, and the buttons are labelled on the lower rim of the LCD. The display is backlit, and backlight intensity can be adjusted by the user. Various user-selectable information layouts, adapted to typical operational situations, can be displayed continuously on the LCD screen. The operator unit is normally flush mounted. Brackets for bulkhead mounting are available optionally. Operator unit power supply options are 230 V AC or 24 V DC. The power consumption is approximately 70 Watts at 115 / 230 V AC or 50 Watts at 24 V DC.

Standard functions

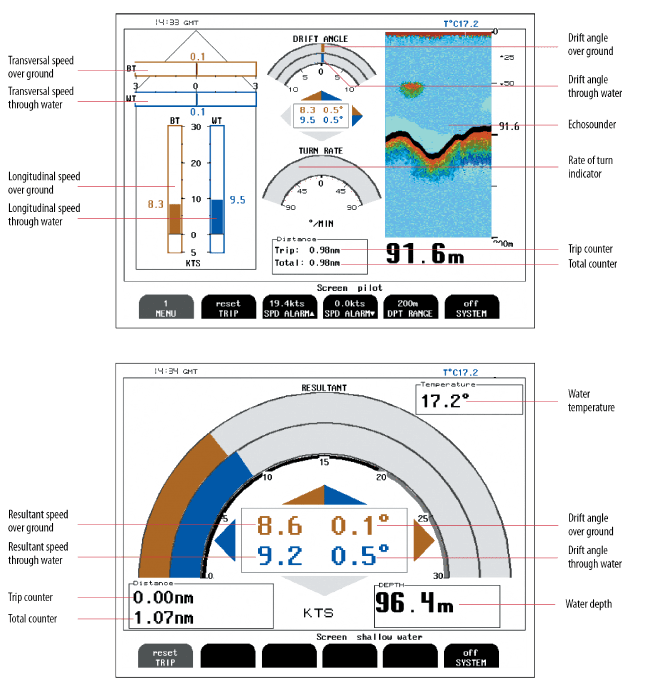

Wartsila SAM 4682 standard functions

Technical data

Power supply AC: 220 V / 110 V 50/60 Hz
DC: 20 – 40 V
Power consumption Max 100 W
Display 150 x 200 mm (10.4 inch) Colour LCD screen with adjustable backlight
Main cabinet colour RAL 9005
Memory For retaining operational settings
Speed range ± 40 kts in both axis
Bottom lock 1 – 150 m
Water track Less than 3 m below transducer
Frequency 270 kHz / beam width 3 x 5,5°
Output power 50 W / element adjustable
Accuracy 1% of speed or 0,1 kn whichever is greater
Outputs – 3 x Analogue 0 – 10 V and 4 – 20 mA
– 2 x NMEA 0183 / RS 232 / RS 422
– 3 x 10 / 100 / 200 / 400 / 1000 pulses per Nm
– Alarm relay output
– VGA, for Remote Display
Inputs – From transducer (speed, depth and temperature)
– NMEA 0183 / RS 232 / RS 422
– Built-in test simulator
Languages English, French, German, Spanish, Russian, Norwegian
Classification IMO / DNV
Echosounder*
Range Max. 100 m
Frequency 270 kHz
Output power 100 W adjustable
Measuring accuracy Better than 2,5%
Depth alarms Depth and shallow limits
