Auto Pilot PR2000 Tokyo Keiki

- Advertisement -

This best-selling model has been installed in over 15,000 small and medium vessels including fishing boats, coastal craft, and merchant ships, and is renowned for its stable performance and ease of use.

  • Designed for operational simplicity.
  • More affordable, with improved course holding ability.
  • Variety of system configurations (stand-alone model, GYLOT model, console model).
  • Compatible with a variety of steering systems.

The PR-2000 series autopilot, widely regarded as a system with stable performance and easy-opearation for fishing boats, coastal vessel and merchant ship, has long enjoyed great popularity among all users, with more than 17000 units sold over.

Those PR-2000 series progressed to new series coupied with modeled ES gyro-compass with various options and our downsized new steering gear system.

It is available in a stand type which is connected with a separately installed gyro compass or magenetic compass, and a GYLOT type which combines gyrocompass and autopilot into a single system, and a console type integrating gyrocompass, radar made by TOKIMEC and all other necessary nautical equipment is alson available. In addition, it is possible to connect with steering gear unit made by TOKIMEC or other manufctures. This wide choice range permits the user to select the type best suited to all of the ships.
The new PR-2000 series becomes to be easy to use and helps your safety and economical voyage.

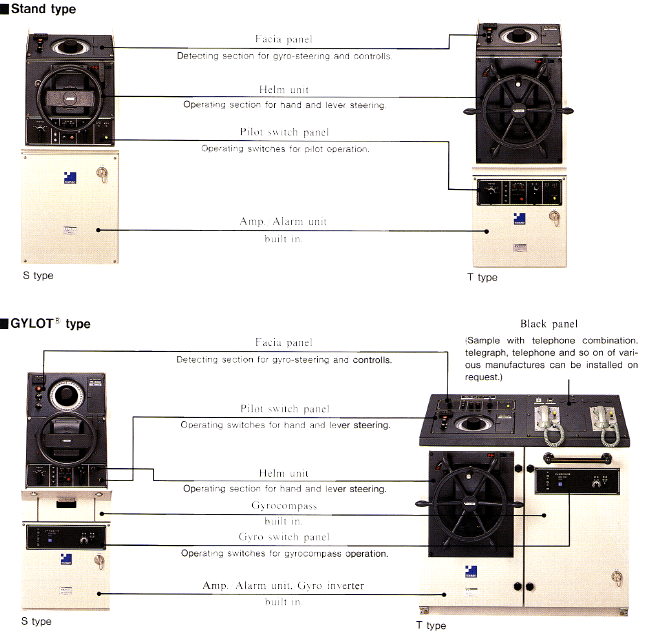

Auto Pilot PR 2000 Type
Auto Pilot PR 2000 Type

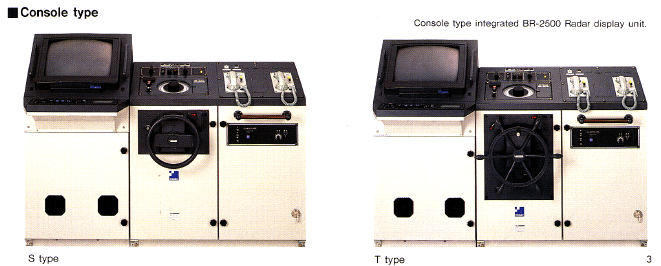

Auto Pilot PR 2000 Console Type
Auto Pilot PR 2000 Console Type

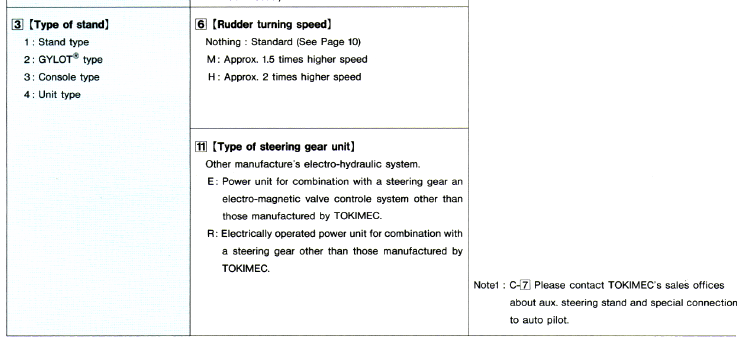

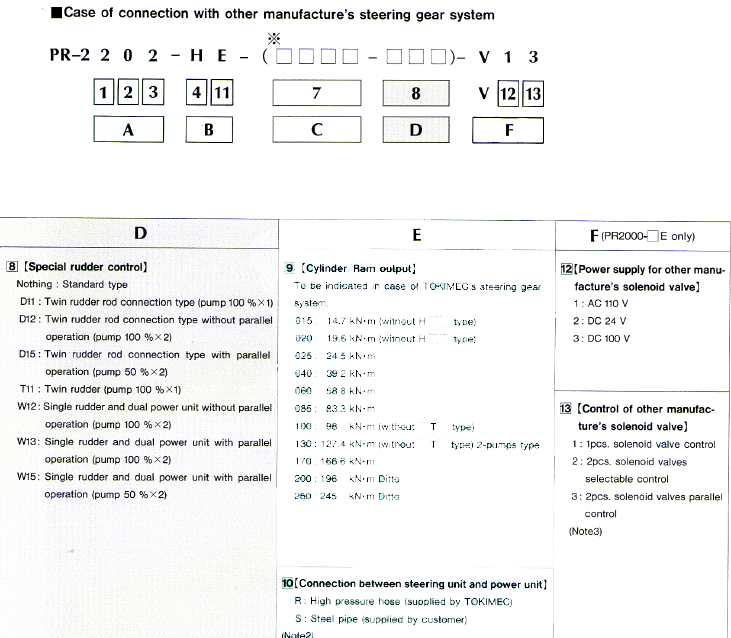

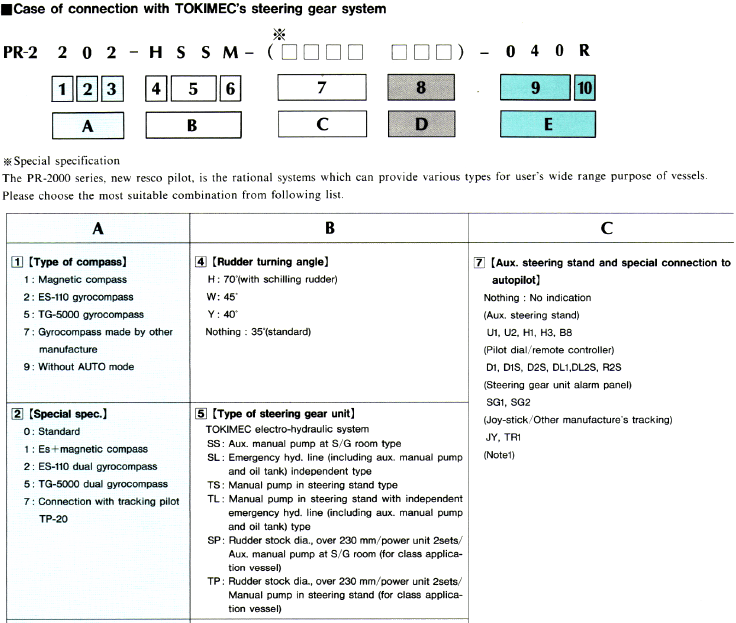

MODEL CODE BREAKDOWN

Model Code Breakdown
Model Code Breakdown

Model Code Breakdown
Model Code Breakdown

Model Code Breakdown
Model Code Breakdown

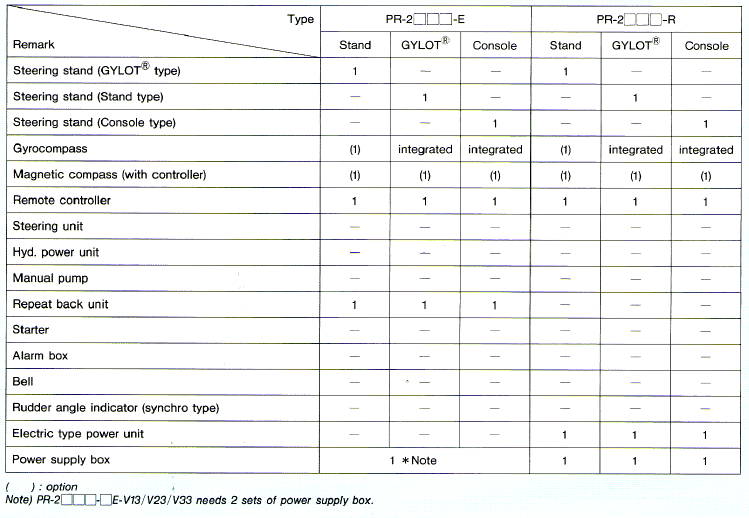

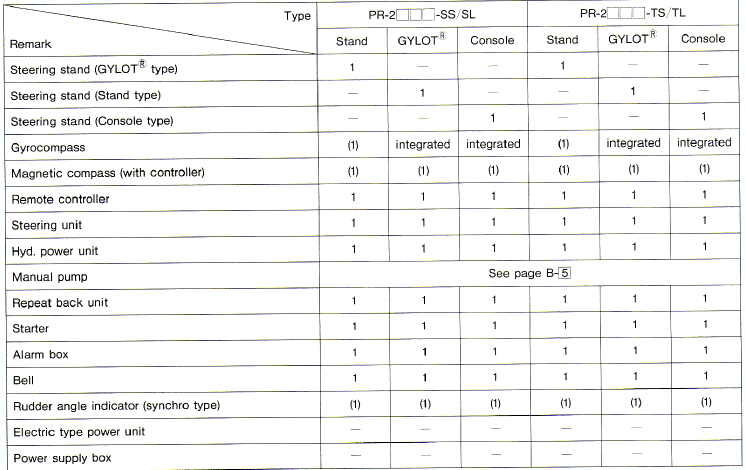

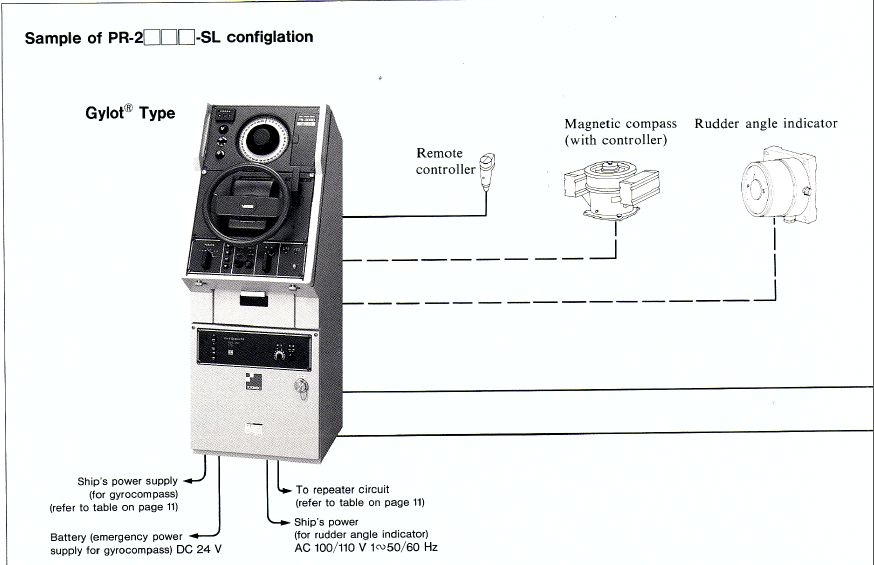

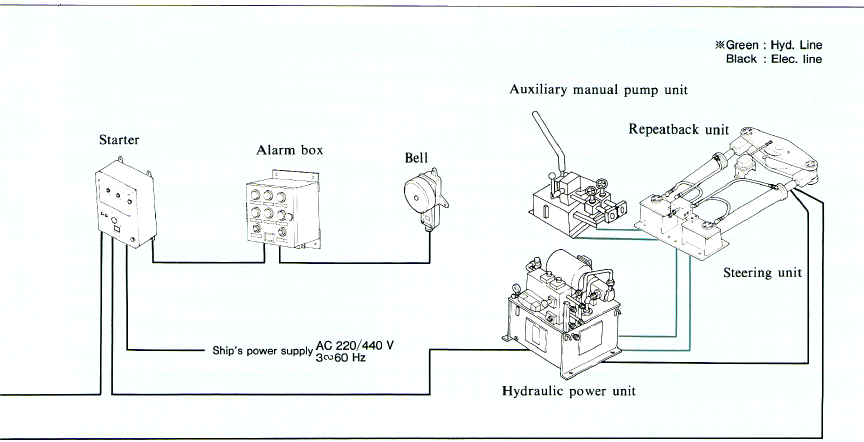

CONFIGURATION

CONFIGURATION
CONFIGURATION

CONFIGURATION
CONFIGURATION

CONFIGURATION
CONFIGURATION

CONFIGURATION
CONFIGURATION

SPECIFICATION

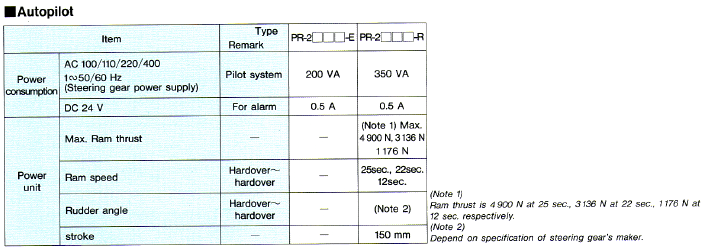

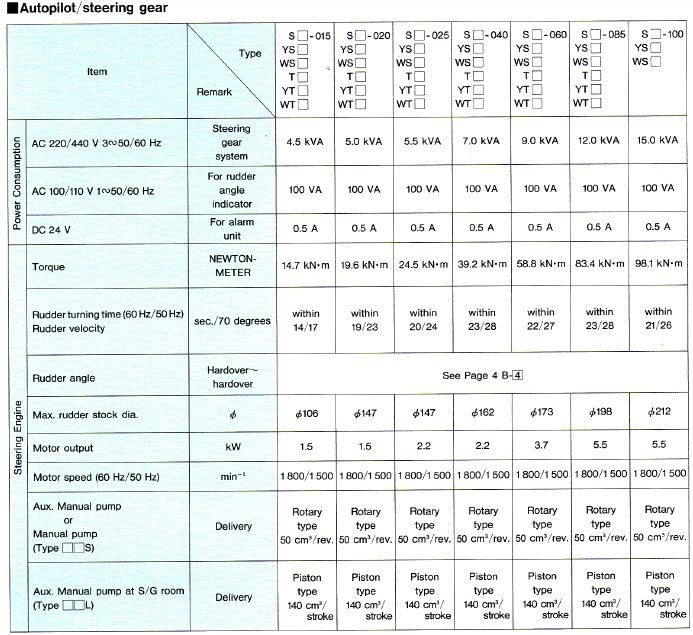

Auto Pilot Specification
Auto Pilot Specification

Auto Pilot Specification
Auto Pilot Specification

DIMENSION

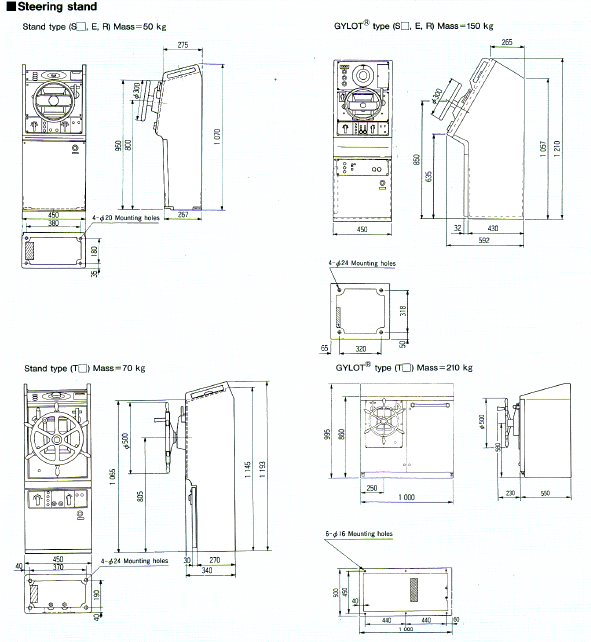

Steering Stand Dimensions
Steering Stand Dimensions

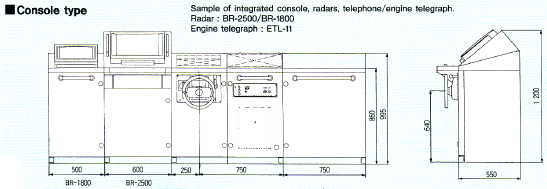

Console Type Dimension
Console Type Dimension



Read more : Auto Pilot PR 9000
