Scanning sonar type KCS-3000/KCS-3500 for fishery

Scanning sonar type KCS-3000-KCS-3500 for fishery

Even a compact size brings satisfaction to your fishing

Low and medium frequency with new functions enables greater detection and cost performances.

  • One touch memory keys to recall suitable settings for your fishing style and conditions.
  • High precise LCD monitor and easy handling remote controller provides luxury in bridge.
  • Hull unit guide ring offers safety and toughness.
  • Integrated transmitter and receiver unit offers space saving and easy mounting.
  • Full screen, multi, audio, fish finder screen; Various kinds of display mode.
  • High maintainability and sturdy transducer with a unique dorm-structure.

Compact and cost-effective sonar

The transmitter and receiver units have been integrated into one as a TX/RX unit and have been down-sized for cost effective and space-saving purposes. The high quality and reliability hull unit with a pressure release guide ring is compact ; It is the smallest type with is total length being less than 2m, and can be used as a 2nd supplementary sonar system in large fishing vessels as well as in midlle and small sized fishing vessels.

Hull unit models

Sonar system Hoist Type Memo Stroke Total Length Skirt Project Weight
KCS3000 TYPE M-94C-1 LL 1350 3510 1650 1250 630
L 1000 2810 1300 900 600
KCS3500 TYPE M-97C LL 1000 2880 1400 950 450
L 600 2350 1300 550 430

Performances as if super sonar

The low frequency sonar (KCS-3000) provides a greater detection range the same as our super sonar and the middle frequency sonar (KCS-3500) provides a high resolution like that of our high frequency sonars. These two models are available depending on your fishing style, fishing ground and target fish.

Multiple display mode

Horizontal screen can be chosen from display mode of normal, full, and multi screen.

By using off-center function of normal and multi screen, own boat direction can move all around, In others following selections are available : (1) fish-finder screen showing fish finder signal on the side of horizontal screen and (2) audio screen showing sonar picture of audio direction in time series.

Multiple display mode
Multiple display mode

Compact and easy-to-use remote controller.

Your favorite maximum 10 different sonar setting patterns can be memorized in the (sonar memory) function, which enables you to recall suitable sonar setting for different fishing grounds and fish target easily with one touch finger operation. The standard normal sonar setting is already memorized in the 11th memory as the default setting which is protected from over-writing, and therefore the standard normal setting can be recalled anytime whenever needed. Five preset keys and a maximum of 8 screen memory keys are for frequent use menu registration.

Reliable and tough transducer

A pressure-release guide ring introduced for all of our hull unit as standard option reduces swaying and shaking of the transducer. Our uniquely designed enclosed transducer projecting out into the sea water ensures easy maintenance and toughness.

Specification of KCS-3000/KCS-3500

Display section :

PPI image by TFT liquid crystal color display

Frequency :

KCS-3000 C: 24kHz

KCS-3000 D: 28kHz

KCS-3500 G: 43kHz

KCS-3500 H: 50kHz

Display resolution :

SXGA (1280X1024)

Display colors :

Sonar image -32-color display

Character -4-color display

Marker -2-color display

Display modes :

Head-up, north-up, and true motion (*External signal are necessary)

Additional modes :

off-center (enlarged 1.5 times in a desired direction)

Simultaneous screen modes :

Full screen, multiple screen, audio image, fish finder image.

Ranges :

Any 10 ranges can be selected out of 150, 200, 300, 400, 500, 600, 700, 800, 900, 1000, 1200, 1400, 1500, 1600, 1800, 2000, 2500, 3000, 4000 and 5000.

The range is enlarged 1.5 times for off-center.

Receiving method :

Super heterodyne method, real-time beam method, and forming method

Transmission method :

OMNI transmission

Audio frequency :

800 Hz

Tilt angle range :

3′ upward-60′ degrees downward

Beam (at-3dB) :

Transmission-Horizontal 360’x10′

Receiving-Horizontal 14’x12′

Additional functions :

Interference elimination, signal processing, clutter, TVG, AGC, memory card, and auto tilt angle functions.

Display marks :

Own boat mark, wake mark, cross-line cursor, event mark (max. 10 event marks), north mark, direction mark, cast-net mark, tidal current mark and other marks. (*Some marks are displayed only when external signals are input).

External signal input :

NMEA 0183 Four inputs available with NMEA 0183, while Kaijo’s devices are connected for 2 inputs.

NMEA 0183 Own boat position, boat speed, boat speed bearing, seabed depth, sea water temperature, and bow bearing.

Kaijo’s devices :

IF-17 and GC-21

Hoist unit stroke : (KCS-3000)


Hoist unit stroke : (KCS-3500)


Power supply : (KCS-3000)

Processing Single-phase 100-200VAC, 50/60 Hz, and 400VA.

Receiving Single-phase 220VAC, 50/60 Hz, and 600VA

Sending Single-phase 220VAC, 50/60 Hz, and 300VA.

Hoists unit 3-phase 220VAC, 50/60 Hz, and 1500VA.

Power supply : (KCS-3500)

Processing Single-phase 100-200VAC, 50/60 Hz, and 400VA.

Receiving Single-phase 220VAC, 50/60 Hz, and 600VA

Sending Single-phase 220VAC, 50/60 Hz, and 300VA.

Hoists unit 3-phase 220VAC, 50/60 Hz, and 1500VA.

Measurement (WxHxD) & Weight :

1-125 LCD, 477mmx450mmx210mm, 14 Kg

RC-17 Remote Controller, 246mmx158mmx46mm, 1 Kg

PRC-52 Processor, 280mmx450mmx388mm, 21 Kg

SR-62 TX/RX Unit (KCS3000), 600mmx697mmx450mm, 97Kg

SR-65 TX/RX Unit (KCS3500), 600mmx697mmx450mm, 97Kg

P-79B Power Box, 215mmx335mmx153mm, 12 Kg

M-94C-LL Hoist (KCS3000) (With T-118 Transducer), 690mmx3510mmx714mm, 550Kg

M-97C-LL Hoist Unit(KCS3000) (With T-122 Transducer), 600mmx2880mmx530mm, 280Kg

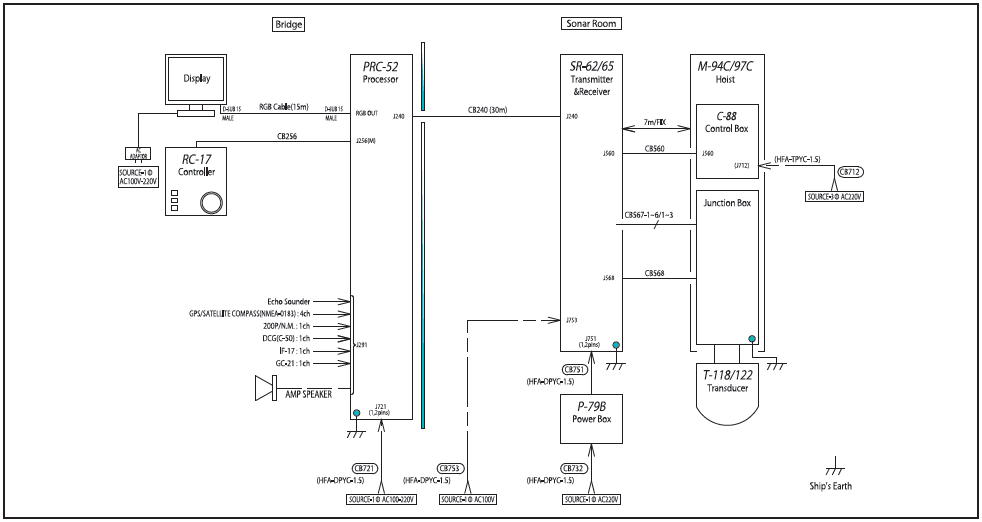

Scanning sonar type KCS-3000/KCS-3500 for fishery diagram
Scanning sonar type KCS-3000/KCS-3500 for fishery diagram
