Perfect for Sailing, Cruising or Fishing
Our most advanced and versatile instrument display
The stylish Raymarine i70 instrument display is packed full of powerful features but remains very easy and slick to use. The large 4″ LCD screen gives superb visibility at distance and acute angles.
Key Features
- 4″ over-sized LCD display with 160º viewing angles.
- 43mm digits in full screen mode.
- Anti-reflective coating for improved visibility in bright sunlight.
- LightHouse user interface is simple and quick to use.
- AIS repeater and display of AIS targets.
- Data views include: Wind, Speed, Depth, Tridata, Engine (NMEA 2000), Environment (NMEA 2000), Fuel (NMEA 2000) and Navigation.
- Low power – typically 132mA/ 1.6W.
Intuitive LightHouse User Interface
LightHouse intuitively places frequently used navigation functions right at your fingertips. The LightHouse user interface is consistent with Raymarine multifunction displays, so once you are familiar with i70 you’ll be at home with Raymarine MFDs too.
Networking
Raymarine i70 seamlessly integrates with NMEA 2000 using SeaTalk and SeaTalkng marine networks. User-selectable data sources allow integration on multi-sensor networks.
AIS Repeater
Display AIS targets from NMEA 2000 AIS receivers. View the closest 25 AIS-equipped vessels and select individual targets to obtain vessel information.
Converting Analogue to Digital.
Pair i70 instruments with the iTC-5 instrument transducer converter for seamless integration with analogue depth, wind, speed, compass and rudder transducer.
Customization
The Raymarine i70 instrument is easily customized to suit your personal boating requirements. From traditional analogue dials to engine information and tank levels, i70 has the capabilities to show it all.
Raymarine i70 Instrument Display Specifications
| ITEM | GENERAL SPECIFICATIONS |
| Dimensions |
|
| Nominal Voltage | 12 V dc |
| Voltage Range | 10.7 to 16 V dc |
| Power Consumption | 1.6 Watts |
| Mounting method | Front Mounted and circular cut |
| LCD Brightness | 700cd/m2 |
| Display | TFT LCD 16 bit color (64K colors) 320 x 240 pixels |
| Color palettes | Four color pallettes- two day, inverse and red/black |
| Operating Temperature | -25° to 55 °(-13° F to 131° F) |
| Storage Temperature | -30° to 70° (-22°F to 158 °F) |
| Relative Humidity and Waterproofing | 93% max and IPX6 |
| Connections | SeaTalkng (x2)°- compliant with NMEA2000 and SeaTalk specifications Compatible with marine industry CAN systems |
| Conformance | Europe 2004/108/EC Australia and New Zealand C-Tick compliance level 2 |
| Languages | Extensive Language support: 20 languages available |

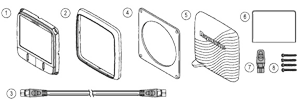

| In the Box |
|
| Number | Description |
| 1 | i70 Instrument |
| 2 | Front Bezel |
| 3 | SeaTalkng Spur Cable |
| 4 | Gasket |
| 5 | Suncover |
| 6 | Documentation Pack |
| 7 | SeaTalkng blanking plug |
| 8 | 4 x fixing screws |
Raymarine i70 Instrument Ordering Information
| Part No. | Description |
| Instruments | |
| E22172 | i70 Multifunction Color Display |
| Instrument Packs | |
| T70216 | i70 System Pack (Color Instrument & Wind, DST transducers), iTC-5, 3m backbone, T-piece, power & 2 backbone terminators |
| T70226 | i70 System Pack (Color Instrument & Wind, DST transducers), iTC-5, 9m backbone, power, 1 backbone & 1 inline terminator |
i70 Parts and Accessories
| Part No. | Description |
| R22168 | i70 / p70 / p70R Bezel |
| R22169 | i70 / p70 Sun Cover |
| R70044 | i70 Keypad |
