Wide Angle Piston Type Steering Gear

0
201
Wide Angle Piston Type Steering Gear

Outline

A Solenoid Valve Operated Wide Angle Electro-Hydraulic Steering Gear (JH Steering Gear) is capable of steering a rudder to such wide angle as 700 port and 700 starboard, and is optimum for making a Schilling Rudder exhibit its specific character.

A JH Steering Gear has performance accordant with torque requirement of Schilling Rudders.

A JH Steering Gear employs hydraulic pumps of constant discharge, inscribing gear type, and hydraulic cylinders of double-acting piston type.

The Steering Gear is controlled by solenoid operated valves, and hence construction is extremely simple and operation is easy.

The Steering Gear is compactly designed, and excellent in terms of high control accuracy and good respond ability.

The Steering Gear is so constituted that an installation error can be absorbed by spherical bearings adopted for joint parts.

The Steering Gear has been approved by major Classification Societies.

The Steering Gears have been installed on board of variety of ships, and gain public favor.

The Steering Gears can be easily connected to any steering system and automated system, and operate very efficiently.

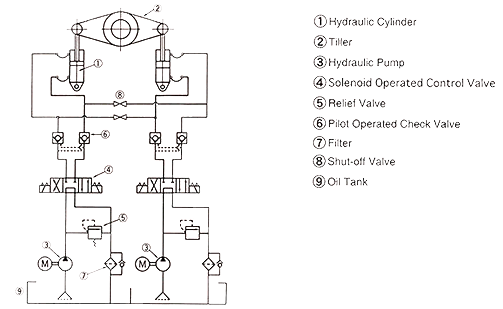

HYDRAULIC CIRCUIT

Hydraulic Circuit
Hydraulic Circuit

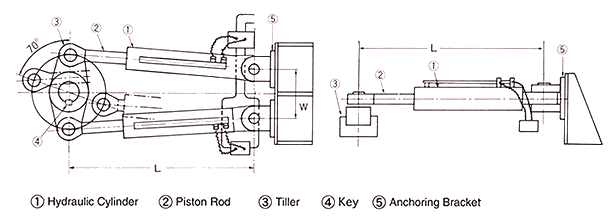

GENERAL ARRANGEMENT

General Arrangement Type Steering Gear
General Arrangement Type Steering Gear

SPECIFICATIONS

ModelJH3JH7JH10JH12JH17JH22JH30
Torque at 40anglet-m371012172230
Max.rudder angleDegree70°×2
Rudder speedSec18/35°-30°(28/35°-30°)
Radius of actionmm270360470630
Piston diametermm100140160180
Piston rod diamm658590100
Rated hyd. pressurekgf/cm2170160168148168188168
Relieving pressurekgf/cm2220200210185210235210
MotorNormally 1 pumpKW3.75.57.57.5111518.5
Normally 2 pumps2.22.23.73.75.57.511
Widthmm360480670840
Lengthmm1255135515901735204021852700
