Marine Rubber Fender type CMR-A Super Cell

0
250
CMR-B Super Cell Rubber Fender
CMR-B Super Cell Rubber Fender for marine

CMR-A Super Cell Rubber Fender

1. High E/R.H(energy absorption/reaction force. product height) Value.

Compare with general cell rubber fenders, YGCH super cell rubber fenders have 15% higher E/R.H value. The general cell rubber fender has 0.375~0.385 E/R.H, while the super one has 0.43~0.44 normally.

SpecificationsRated Deflection%Reaction ForceEnergy AbsorptionE/R.H
CMR-A125052.56963820.439
G125047.5695.5333.50.384
CMR-A200052.5178015640.439
 CMS G200047.51746.21334.20.382

2. More Reasonable Structure.

Compare with normal rubber fender, YGCH super cell rubber is more reasonable in the structure design. A smooth joint is adopted between the fender buffer and flange to reduce the stress concentration in fender bottom during the deflection, which result in more reasonable force dispersion, furthermore the deflection value of the fender is increased to 52.5% from the normal 47.5%.

3. super cell rubber fender has the same installation bolt pitch and bolt holes with the general rubber fender.

4.  Minor affection in angular berthing.

Spesification :

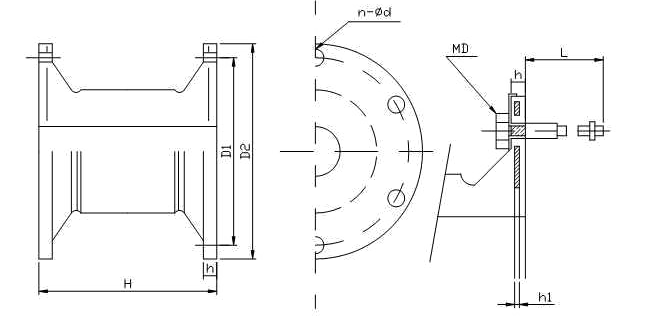

CMR-A Super Cell Rubber Fender drawing

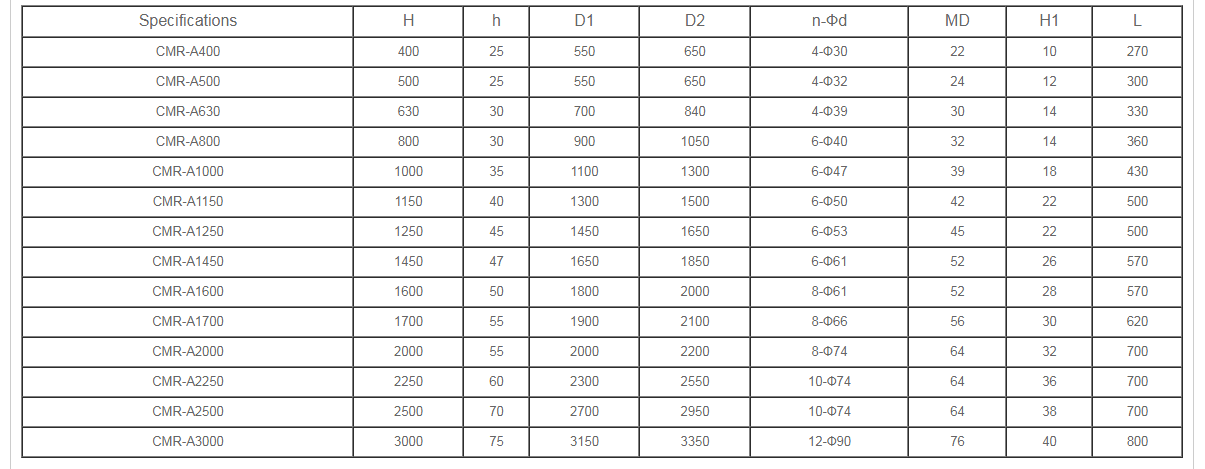

CMR-A Super Cell Rubber Fender SpecificationCMR-A Super Cell Rubber Fender Specification

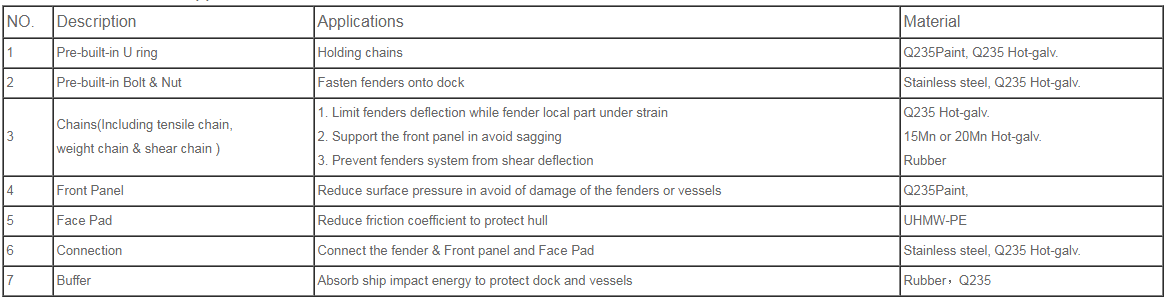

Main Accessories and Applications :

Accessories and applications
Accessories and applications
